Tech Lighting 700OWAST Series Installation Instructions

Installation Instructions for
Aspenti 5, 14, and 20 Outdoor
G ENERAL RODUCT NFORMATION P
These fixtures are intended to be installed utilizing
NEC compliant junction boxes.
This product is suitable for wet locations.
This product may be dimmed with a low-voltage electronic dimmer.
This instruction shows a typical installation.

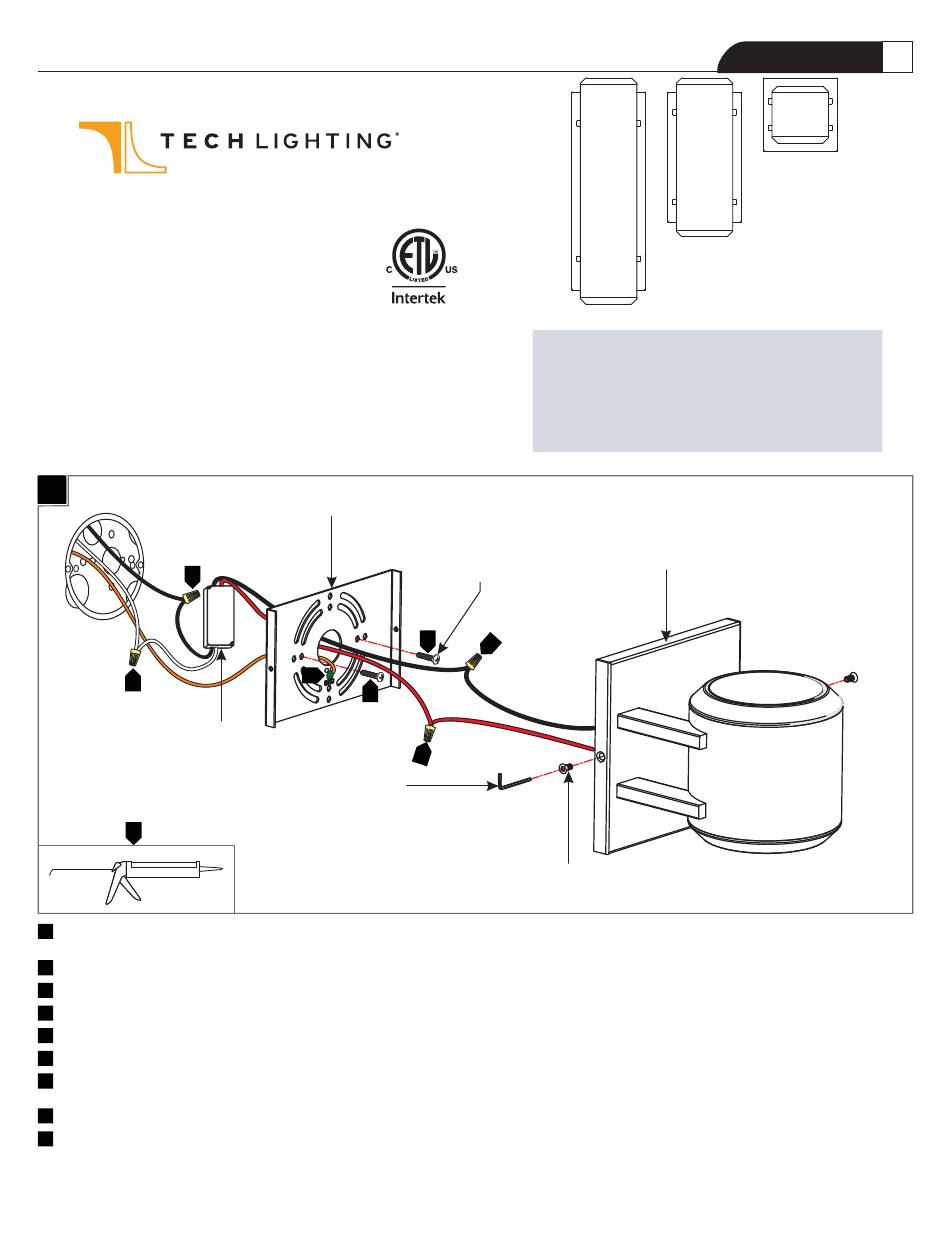

Install the Fixture

1A
6
5
DRIVER
9
1 Remove the fixture screws located on the sides of the fixture base using the provided Allen Wrench, then remove the mounting plate from
the fixture base.
Connect the fixture to a suitable ground in accordance with local electrical codes.
2
Connect the black fixture wire to the black driver wire with a wire nut.
3
Connect the red fixture wire to the red driver wire with a wire nut.
4
Connect the white driver wire to the neutral power line wire with a wire nut.
5
6 Connect the black driver wire to the hot power line wire with a wire nut.
Properly place the driver, all wires, and wire nut connections into the electrical box, then secure the mounting plate to the electrical box
7
using the two #8-32 screws provided.
8 Mount the fixture back onto the mounting plate and reinstall fixture screws (reversal of step 1A).
For wet locations, caulk around the entire fixture base with waterproof construction sealant.
9
OUTDOOR
I :
MOUNTING PLATE
2
7
ALLEN WRENCH
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
#8-32 SCREW
7
3
4
FIXTURE SCREW
1
700OWAST_
CAUTION RISK OF FIRE -
FIXTURE BASE
920OWASPENT
