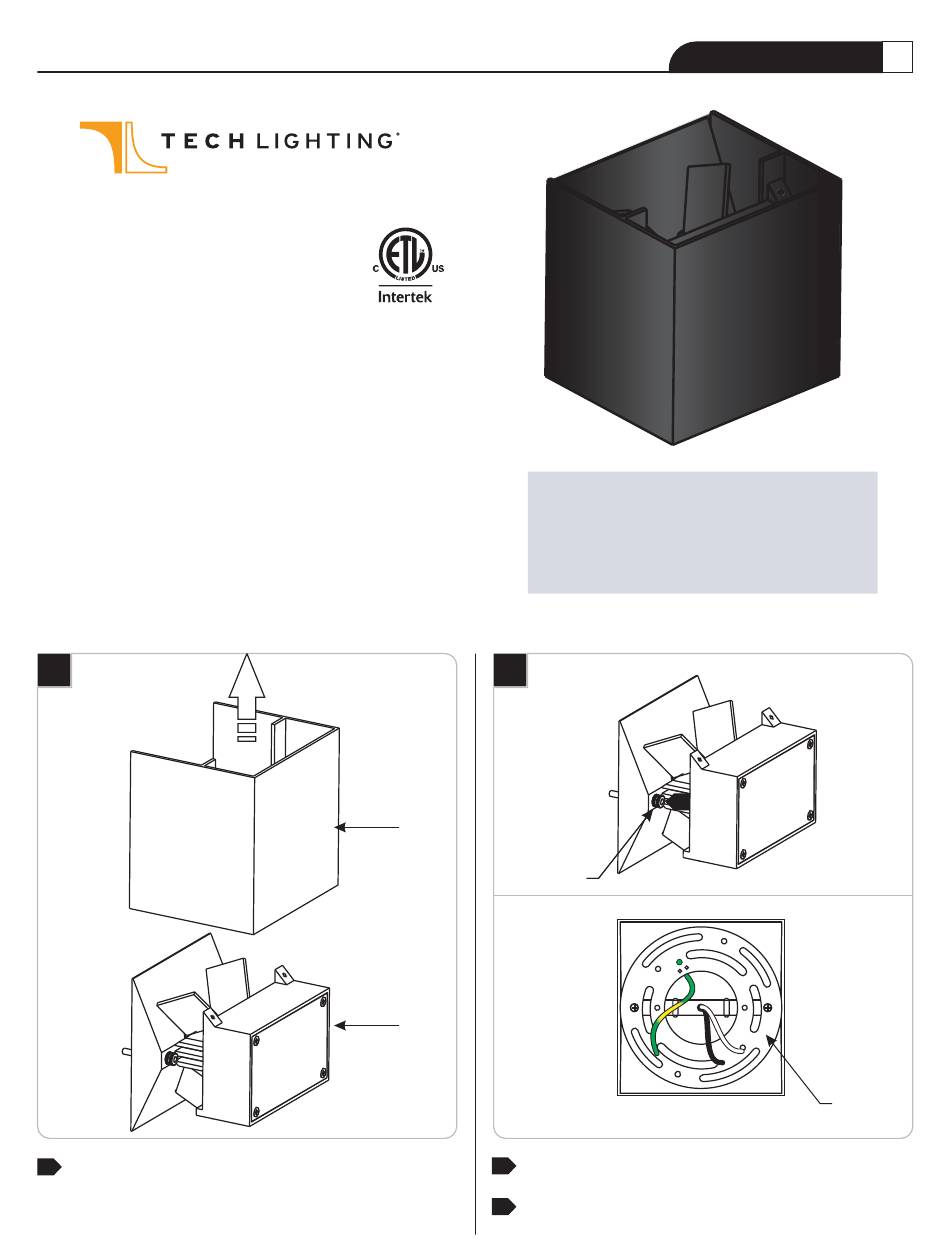

Installation Instructions for
Vex Outdoor Wall
G
ENERAL RODUCT NFORMATION
P
I
These fixtures are intended to be installed
utilizing
NEC
compliant junction boxes.
This product may be dimmed with a low-voltage electronic
dimmer or a 0-10V dimmer depending on the wiring
configuration.
Suitable for wet locations.
Install the Fixture
1A
Slide the cover off of the fixture.
1
OUTDOOR
:
COVER
FIXTURE
CAUTION RISK OF FIRE
This product must be installed in accordance with
the applicable installation code by a person familiar
with the construction and operation of the product
and the hazards involved.
Use minimum 90°c supply conductors.
1B
KNURLED NUT
2
Unscrew and remove the knurled nuts.
3
Remove the mounting plate from the back of the
fixture.
1
920OWVEX
700
OWVE
X_-
LED
-
2
MOUNTING
PLATE
1.0
Advertisement
Related Manuals for Tech Lighting Vex Outdoor Wall
Summary of Contents for Tech Lighting Vex Outdoor Wall
- Page 1 Installation Instructions for 920OWVEX Vex Outdoor Wall OWVE OUTDOOR ENERAL RODUCT NFORMATION These fixtures are intended to be installed utilizing compliant junction boxes. This product may be dimmed with a low-voltage electronic dimmer or a 0-10V dimmer depending on the wiring configuration.
- Page 2 #8-32 SCREW THREADED STUD THREADED STUD KNURLED NUT THREADED STUD ELECTRICAL BOX #8-32 SCREW Neatly tuck all wires and wire nut connections into the electrical box, mount the fixture onto the threaded studs, and secure it in place by screwing the knurled nuts onto the studs.
- Page 3 Adjust the Fixture ANGLE MARKERS COVER ALLEN WRENCH ALLEN WRENCH SET SCREW & SET SCREW DRIVER HOUSING NOTE: The angle markers can be adjusted independently. Open Make sure the sealant is dry before reinstalling the cover. and close the angle markers on the top and bottom of the fixture to the desired beam angle.
- Page 4 60077 847.410.4400 www.techlighting.com © 2017 Tech Lighting, L.L.C. All rights reserved. The "Tech Lighting" graphic is a registered trademark of Tech Lighting, L.L.C. Tech Lighting reserves the right to change specifications for product improvements without notification. A Generation Brands Company...
