7.2.1

To change input sensitivity

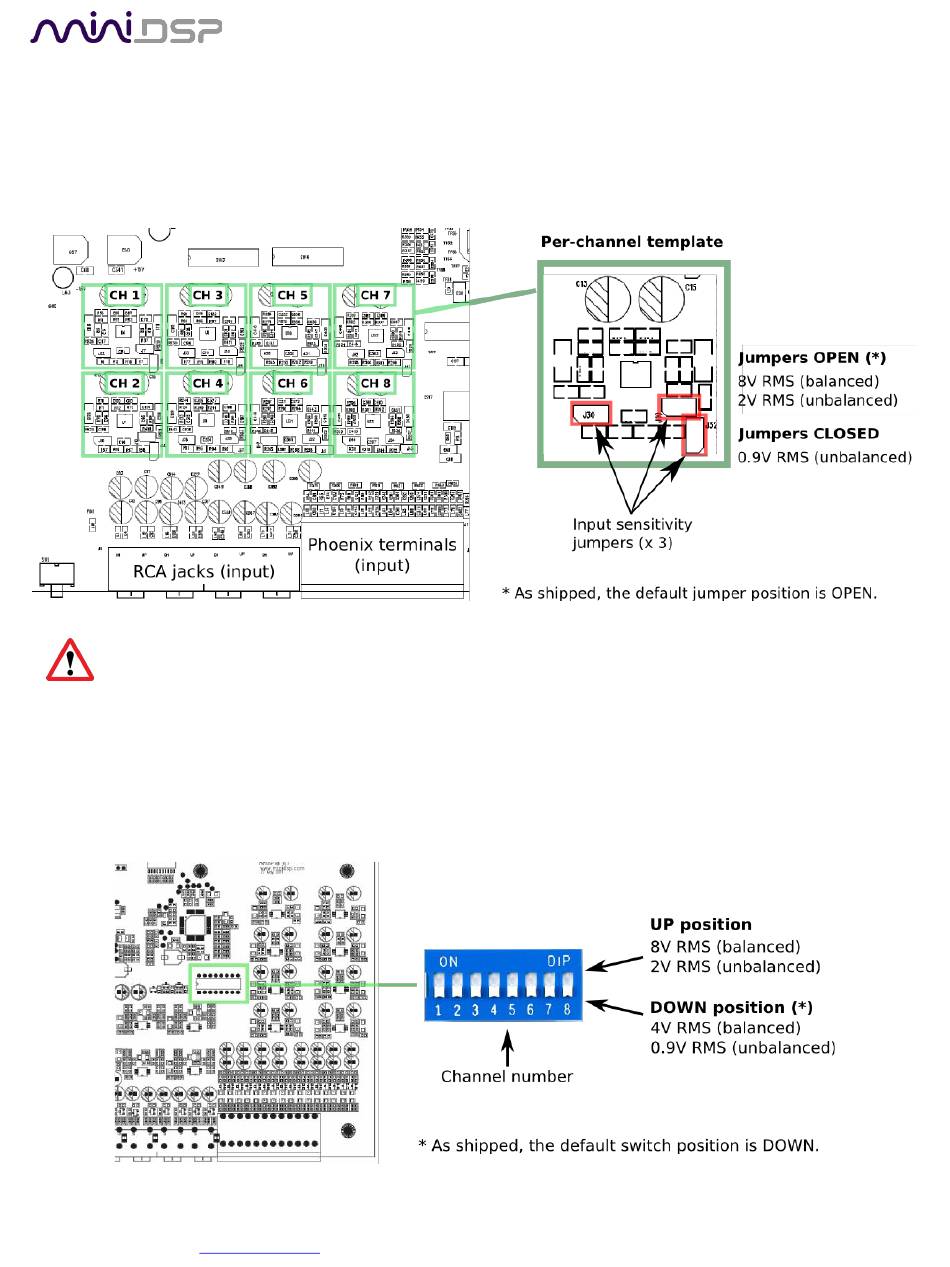

Input sensitivity can be changed for unbalanced connection only, by moving a set of three jumpers on each
channel. The diagram below illustrates the location of the jumper headers for each channel. For each channel
that is to be changed, lift the jumpers and replace them in either the OPEN position (jumper pushed onto one
pin only) or CLOSED position (jumper pushed onto both pins).
Do not make a balanced connection to the input of any channel with jumpers in the CLOSED position.
7.2.2

To change output gain

A set of eight DIP switches located on the main circuit board select the output gain of each channel. The
switches can be set independently for each channel, and affect output gain for both the balanced and
unbalanced output connections to that channel.
