MDA 4V EQ • Setup Guide
The Extron MDA 4V EQ is a compact mini distribution amplifier available
with composite video and with individual output gain and equalization
controls that compensate for different cable lengths for each output.
The MDA 4V EQ products are also line drivers, able to equalize signals
sent over 1000 feet (300 m) of Extron Mini High Resolution cable.
This guide provides basic instructions for an experienced installer to set
up this distribution amplifiers for operation.

Installation

1. Turn off and disconnect all equipment from the power source.
2. If desired, mount the MDA 4V EQ on a standard or 6 inch deep rack shelf, a projector mounting pole, or on furniture (see the
Extron website for mounting options).
3. Connect a composite video source device to the Input connector.
4. Connect one or two video output devices to the composite video
output connectors.
(Optional) Connect a monitor to the Loop-Thru connector for
5.
passive loop-through.
6. Set the termination toggle switch:
If a monitor is connected to the Loop-Thru connector, set the
•
switch to High Z (up).
If no monitor is connected, set the switch to 75 Ohm (down).
•

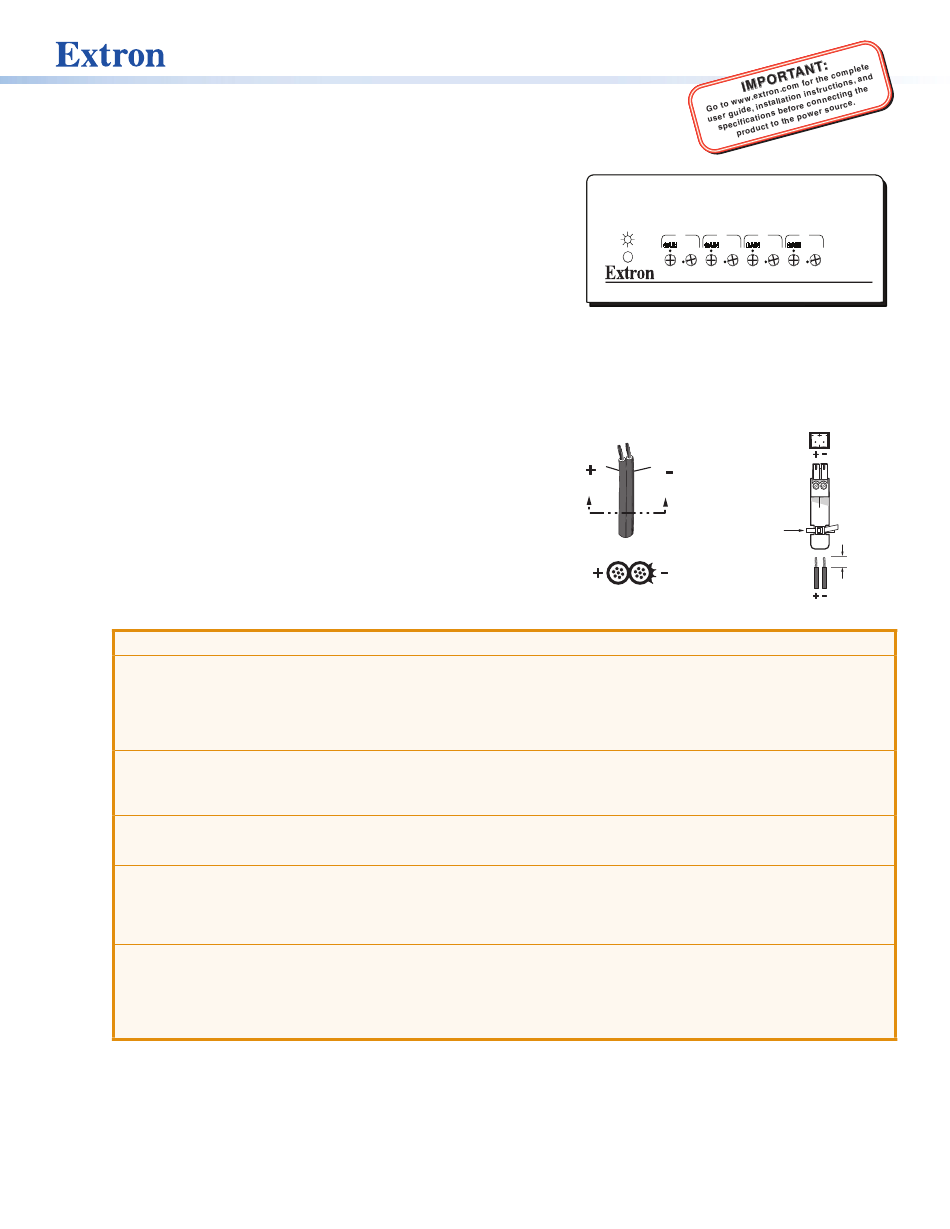

7. Wire the provided power supply as shown on the right and connect
it to the 2-pole, 3.5 mm captive screw connector.
ATTENTION:
• Always use a power supply provided by Extron for the MDA EQ series. Use of an unauthorized power supply voids
all regulatory compliance certification and may cause damage to the supply and the MDA.
• Utilisez toujours une source d'alimentation fournie ou recommandée par Extron. L'utilisation d'une source
d'alimentation non autorisée annule toute certification de conformité réglementaire, et peut endommager la source
d'alimentation et l'unité.
• The power supply must not be permanently fixed to the building structure or similar structures.
• La source d'alimentation ne devra pas être fixée de façon permanente à la structure de bâtiment ou à d'autres
structures similaires.
• Do not place the power supply within environmental air handling spaces or the wall cavity.
• Avant de connecter l'alimentation, veuillez lire attentivement les mises en garde ci-dessous.
• The installation must be in accordance with the applicable provisions of the National Electrical Code ANSI/NFPA 70,
Article 725 and the Canadian Electrical Code, Part 1, Section 16.
• Cette installation doit toujours être conforme aux dispositions applicables du Code américain de l'électricité
(National Electrical Code) ANSI/NFPA 70, article 725, et du Code canadien de l'électricité, partie 1, section 16.
• The power supply must be located within the same vicinity as the Extron A/V processing equipment in an ordinary
location, Pollution Degree 2, secured to a podium, a desk, or an equipment rack within a dedicated closet.
• La source d'alimentation doit être placée à proximité de l'équipement Extron dans un emplacement ordinaire soumis
à un degré de pollution de catégorie II, solidement fixé au rack d'équipement d'une baie technique, d'un pupitre, ou
d'un bureau.
8. Connect power cords to the input and output devices and turn on all equipment.
1 2
GAIN EQ GAIN EQ GAIN
VIDEO DISTRIBUTION CONTROLLER
Smooth
Ridges
A A
Power Supply
Tie Wrap
Output Cord
SECTION A–A
3 4
EQ GAIN EQ
0.3" (7 mm) MAX
Orange Captive Screw
Connector
1
