Benchmark MyTemp Mini CO2 Operation Manual page 6

Serial Label
Non-Slip Rubber Feet
Do not confuse CO₂ Inlet Port and Sample Port. Tube from gas cylinder must be connected to CO
₂ Inlet Port. Sample Port is used to check the CO₂ density with an external analyzer.
2
1 4
1. Main Power Key
2. HOT/COOL LED Indicator : RED(heating) BLUE(Peltier – cooling)
3. RUN LED Indicator:
4. Alarm LED Indicator :
5. Temperature display
6. CO₂ Display
7. CO₂ Injecting Indicator
8. Temperature Set Key
9. Up & Down Key (for setting the temperature and CO2 percentage)
10. Calibration Mode Key
11. CO₂ Set Key
12. ALARM/MUTE Key: Press and hold for 3 seconds to switch Alarm on or off. (Press quickly
to temporarily deactivate the alarm)
Page 6 / 12

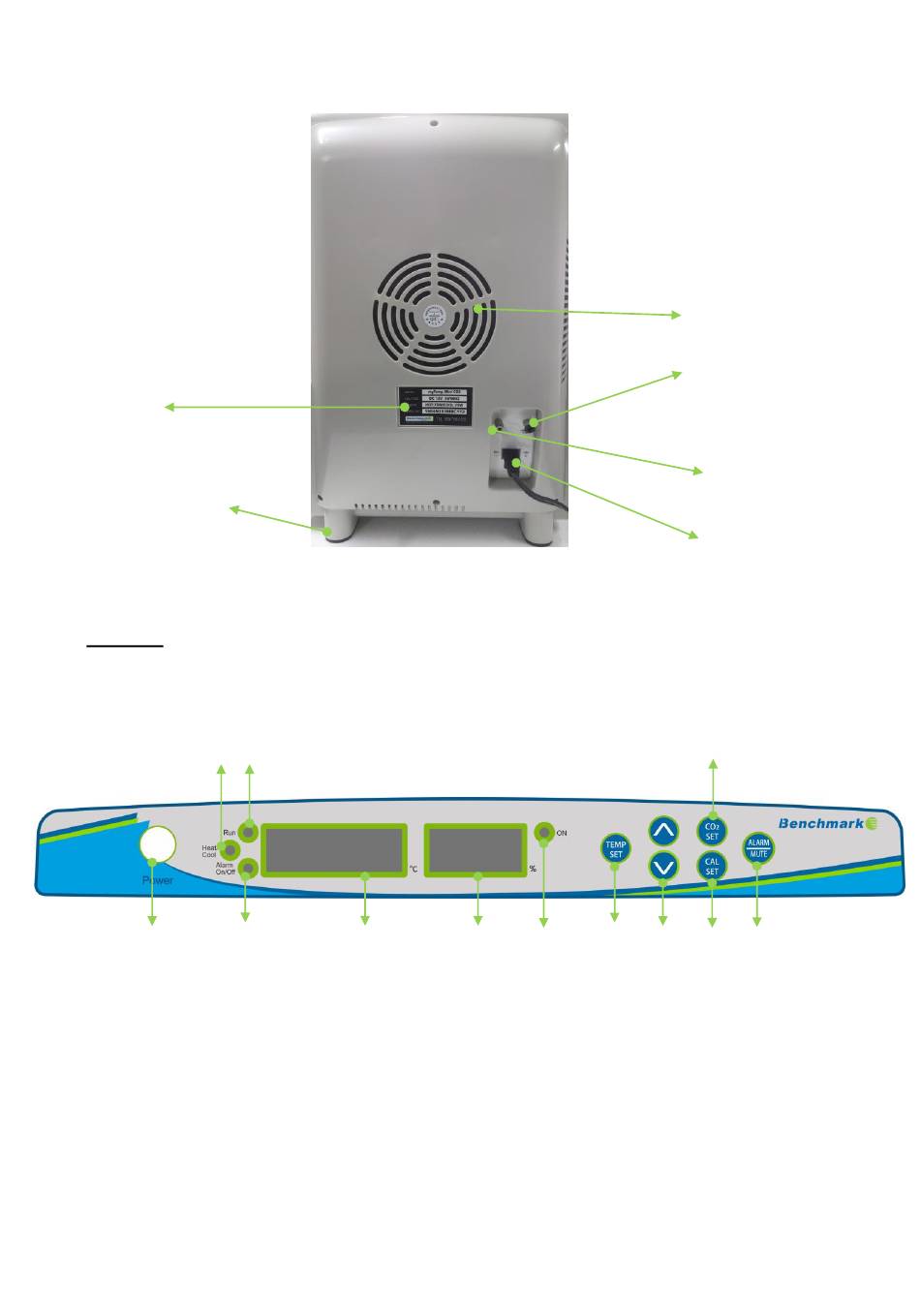

Figure 3. Back of Incubator
Figure 4. Control Panel
3
5
Normal – Slow flashing
RED – Alarm Off
6 7 8
Failed – Fast flashing
No Light – Alarm On
Ventilation Fan
CO₂ Sample Port
CO₂ Inlet Port
DC12V
Power Inlet
11
9 10 12
