Benchmark SureTemp H2505-40 Instruction Manual

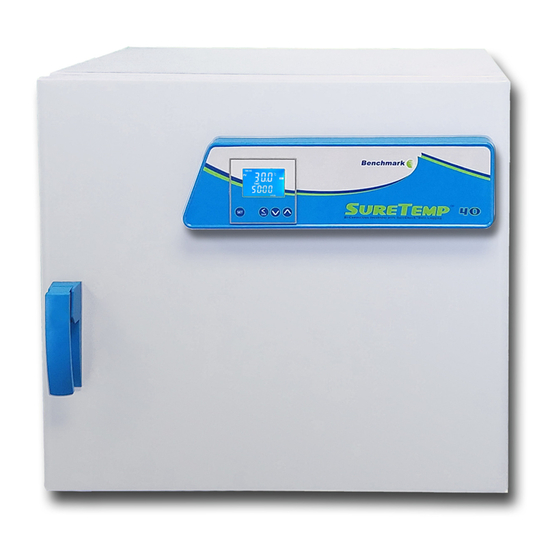

SureTemp™ Dual-Convection Incubators
Model H2505-40, H2505-70 and H2505-135 Instruction Manual
Benchmark's SureTemp Incubators are micro-processor controlled and utilize both forced air and gravity
convection technology to provide accurate and uniform temperature control. With a stainless steel
incubation chamber, removable shelves, and a built in data logger, the the SureTemp incubators are
useful for a wide variety of laboratory applications requiring temperatures of ambient +5° and 75°C.
I. Product Specifications:
Capacity: 40L 70L
Temperature Range:
Temperature Accuracy:
Temperature Stability: +/-0.1°C*
Dimensions (Internal):
(WxDxH) H2505-40 (E)
H2505-70 (E)
H2505-130 (E)
Dimensions (External):
(WxDxH) H2505-40 (E)
H2505-70 (E)
H2505-130 (E)
Chamber: Stainless Steel
Electrical: 120V or 230VAC, 50/60Hz
II. Structure:
1. incubator body
4. power supply
7. inner chamber
130L
Ambient (Room Temperature) +5° to 75°C
+/-0.25°C*
*Specifications provided at a set temperature of 37°C and the fan speed set to the "High" setting.
13.7 x 13.7 x 13.7 inch / 35 x 35 x 35 cm
17.7 x 13.7 x 17.7 inch / 45 x 35 x 45 cm
21.7 x 17.7 x 21.7 inch / 55 x 45 x 55 cm
22.7 x 23.3 x 22.8 inch / 57 x 59.2 x 58 cm
26.4 x 23.3 x 26.6 inch / 67 x 59.2 x 68 cm
30.3 x 27.2 x 30.7 inch / 77 x 69.2 x 78 cm
Warranty: 2 years
Consumption: 40L: 420W / 70L: 520 / 130L: 670W
2. controller
5.outer door
8 door button
Temperature Uniformity: +/-0.25°C*
Temperature Increment: 0.1°C
3.door handle
6. fan cover
9 Chamber shelves
42kg
62kg
70kg
