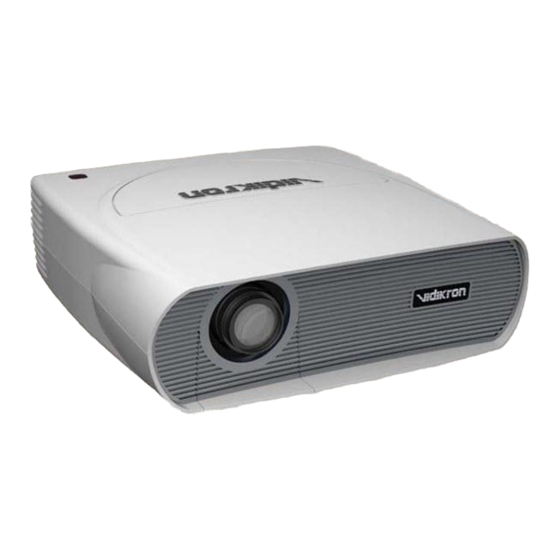

Summary of Contents for Vidikron D-ILA 80
- Page 1 D-ILA™ PROJECTOR...
-
Page 2: Table Of Contents
Table of Contents Table of Contents Introduction ... 3 Safety Precautions ... 4 Power Connection ...6 About Burning-in of D-ILA Device ...7 Viewing Conditions (Brightness of Room) ...7 Environment of Use ...7 Maintenance Procedures ...7 Warranty ... 8 Controls and Features ... 10 Projector Chassis Cover ... -
Page 3: Introduction
Model 80. Vidikron’s incorporation of three D-ILA chips result in exceptionally low noise without the fl icker and “rainbow eff ect” that often plague one-chip digital video display devices. Vidikron engineers have also paid careful attention to accu- rate gray scale tracking and true 6500K color reproduction capability. -
Page 4: Safety Precautions
FCC rule. If you are unable to insert the plug into the outlet, contact your electrician. FCC INFORMATION (U.S.A. only) CAUTION: Changes or modifi cation not approved by Vidikron could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC Rules. - Page 5 Power supply voltage: AC 120 V *DO NOT allow any unqualifi ed person to install the unit. Be sure to ask your Vidikron dealer to install the unit (e.g. attach- ing it to the ceiling) since special technical knowledge and skills are required for installation.
-
Page 6: Power Connection
Safety Precautions (continued) Power Connection WARNING: Do not cut off the main plug from this equipment. If the plug fi tted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. -
Page 7: About Burning-In Of D-Ila Device
About Burning-in of D-ILA Device • Do not allow the same still picture to be projected for a long time or an abnormally bright video image to be projected. Do not project video images with a high intensity or high contrast on a screen. -
Page 8: Two-Year Limited Warranty
(6) months or 1000 hours, which ever comes fi rst, from the eff ective date of delivery to the end user. In addition, Vidikron will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, which ever comes fi... - Page 9 IMPORTANT: WARRANTY REGISTRATION: Please fi ll out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should discover a safety problem or product update for which you must be notifi ed.
-
Page 10: Controls And Features
Controls and Features Projector Chassis Cover To Open the Projector Cover: 1. Locate the two black cover latches under the front edge. 2. Push the latches fi rmly IN toward the center of the unit. DO NOT FORCE THE TABS. It may be easier to loosen one side fi rst, then the other. -
Page 11: Connector Panel
Connector Panel 1. [SYNC OUT] Terminal This terminal is intended for servicing purposes. Do not use it. Using it may cause an error or malfunction of the unit. 2. [SERVICE] Terminal This terminal is intended for servicing purposes. Do not use it. Using it may cause an error and malfunction of the unit. -
Page 12: Control Panel On The Projector
Light On: Indicates the lamp has been used for more than 1900 hours. Blinking: Blinking: Indicates that lamp usage time (about 2000 hours) is exceeded. Please contact your Vidikron dealer to replace the lamp. 2. TEMP INDICATOR Blinking: Indicates the temperature inside the projector is abnormally high. -
Page 13: Indicator Display On The Control Panel
Indicator Display on the Control Panel In addition to the standby mode, operate mode and cool down mode*, this unit also displays other operational states using diff erent combination of indicators. • Please refer to Page 29 for explanations on warning indication for *1 and Page 32 for *2. �������������������... -
Page 14: Remote Control
Controls and Features (continued) Remote Control PRESET TEST MUTE 1. [ON] Button When this unit is in the standby mode, pressing the button for more than 1 second will turn this unit on and cause the [OPERATE] indicator to light up. 2. -
Page 15: Installing The Projector
Precautions for Installation Please read the following carefully when installing the unit. Installation Environment This unit is a precision device. Do not install it at the following places. Doing so may cause fi re or malfunction of the unit. • Where there is water, humidity or dust •... -
Page 16: Projector And Screen Installation
Installing the Projector (continued) Projector and Screen Installation The optimum image can be obtained when the center of the lens and the screen are placed perpendicular to each other. Take note of the projection angle when placing them. Failing to do so may give rise to trapezoidal distortion of the projected image. •... -
Page 17: Screen Size And Projection Distance
Screen Size and Projection Distance • This unit uses a 1.3x manual zoom lens for projection. • Although the focusable projection distance is about 4.92 ft (1.5 m) to 39.37 ft. (12 m), the projection distance recommendable for per- formance is about 6.56 ft. (2 m) to 26.25 ft. (8 m). Install this unit within this range and adjust the screen size when the aspect ratio of the screen is 16:9. -
Page 18: Eff Ective Range Of Remote Control Unit
Installing the Projector (continued) Eff ective Range of Remote Control Unit The operable distance of the remote control unit is about 23 ft. (7 m) for direct reception. The remote control can be used by having the transmission signal refl ected off a screen. •... -
Page 19: Connecting To Various Devices
It is possible to control this unit by connecting the [CONTROL RS-232C] terminal of this unit for use with control systems such as AMX or Crestron. Control codes can be found on page 36. For details, please consult your Vidikron dealer SYNC... -
Page 20: Connecting The Power Cord (Supplied)
Connecting to Various Devices (continued) Connecting the Power Cord (supplied) After all devices have been connected, connect the supplied power cord. 1 Connect the supplied power cord to the power input terminal of this unit 2 Insert the main plug of the supplied power cord into the wall outlet Cautions Against Fire and Electric Shock •... -
Page 21: Basic Operation
If setup for this unit is not completed, please refer to “Adjustments and Settings Using Menus” (Pg. 23) upon turning on the power and perform the required settings accordingly. Once the basic setup is completed, this unit can be used by simply performing the following operation procedures. -
Page 22: Hiding The Image Temporarily
Basic Operation (continued) Hiding the image temporarily Press [MUTE] • The displayed image will disappear. • Press [MUTE] again to restore the image. Turning on the power Press the [POWER] button on this unit (or the [OFF] button Press the [POWER] button on this unit (or the [OFF] button on the remote control) for 1 or more seconds. -
Page 23: Adjustments And Settings Using Menus
The menus displayed on the screen are used to perform adjustments and settings for this unit. Menu Structure The menus of this unit have the following structure. Main Menu ����� ������ ������������ ���������� ����� ������������� ��� ����� ������� ����� ����� ����... -
Page 24: Menu Operation Buttons
Adjustments and Settings Using Menus (continued) Menu Operation Buttons Button Main unit Remote control Displays the main menu. MENU • Press to clear the menu screen when the MENU menu is displayed. Confi rm the selected item on the main menu. -
Page 25: Procedures For Menu Operation
Procedures for Menu Operation 1, 6 2, 3 2, 3 1, 6 PRESET TEST MUTE LIGHT Press the [MENU] button • The main menu is displayed on the screen. Display of the menu item currently selected becomes highlighted. ����� ������ �... -
Page 26: "Picture Adjust" Menu
Adjustments and Settings Using Menus (continued) 1 “Picture adjust” Menu To adjust images. On the “Picture Adj. ” menu, you can adjust the following items. “Gamma” Switches the gradation characteristics of the image. Select your preference setting values according to the image to be viewed. Setting Values : “NORMAL”, “A”, “B”, “CUSTOM”... -
Page 27: Screen Blanking
2, 5 3, 4 3, 4 2, 5 PRESET TEST MUTE LIGHT Project image onto the screen Image for which the outer area has deteriorated Press the [MENU] button • The main menu is displayed on the screen. ����� ������ �... -
Page 28: Shift Setting
V Shift Setting When projecting images with black bands at the top and bottom such as a 2:35 Cinemascope image, use this to move the image up or down while retaining one of the black bands at the upper or lower end. 2, 5 3, 4 3, 4... -
Page 29: Replacing The Lamp (For Service Personnel Only)
Resetting Lamp Time After your Vidikron dealer installs a new lamp, he will reset the lamp time. The lamp time counter will be reset and a new count will start. If display of the accumulated lamp time has reached 2000 hours, this unit will not work (lamp does not light up) unless the lamp time is reset. -
Page 30: Cleaning And Replacing The Filter
Cleaning and Replacing the Filter Have your Vidikron dealer clean the fi lter regularly or air intake effi ciency may deteriorate and malfunction may occur. If the fi lter is ex- tremely dirty and cannot be cleaned, or if it is damaged, replace the fi lter with a new one. Otherwise, dirt may enter the unit and appear on the screen, preventing you from enjoying the video fully. -
Page 31: What To Do When These Messages Are Displayed
What to do when these messages are displayed Message No Signal DVI-D 1000h EXIT ● Lamp replacement EXIT ● Lamp replacement Warning EXIT ● Cause (Details) No device is connected to the DVI terminal. The terminal is connected but there is no signal output. ➝... -
Page 32: Warning Indication
Warning Indication About warning indicators If an abnormality occurs in this unit during projection, the warning mode will be triggered and the type of abnormality will be indicated by a combination of indicators displayed on the control panel. This unit will then automatically stop projection and run the cooling fan for about 90 seconds. -
Page 33: Troubleshooting
Before sending the unit to your Vidikron dealer for repair, check the following points. Symptom Power is not supplied. • Is the power cord disconnected? • Is the lamp cover properly shut? • Is the fi lter cover properly shut? •... -
Page 34: Terminal Description
Terminal Description Pin Arrangement RS-232C Terminal DVI Terminal Pin No. Signal Name Pin No. Signal Name TMDS data 2- TMDS data 2+ TMDS data 2/4 shield DDC clock DDC data TMDS data 1- TMDS data 1+ TMDS data 1/3 shield TMDS= Transition Minimized Diff... -
Page 35: Rs-232C External Control
RS-232C External Control Control of this unit via an automation control system is possible by connecting it to this unit with a RS-232C cross cable (D-sub 9 pins). The commands to control this unit and the response data format against the received commands are explained here. For details, please consult your authorized dealer. - Page 36 Terminal Description (continued) 2-3. Parameters used for the data format The following 3 types of parameters are used for command and response data: 1 Numeric value 2 ON/OFF 3 Special parameters Each parameter is as follows: 1 Numeric value A 2-byte hexadecimal value (sign included) is represented by a set of 4-digit (4-byte) characters. Assignable range: 8000H to 7FFFH 2 ON/OFF Shows the status (ON or OFF) of the unit, such as POWER and HIDE.
-
Page 37: Specifi Cations
Projection Type: D-ILA, 3-chip, 0.82 in. diagonal Native Resolution: 1920 x 1080 (16:9) Aspect Ratio: 4:3, Letterbox,16:9 Anamorphic DTV Compatibility: 480p, 720p, 1080i, 1080p Recommended Width: 72 – 96 in. Picture Size (16:9 screen): Maximum Width: 240 in. CSMS* Specifi cations: Home Theater Calibration: 491 ANSI Lumens; 18.1 Foot-Lamberts (fL); CSMS* Specifi... -
Page 38: Dimensions
Dimensions 17.998 20.125 5.932 3.209 4.499... - Page 40 RUMA-011080 Version 1.0 Vidikron 2900 Faber Street Union City, CA 94587 510-324-5900 Fax 510-324-5905 1-888-4-VIDIKRON...
