(6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user. In addition, Vidikron will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user.
Page 4
IMPORTANT -- WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.
Page 5
ADDITIONAL INFORMATION: To locate the name and address of the nearest Vidikron Authorized Service Center, or for additional information about this Limited Warranty, please call or write: VIDIKRON PRODUCT INFORMATION RETAIN THIS INFORMATION FOR YOUR RECORDS _________________________________________________________ Model Purchased ____________________________________________________________________________________________________________...
Safety Precautions Thank you for your purchase of this quality Vidikron video projector! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.
Safety Precautions ... vi 1. Introduction ... 1 2. Controls and Functions ... 5 3. Installation ... 13 Vidikron Vision Model 10/Model 12 Owner’s Operating Manual About This Manual ... 1 Target Audience... 1 If You Have Comments About This Manual..1 Textual and Graphic Conventions ...
Page 8
6. Serial Communications ... 55 7. Specifications ... 57 Connections to the Vision 10/12 ...22 Connector Panel Access ...22 Connecting the Vision 10/12 to Source Components...22 RS-232 Controller Connection ...27 Connecting to the 12-Volt Trigger Output...28 Turning on the Power ...29 Adjusting the Projector Height or Projection Angle ...29...
Vidikron has prepared this manual to help home theater installers and end users get the most out of the Vision 10/12. Vidikron has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time.
DANGER appears when a given action can cause severe injury or death. DANGER! Use the following table to locate the specific information you need in this manual. If you need... Information about obtaining service General information about the Vision 10/Vision 12 DLP Projector Installation instructions First-time configuration instructions Advanced configuration instructions...
The Vision 10/12 is equipped with a precision optics package (with manual zoom lens) plus generous horizontal/vertical mechanical lens shift capabilities and electronic keystone correction for flexible placement within virtually any home theater environment. Among the finest attributes of the Vision 10/12 is its ability to meet the rigid Imaging Science Foundation™...
Introduction Parts List Your Vision 10/12 is shipped with the following items. If any items are missing or damaged, please contact your Vidikron dealer or Vidikron Customer Service at (888) 4VIDIKRON. • Vision 10/Vision 12 DLP Projector • AC Power Cord (North America) •...

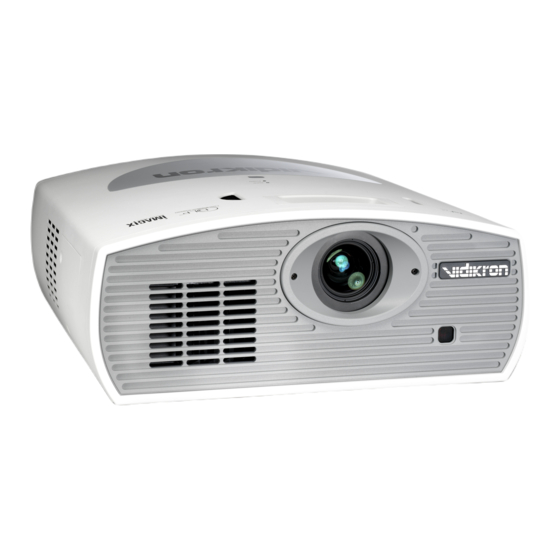

Figure 2-1 and Figure 2-2 show the locations of key Vision 10/12 projector components. Figure 2-1. Vision 10/12 Top/Front/Side View Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Controls and Functions Vision 10/12 at a Glance Front/Top/Side View...
Page 16
10. TEMPERATURE INDICATOR Flashes blue when the projector is overheated. 11. POWER INDICATOR Lights solid blue when the projector is in standby mode; flashes blue during cool-down. During normal operation, this LED is off. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Page 18
RGB HD A 15-pin VGA connection to a personal computer or HD tuner with an RGB output. The Vision 10/12 automatically detects the signal resolution: 480p, 576i, 720p or 1080i. HDMI / Computer Input (Digital) HDCP-compliant digital video input for connecting a DVD player, personal computer or HD tuner with a DVI or HDMI output.
Figure 2-3 shows the Vision 10/12 remote control, and the paragraphs that follow describe its functionality. Figure 2-3. Vision 10/12 Remote Control Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Vision 10/12 Remote Control Controls and Functions...
Page 20
Press to recall settings for the current input from the “ISF Day” memory preset. ENTER Press to select a highlighted menu item or confirm a changed setting. MENU Press this button to access the on-screen display (OSD) controls. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Page 21
Use these buttons to select items or settings, adjust settings or switch display patterns. 14. EXIT Press this button to exit the current menu and return to the previous one. 15. NUMBER KEYS Use these buttons to enter menu passcodes. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Controls and Functions...
Page 22
Controls and Functions Notes: Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
• Do not mix an old battery with a new one or different types of batteries. • If you will not use the remote control for a long time, remove the batteries to avoid damage from battery leakage. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Remote Control Installation...
• If the effective range of the remote control decreases, or it stops working, replace the batteries with new ones. • Ambient conditions may possibly impede the operation of the remote control. If this happens, point the remote control at the projector, and repeat the operation. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Table 3-1 gives a quick overview of the Vision 10/12 installation process. The sections following this one provide detailed instructions. Installation should be performed by a qualified custom video installation Note specialist. Table 3-1. Installation Overview Step Procedure Choose a location for the projector...
• Projector access is more difficult • Requires separate room • Installation cost is usually higher • Requires separate room • Installation cost is usually higher • Requires separate room • Installation cost is usually higher Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
For example, with an 8-foot (96-inch) wide screen: • The Vision 10 has a throw distance range of between 134.4 inches (3.41 meters) and 153.6 inches (3.90 meters). • The Vision 12 has a throw distance range of between 136.3 inches (3.46 meters) and 158.4 inches (4.02 meters).
Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example. Figure 3-5. Horizontal Lens Shift (Example only) Vidikron Vision Model 10/Model 12 Owner’s Operating Manual 100% Width Lens Shift (1.0 x W) 50% Width Lens Shift (0.5 x W)
Installation Adjusting the Projection Angle Table 3-3 gives the lens shift limits for the Vision 10 and Vision 12, as percentages and absolute measurements with a 96 x 54 inch (1.78:1) screen. Table 3-3. Vertical and Horizontal Lens Shift Limits...
This type of mounting is recommended for fixed installations and for those that want the projector out of sight or have a limited space for projector and audience. Use only the Vidikron-approved ceiling mount kit designed for your Note projector.
To access the connector panel, press and hold the black door release button. Then, pull gently on it to open the door. Connect your video sources to the Vision 10/12 as shown and described in the sections that follow. HDMI Connections: The Vision 10/12 has an HDMI input for connecting a DVD player, DTV decoder, personal computer or any other device with a DVI or HDMI output.
HD Set Top Box) Note: To connect a DVI source, use the HDMI-to-DVI adapter and DVI cable provided with the projector. Figure 3-7. HDMI (or DVI) Source Connections Vidikron Vision Model 10/Model 12 Owner’s Operating Manual COMP 2 RGB-HD...
Installation RGB-HD Connections: The Vision 10/12 has an RGB input for connecting a personal computer or DTV decoder with an RGB output. See Figure 3-8. COMP 1 VIDEO S-VIDEO VIDEO S-VIDEO COMP RS-232 RS-232 Figure 3-8. Analog RGB Connections 1. Refer to Computer Signal Compatibility on page 60 for a list of Note computer signals compatible with the Vision 10/12.
VIDEO S-VIDEO VIDEO S-VIDEO COMP RS-232 RS-232 Component Video Source (DVD Player or HD Set Top Box) Figure 3-9. Component Video Connections Vidikron Vision Model 10/Model 12 Owner’s Operating Manual COMP 2 RGB-HD RGB-HD COMP Pr/Cr Pb/Cb HDMI HDMI Installation...
Installation Composite/S-Video Connections: The Vision 10/12 has S-Video and composite video inputs for connecting a DVD player, VCR, satellite receiver, camcorder, laser disc player et cetera; see Figure 3-10. COMP 1 VIDEO S-VIDEO VIDEO S-VIDEO COMP RS-232 RS-232 Composite S-Video...
Use a standard, 9-pin RS-232 cable to connect a PC or home theater control/automation system (if present) to the RS-232 port on the Vision 10/12; see Figure 3-11. For more information about using this connection, refer to Serial Communications on page 55.
Installation Connecting to the 12-Volt Trigger Output If your home theater contains a retractable screen or other, 12-Volt trigger-activated equipment, connect it to the 12-volt trigger output on the Vision 10/12 as shown in Figure 3-12. COMP 1 VIDEO S-VIDEO...
After a brief warm-up period (approximately 10 seconds), the Vision 10/12 will start projecting. When the Vision 10/12 is installed upright, you can adjust the projector height or projection angle by turning the four adjustable feet on the bottom of the projector; see Figure 4-1. This is useful for correcting the angle of projection when the projector is placed on an uneven surface or when the screen is at an angle.
Language Adjusting the Picture Orientation The Vision 10/12 OSD language is initially set to English, but can also display the menus in French, Italian, German or Spanish. To change the OSD language: Press MENU. Select Installation from the Main Menu.
The Vision 10/12 gives you a great deal of control over the picture size, position and focus. Figure 4-2 shows the location of the focus and zoom controls; Figure 4-3 shows the location of the lens shift controls. To focus the projected image, rotate the focus ring left or right.
Then, press the right- or left-arrow button ( , To return to the previous menu, press EXIT. The Vision 10/12 OSD menus are arranged hierarchically, as shown in Figure 4-4. Depending on the selected input source, some menu options may not be available.
Auto Power Off Blue Enable OSD Position Keystone Fan High Speed Mode Figure 4-4. Vision 10/12 OSD Menu Structure Vidikron Vision Model 10/Model 12 Owner’s Operating Manual (not available on HDMI or RGB-HD inputs) 1, 2, 3, 4, 5 1.0, 1.5, 1.8, 2.0, 2.2, 2.35, 2.5, 2.8 Native, 5,000K, 5,500K, ...
Otherwise, the change will be lost when a different input is selected. (The aspect ratio is saved for each input and resolution separately.) For information about saving settings, refer to Save Settings on page 42. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Page 45
Anamorphic (16/9) Standard (4/3) LetterBox IntelliWide I-WIDE Cinema CINEMA Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Description Select Anamorphic to view 16:9 DVDs and HDTV programs in their native 16:9 Image on aspect ratio. 4:3 images are 16:9 Screen stretched horizontally to fit a 16:9 screen.
Control Cinema Fill C-FILL Use the controls in the Picture Adjust menu to calibrate your Vision 10/12 for optimum picture quality. The Vision 10/12 has been designed to incorporate setup and calibration standards established by the Imaging Science Foundation (ISF). The ISF has developed carefully crafted,...
• The dark gray areas are barely visible. • The lighter gray areas are clearly visible. • The white areas are a comfortable level of true white. • The image contains only black, gray and white (no color). Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-7. Figure 4-7. Typical Color Bar Pattern for Adjusting Color Saturation and Tint Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Page 49
A change to one may require a subtle change to the other in order to achieve the optimum setting. 2. Color and tint controls are not available on the HDMI or RGB-HD inputs. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Operation...
All images will be more vibrant while still showing good detail in dark areas. The default Gamma setting is appropriate for most typical home cinema environments. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
X-adjustment To restore the default color temperature, select Reset Color Temp and press ENTER. Press ENTER again to confirm. Figure 4-9. CIE 1931 Chromaticity Diagram Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Y-adjustment red hues blue hues green hues...
Offset for that color. Save Settings: The Vision 10/12 lets you save image quality settings for each input and supported resolution to a preset. You can recall this preset at a later time by simply pressing a button on the remote control or using the Load Saved Settings menu command (see below).
Page 53
• Film Mode: Use the Film Mode control to smooth out moving images from interlaced sources. In most cases, the Vision 10/12 detects the proper “pull-down” rate and vertical frequency. However, if your source is jittery and/or tearing you may wish to force a setting to ensure stable processing for that source.
Auto. Auto Power Off: The Vision 10/12 can be set to power off automatically after 15 minutes of no input signal or user input via the remote control. To enable this feature, set it to ON. When you do, a warning message appears on-screen five minutes before the shutdown is to occur.
Positive values compress top; negative values compress bottom. Figure 4-10. Horizonal and Vertical Keystone Correction 1. The Vision 10/12 keystone correction can compensate for up to Note approximately 15 degrees of screen and/or projector tilt. 2. Straight lines or the edges of images may appear jagged while adjusting the image.
To do this, select Lamp Timer Reset from the ISF Calibration menu and press ENTER. The Vision 10/12 shows the number of hours the projector lamp has been in service and asks you to confirm or cancel the reset. Press ENTER to confirm or EXIT to cancel.
(Figure 4-7). When you have finished customizing the color space, select Store Setting and press ENTER. ISF Enable: Use ISF Enable to control the display of the ISF logo on the Vision 10/12 splash screen upon power-up; see Figure 4-11.
Page 58
Splash Screen Timer: Press the right- or left-arrow buttons to set the Splash Screen Timer. This timer controls how long the startup (ISF and Vidikron logo) image stays on-screen after you turn on the projector. Select from 15 to 60 seconds, in 5-second increments.
• The surface of the lens is easily damaged. Do not scrape or hit the lens. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Maintenance and Troubleshooting Cleaning the Projector Cleaning the Lens...
Maintenance and Troubleshooting Cleaning the Intake and Exhaust Vents This Vision 10/12 is equipped with intake and exhaust vents to allow the flow of cool air through the projector and maintain the proper operating temperature. You should periodically clean the vents by vacuuming them with a vacuum cleaner.
• For lamp replacement, please contact your nearest Vidikron authorized service center or Vidikron dealer. Do not attempt to replace the lamp yourself! This projector uses a pressurized mercury lamp. A loud sound may indicate Caution lamp failure.
10. Reset the Lamp Timer to zero. To do this, select Lamp Timer Reset from the ISF Calibration menu and press ENTER. The Vision 10/12 shows the number of hours the projector lamp has been in service and asks you to confirm or cancel the reset. Press ENTER again to confirm.
Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the Vision 10/12. If you encounter an issue not described here, please contact your Vidikron dealer or Vidikron Technical Support. Table 5-1. Troubleshooting Chart Symptom The projector does not turn on •...
Page 64
Maintenance and Troubleshooting Notes: Vidikron Vision Model 10/Model 12 Owner’s Operating Manual...
Configure the RS-232 controller or PC serial port as follows: no parity, 8 data bits, 1 stop bit and no flow control. Set the baud rate to 9600, to match that of the Vision 10/12 RS-232 port. Table 6-1 lists the RS-232 command set. All commands are in ASCII format and must be in UPPERCASE.
Page 66
2. The power on command (PON) will not provide an OK reply; it will instead reply with a random character. For your automation system, simply ensure that you receive a character after the PON command. If you do not get any reply after PON, send PON again. Description Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Reply RRDOK RRDOK...
Page 68
Contrast Ratio: 2400:1 (Vision Model 10); 2550:1 (Vision Model 12) These are typical projector brightness and contrast specifications found in most companies’ sales literature. Vidikron includes these measurements in its literature to allow for direct comparison with other manufacturers’ projectors. These measurements are typically...
Computer Signal Compatibility The Vision 10/12 can display video signals from a variety of computer sources via its RGB-HD and HDMI inputs. It is compatible with the three most common sync modes -- sync-on-green, composite sync and RGB with separate sync -- as well as XGA display adapters that use advanced intelligent compression.
Page 71
2. When this projector receives 640 × 350 VESA format VGA signals, “640 × 400” appears on the screen. 3. Interlaced video signals received through the RGB input may not display correctly. If this occurs, use the Component 1, Component 2, S-video or Composite video input instead. Vidikron Vision Model 10/Model 12 Owner’s Operating Manual Vertical VESA...
Specifications Video Signal Compatibility Table 7-3 lists numerous common video signal formats and indicates which input(s) on the Vision 10/12 can accept a given format. Table 7-3. Video Signal Compatibility Chart H-Freq Resolution (kHz) NTSC 640 x 480i 15.73 Video 768 x 576i 15.63...
Page 74
RUMA-011175 rev. 08-14-06 v2.0 Vidikron 2900 Faber Street Union City, CA 94587 510-324-5900 Fax 510-324-5905 1-888-4-VIDIKRON www.vidikron.com SE RI A L NUM BE R...
