Vidikron Vision 50 Operating Manual

Vision 50 series
Hide thumbs Also See for Vision 50:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Operation Manual

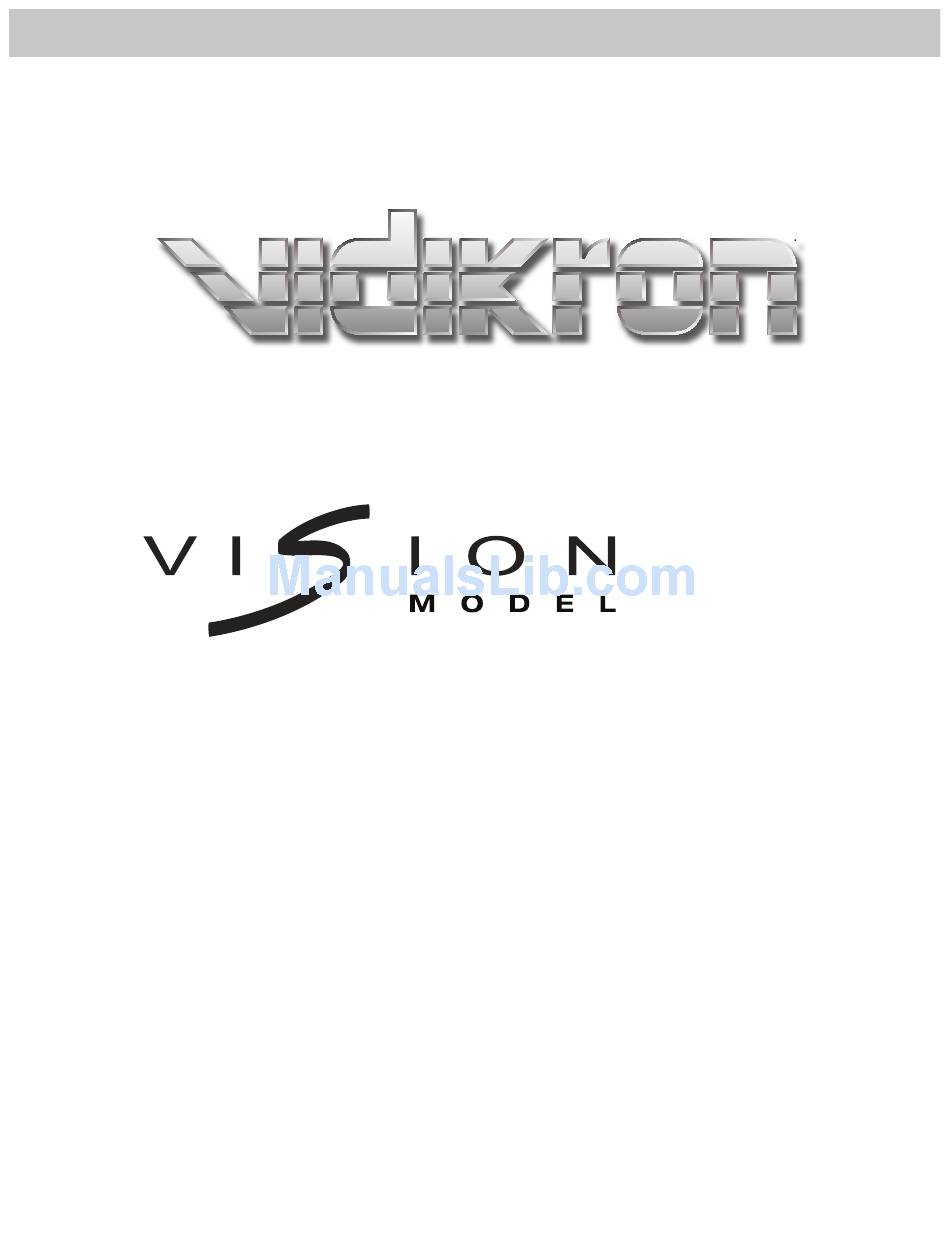

O W N E R ' S
O P E R A T I N G
M A N U A L
50
SERIES DLP™ PROJECTORS
Vision 50
Vision 50/CineWide™
Vision 50/CineWide with AutoScope™

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Vision 50 and is the answer not in the manual?

Questions and answers

Related Manuals for Vidikron Vision 50

Summary of Contents for Vidikron Vision 50

  • Page 1 O W N E R ’ S O P E R A T I N G M A N U A L SERIES DLP™ PROJECTORS Vision 50 Vision 50/CineWide™ Vision 50/CineWide with AutoScope™...

  • Page 3: Two Year Limited Warranty

    (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user. In addition, Vidikron will provide a new or rebuilt replacement lamp for the lamp that fails due to defects in materials or workmanship for a period of six (6) months or 1000 hours, whichever comes first, from the effective date of delivery to the end user.
  • Page 4 IMPORTANT -- WARRANTY REGISTRATION: Please fill out and mail your warranty registration card. It is imperative that Vidikron knows how to reach you promptly if we should discover a safety problem or product update for which you must be notified.
  • Page 5 ADDITIONAL INFORMATION: To locate the name and address of the nearest Vidikron Authorized Service Center, or for additional information about this Limited Warranty, please call or write: VIDIKRON PRODUCT INFORMATION RETAIN THIS INFORMATION FOR YOUR RECORDS _________________________________________________________ Model Purchased ____________________________________________________________________________________________________________...

  • Page 6: Safety Precautions

    Safety Precautions Thank you for your purchase of this quality Vidikron video projector! It has been designed to provide you with the quality of video that is expected in a home theater. For the best performance, please read this manual carefully as it is your guide through the menus and operation.

  • Page 7: Table Of Contents

    Vertical and Horizontal Position...17 Vertical Lens Shift ...17 Folded Optics ...18 Other Considerations ...18 Installing the Optional CineWide Lens Mount ...19 Installing the AutoScope Lens Motor (Vision 50/CineWide with AutoScope)...20 Installing the Fixed CineWide Base Plate (Vision 50/CineWide) ...23 Table of Contents...
  • Page 8 Vertical Lens Shift ...32 Installing and Adjusting the CineWide Anamorphic Lens ...33 Anamorphic Lens Installation and Adjustment - Vision 50/CineWide ...33 Anamorphic Lens Installation and Adjustment - Vision 50/CineWide with AutoScope 36 Selecting Video Memory ...43 Selecting an Aspect Ratio ...43 Selecting An Input Source ...43...
  • Page 9 Vidikron Vision 50 Series Owner’s Operating Manual RS-232 Connection and Port Configuration ...67 Serial Command Syntax ...67 Vision 50 Specifications ...71 Vision 50 Dimensions ...74 APPENDIX A. Personalizing the ISF Splash Screen on the Vision 50 ... A-1 Table of Contents...
  • Page 10 Table of Contents Notes: Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 11 3-6. Vision 50 with Ceiling Mount Adapters/Projector Stands ....... .
  • Page 12 List of Figures Notes: Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 13: Introduction

    Vidikron has prepared this manual to help home theater installers and end users get the most out of the Vision 50. Vidikron has made every effort to ensure that this manual is accurate as of the date it was printed. However, because of ongoing product improvements and customer feedback, it may require updating from time to time.

  • Page 14: Using This Manual

    DANGER! Use the following table to locate the specific information you need in this manual. If you need... Information about obtaining service General information about the Vision 50 Series DLP Projectors Installation instructions First-time configuration instructions Advanced configuration instructions Troubleshooting tips Specifications for the Vision 50 Series DLP Projectors ...

  • Page 15: Description, Features And Benefits

    Contrast ratio and dynamic range extend to new heights with Vidikron's exclusive V Aperture Control™ (VAC), an electronically-controlled iris system. The standard Vision 50 is equipped with a precision optics package offering a power zoom control and a throw range of 1.82:1 to 2.37:1.

  • Page 16: Key Features And Benefits

    • HDMI Input with High-bandwidth Digital Content Protection (HDCP) • HDTV Compatible Your Vision 50 is shipped with the following items. If any items are missing or damaged, please contact your Vidikron dealer or Vidikron Customer Service at (888) 4VIDIKRON.

  • Page 17: Controls And Functions

    Figure 2-1 and Figure 2-2 show the key Vision 50 components. Figure 2-1. Vision 50 Front/Side/Top View VIDIKRON LOGO The logo can be rotated to match the projector orientation: inverted (ceiling-mounted) or upright. To rotate the logo, grip it at the sides, pull it away from the projector and rotate it 180 degrees.
  • Page 18 EXHAUST VENT FRONT IR SENSOR PROJECTION LENS Figure 2-2. Vision 50 Rear/Bottom/Side View MENU SOURCE ZOOM+ /EXIT /ENTER POWER ZOOM+ /EXIT /ENTER POWER MENU SOURCE LENS MEMORY SHIFT ZOOM- SHIFT ZOOM- MEMORY LENS Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 19: Vision 50 Connector Panel

    Refer to Vision 50 Connector Panel, below. POWER INPUT (100 to 240 VAC) Connect the Vision 50 to power here. MAIN POWER SWITCH Disconnects or applies power to the Vision 50. BUILT-IN KEYPAD Refer to Built-In Keypad on page 8. CABLE ACCESS DOOR Open to access connectors.

  • Page 20: Built-In Keypad

    Vidikron CineWide with AutoScope system. COMP 2 / RGB Five, BNC connectors for connecting either RGB or component (YPbPr) high-definition television signals. (The Vision 50 automatically detects the signal format.) To control the projector when signals from a remote control cannot reach it, use the built-in keypad next to the connector panel.

  • Page 21: Vision 50 Remote Control

    Figure 2-4 shows the Vision 50 remote control, and the paragraphs that follow describe its functionality. Figure 2-4. Vision 50 Remote Control Vidikron Vision 50 Series Owner’s Operating Manual Vision 50 Remote Control Controls and Functions...
  • Page 22 Enlarges a 4:3 image horizontally in a NON-linear fashion to fit 16:9 full screen display. CINEMA For viewing 2.35:1 source material. C-FILL (CineWide-equipped projectors only) Selects the Cinema Fill aspect ratio, used for viewing 16:9 source material on a 2.35:1 screen. Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 23 PIP- Press to shrink the size of the PIP window. VAC (V Aperture Control) Adjusts the lens aperture (iris) setting according to the ambient light level in the viewing area. Vidikron Vision 50 Series Owner’s Operating Manual Controls and Functions...

  • Page 24: Remote Control/Built-In Keypad Functional Comparison

    6/ 8 Figure 2-5. Remote Control/Built-In Keypad Functional Cross-Reference MENU SOURCE ZOOM+ /EXIT ZOOM+ /EXIT SOURCE FOCUS- FOCUS+ MENU FOCUS- FOCUS+ ZOOM- MEMORY ZOOM- MEMORY Vidikron Vision 50 Series Owner’s Operating Manual POWER /ENTER /ENTER POWER LENS SHIFT SHIFT LENS...

  • Page 25: Installation

    • Ambient conditions may possibly impede the operation of the remote control. If this happens, point the remote control at the projector, and repeat the operation. • The Ø icon appears on the screen when you press a button for an unavailable function. Vidikron Vision 50 Series Owner’s Operating Manual Remote Control Installation...

  • Page 26: Quick Setup

    Installation Quick Setup Table 3-1 gives a quick overview of the Vision 50 installation process. The sections following this one provide detailed instructions. Installation should be performed by a qualified custom video installation Note specialist. Table 3-1. Installation Overview Step...

  • Page 27: Installation Considerations

    Images may then appear washed out and less vibrant. Vidikron Vision 50 Series Owner’s Operating Manual Considerations • Shares floor space with audience •...

  • Page 28: Throw Distance

    Throw Distance (TD) = Screen Width (w) x Lens Throw Ratio Figure 3-1. Estimating Throw Distance Table 3-3 gives the throw ratios for the Vision 50, Vision 50/CineWide and Vision 50/CineWide with AutoScope. Table 3-3. Throw Ratios for the Vision 50 Series...

  • Page 29: Vertical And Horizontal Position

    Note: This is a general example of lens shift. Lenses vary in their shift capabilities. No particular lens or projector is used in this example. Figure 3-3. Vertical Lens Shift (Example Only) Vidikron Vision 50 Series Owner’s Operating Manual Ceiling Lens Center...

  • Page 30: Folded Optics

    ➤ Other Considerations The Vision 50 provides up to 50% of vertical lens shift in either direction. For example, with a 96 x 54-inch (16:9) screen, you can shift the image up to 27.00 inches (0.69 meters) above or below the screen center.

  • Page 31: Installing The Optional Cinewide Lens Mount

    If you are installing a standard (non-CineWide) Vision 50, skip this step and proceed with Mounting the Vision 50 (page 24). If you are installing a Vision 50/CineWide, proceed with Installing the Fixed CineWide Base Plate (Vision 50/CineWide) (page 23).

  • Page 32: Installing The Autoscope Lens Motor (Vision 50/Cinewide With Autoscope)

    10-32 x 1/2” (10x) AutoScope Lens Motor Figure 3-5. Vision 50/CineWide with AutoScope Motor Assembly – Exploded View Remove Projector Front Height Adjusters: Place the projector upside down on a blanket or other soft surface. Then, remove the two height adjusters at the front of the projector by turning them counterclockwise until they come out.
  • Page 33 Using six (6) each of the supplied, 10-32 x 1/2” Pan-Head Phillips screws (item #2) and nylon spacers (item #5), attach the AutoScope Ceiling Mount Adapters/Projector Stands (items #3 and #4) to the projector as shown in Figure 3-6. Figure 3-6. Vision 50 with Ceiling Mount Adapters/Projector Stands DO NOT OVER-TIGHTEN THE SCREWS. Caution...
  • Page 34 Secure the motor to the projector with the four remaining 10-32 x 1/2” Pan-Head Phillips screws (item #2) and nylon spacers (item #5). Figure 3-7. AutoScope Lens Motor Installation After you have installed the AutoScope lens motor, proceed with Mounting the Vision 50 on page 24. Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 35: Installing The Fixed Cinewide Base Plate (Vision 50/Cinewide)

    Line up the four mounting holes on the CineWide base plate with those on the bottom of the projector. If you are mounting the Vision 50/CineWide on a ceiling: Line up the four holes on the projector ceiling mounting plate (included with the projector ceiling mount kit) with those on the bottom of the projector.

  • Page 36: Mounting The Vision 50

    For fixed installations, and for those that want the projector out of sight or have a limited space for projector and audience, you can invert the Vision 50 and suspend it from the ceiling using a specially-designed ceiling mount fixture.

  • Page 37: Connections To The Vision 50

    Proceed as follows to connect the Vision 50 to your video sources, external controller(s) – if present – and AC power. When connecting your equipment: • Turn off all equipment before making any connections. • Use the correct signal cables for each source.
  • Page 38 COMP 2/RGB input; see Figure 3-10. You can use the included DB15HD-to-5 x BNC cable if your RGB source has a 15-pin, VGA-type connector. The Vision 50 supports computer resolutions of 1024x768, 800x600 and Note 640x480.
  • Page 39 (DVD player or HD set top box) to the COMP 2/RGB input as shown in Figure 3-11. S-VID / S-VID DTV or Progressive Component (YPbPr) Source Figure 3-11. Progressive Component Video Connections Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 40 Installation Composite/S-Video/Component Video Connections: Use the included cables to connect your composite, S-Video and SD (480i) component video sources to the Vision 50 as shown in Figure 3-12. (G) Y (B)P (R)P (R)P DTV Source, DVD Player, VCR, Satellite Receiver etc.

  • Page 41: Rs-232 Controller Connection

    Connect a PC or home theater control/automation system (if present) to the RS-232 port on the Vision 50; see Figure 3-13. Use a standard, 4-wire RJ-11 telephone cable, wired straight-through. For more information about using this connection, refer to Serial Communications on page 67.

  • Page 42: Connecting 12-Volt Trigger Output To External Theater Equipment

    Output to External Theater Equipment If your Vision 50 is equipped with a CineWide with AutoScope system, use the cable supplied with the AutoScope Lens Motor to connect the motor to the 12-volt trigger output as shown in Figure 3-14.

  • Page 43: Connecting To Ac Power

    Turn on the main power switch at the rear of the projector. The POWER LED lights orange. The LAMP and TEMP LEDs light red briefly, then go out. Press the ON button on the remote control to turn on the Vision 50. The POWER LED flashes orange to indicate that it is warming up.

  • Page 44: Changing The Osd Language

    Zoom ➤ Vertical Lens Shift The Vision 50 OSD language is initially set to English, but can also display the menus in French, Spanish, Italian or German. To change the OSD language: Press MENU. Select Installation from the Main Menu and press ENTER.

  • Page 45: Installing And Adjusting The Cinewide Anamorphic Lens

    Vision 50/CineWide. If you are installing a Vision 50/CineWide with AutoScope, refer to Anamorphic Lens Installation and Adjustment - Vision 50/CineWide with AutoScope on page 36. If you are installing a standard Vision 50/CineWide, continue with the next section.
  • Page 46 To do this, loosen the Pitch/Y-Adjustment Screws on either side of the lens to allow it to pivot freely. Then, adjust the anamorphic lens angle so that the projected image is rectangular: Ceiling Mount Bracket Correct position Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 47 There may be some pincushion distortion even after the lens is properly Note adjusted, especially at shorter throw distances. If this is the case, Vidikron recommends that you slightly over-scan the image into the screen frame area to mask the distortion.

  • Page 48: Anamorphic Lens Installation And Adjustment - Vision 50/Cinewide With Autoscope

    Once the proper lens angle has been set, firmly tighten the Yaw/Z-Adjustment Levers to secure the lens in place. The Vision 50 Anamorphic lens mount kit consists of everything shown in Figure 3-17. Some components shipped with your projector may differ slightly from what is shown in these instructions.
  • Page 49 Anamorphic Lens Holder. The Yoke should be as close to the primary lens as possible. Attach the lens to the Lens Adapter Ring by threading it clockwise. Lens threads into ring Figure 3-18. Attaching the Anamorphic Lens to the Lens Adapter Ring Vidikron Vision 50 Series Owner’s Operating Manual Installation...
  • Page 50 Fill aspect ratio is selected. Select the Cinema or Cinema Fill aspect ratio to move the anamorphic lens into position, if it isn’t already. To do this, press CINEMA or C-FILL on the Vision 50 remote control (Figure 2-4). Adjusting the Horizontal (X) Lens Position: Project a white field on the screen.

  • Page 51: Correct Position

    There may be some pincushion distortion even after the lens is properly Note adjusted, especially at shorter throw distances. If this is the case, Vidikron recommends that you slightly over-scan the image into the screen frame area to mask the distortion.
  • Page 52 Then, angle the lens to even out any left-right pincushion distortion: Anamorphic Lens (Top View) Correct Position Wrong Position Once the proper lens angle has been set, firmly tighten the Yaw/X-Adjustment Levers to secure the lens in place. Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 53 Focus: Finally, rotate the Focus Ring on the anamorphic lens to fine-tune the optical focus. Vidikron Vision 50 Series Owner’s Operating Manual Correct Position Installation...
  • Page 54 Installation Notes: Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 55: Operation

    For more information on aspect ratios, refer to Table 4-1. When you turn on the Vision 50, it switches to the last selected input and looks for a valid signal. Use these buttons on the remote control to select an input source directly.

  • Page 56: Using The On-Screen Menus

    • Press MENU to turn off the OSD menu. (When the Main Menu is displayed, pressing EXIT also turns off the menu.) The Vision 50 OSD menus are arranged hierarchically, as shown in Figure 4-1. Depending on the selected input source and signal characteristics, some menu options may not be available.

  • Page 57: Projector Status

    PIP/PBP Enable PIP Set Up PIP/PBP Setup PBP Set Up Background Color Grey, Blue or White Figure 4-1. Vision 50 OSD Menu Structure Vidikron Vision 50 Series Owner’s Operating Manual White Balance Gamma Selection ICC Adjust Image Over Scan Video Black Level...

  • Page 58: Main Menu

    The Main Menu is the starting point for accessing all projector functions. (The Service and ISF Calibration menus are hidden and not accessible until you enter a passcode.) Select Picture Adjust from the Main Menu to calibrate your Vision 50 for optimum picture quality. To adjust a setting, use the change the setting.
  • Page 59 Operation Although it may be possible to obtain satisfactory picture quality using the naked eye and regular program material, Vidikron recommends using the following calibration tools for best results: • External test pattern source -- Ovation Multimedia, Digital Video Essentials or AVIA test DVD or equivalent.
  • Page 60 Color Saturation: On your external test pattern source, select a color bar pattern like the one shown in Figure 4-4. Figure 4-4. Typical Color Bar Pattern for Adjusting Color Saturation and Tint Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 61 Like the brightness and contrast controls, the color and tint controls are Note interactive. A change to one may require a subtle change to the other in order to achieve the optimum setting. Vidikron Vision 50 Series Owner’s Operating Manual Operation...
  • Page 62 The Sharpness setting has no effect if the Video Filter (described on Note page 54) is set to 0. Color Temp.: The Vision 50 has six memory settings for Color Temperature. Four of these settings are factory set to default as follows: • 0 -- Original lamp color temperature •...

  • Page 63: Image Option

    When you change the aspect ratio, save the change to a preset Note afterwards. Otherwise, the change will be lost when a different input is selected. (The aspect ratio is saved for each input and resolution separately.) Vidikron Vision 50 Series Owner’s Operating Manual Anamorphic (16:9) Standard (4:3) Letterbox IntelliWide...
  • Page 64 16:9 screen. 4:3 Image on 16:9 Screen with IntelliWide On a 2.35:1 screen, the image is centered between 4:3 Image on black bars on either side. 2.35:1 Screen with IntelliWide Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 65 • H Threshold/V Threshold/Chroma Threshold: Set these to +11 or higher to activate the enhancement controls described above. Generally, the higher the threshold, the more noticeable the enhancements you make will be. Vidikron Vision 50 Series Owner’s Operating Manual Description Select Cinema to view 2.35 source material in its native aspect ratio.

  • Page 66: Projector Status

    You can choose to run the lamp as bright as possible (250W; this is the default setting) or you can choose the lower (200W) setting. Generally, lower lamp output can prolong the life of the lamp, but decreases brightness. Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 67: Installation

    Spanish, German and Italian). Picture Configuration: Press the image. The Vision 50 can be installed on a ceiling or in a rear-screen configuration with one or more mirrors. There are four settings: Floor Front, Ceiling Front, Floor Rear and Ceiling Rear.

  • Page 68: Service

    Conversely, if the image is washed out and unnatural, with excessive detail in black areas, increase the setting. Again, good gamma improves contrast while maintaining good details for blacks and whites. Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 69 • Horizontal: This control moves the image right or left within the area of available pixels. • Vertical: This option moves the image up or down within the area of available pixels. Vidikron Vision 50 Series Owner’s Operating Manual Operation...
  • Page 70 The Horizontal control adjusts the image width while keeping the height constant. Similarly, the Vertical control adjusts the image height while keeping the width constant. Horizontal Masking (Vision 50/CineWide and Vision 50/CineWide with AutoScope only): To achieve the proper image geometry with the secondary anamorphic lens, select Horizontal Masking from the Service menu.
  • Page 71 Remote Control: The Remote Control menu shows you the primary and secondary infrared (IR) codes to which the Vision 50 will respond. The Primary IR code is permanently set to +20. The secondary IR code is also +20. You can change the secondary IR code if either: •...

  • Page 72: Isf Calibration

    Blue Enable: This setting is described in the Image Option section (refer to page 54). Save ISF Settings: For each input, the Vision 50 lets you store image quality settings as presets that you can recall at a later time. You can create up to three presets per input and resolution.
  • Page 73 Splash Screen Timer: Use the button to set the Splash Screen Timer. This timer controls how long the startup (ISF and Vidikron logo) image stays on-screen after you turn on the projector. Select from 5 to 60 seconds, in one-second increments. When finished, press EXIT.
  • Page 74 Operation Notes: Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 75: Maintenance And Troubleshooting

    The lamp should be replaced when it reaches the end of its life (typically 2000 hours), or sooner if a noticeable degradation in brightness occurs. Contact your Vidikron dealer to obtain a replacement lamp. Turn off the projector and unplug the power cord.

  • Page 76: Troubleshooting Tips

    Troubleshooting Tips Table 5-1 provides some general guidelines for troubleshooting problems you may encounter with the Vision 50. If the suggested solutions fail to resolve the problem or if you encounter an issue not described here, please contact Vidikron Technical Support.
  • Page 77 • flashing red. • LAMP LED lights solid red. • TEMP LED lights solid red. • Vidikron Vision 50 Series Owner’s Operating Manual Possible Cause(s) The lamp cover is open. • Close the lamp cover. Fans are not working •...
  • Page 78 Maintenance and Troubleshooting Notes: Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 79: Serial Communications

    To interface the Vision 50 with a home theater automation/control system or a PC running terminal emulation software: Connect it to your control system or PC as shown in Figure 3-13. Start a terminal session on your PC using a terminal-emulation program, such as HyperTerminal.
  • Page 80 Letterbox aspect ratio x064x IntelliWide aspect ratio x065x Cinema aspect ratio x066x Cinema Fill aspect ratio x071x RS-232 baud rate = 9600 x072x RS-232 baud rate = 38400 x073x RS-232 baud rate = 115200 Function Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 81 Focus (rotate lens to right) x266x Focus (rotate lens to left) x267x Aperture Control = +1 (larger aperture) x268x Aperture Control = -1 (smaller aperture) x281x Vertical Lens Shift = Max. Up Vidikron Vision 50 Series Owner’s Operating Manual Function Serial Communications...
  • Page 82 Zoom = Max. In x285x Focus (rotate lens to right, full-range) x286x Focus (rotate lens to left, full-range) x287x Aperture Control = Full On (open) x288x Aperture Control = Full Off (closed) Function Vidikron Vision 50 Series Owner’s Operating Manual...

  • Page 83: Specifications

    Table 7-1 lists the Vision 50 specifications. Table 7-1. Vision 50 Specifications Projector Type: Digital Light Processing (DLP), Single-Chip DMD Native Resolution: 1280 x 720 (16:9) Aspect Ratios: 4:3, Letterbox, 16:9 Anamorphic, IntelliWide, Cinema, Cinema Fill Video Standards: NTSC, PAL, SECAM...
  • Page 84 12V Output: Max. 0.25 Amps, active when Cinema or Cinema Fill Aspect Ratio is selected (Vision 50/CineWide with AutoScope only) or when projector is turned on; Tip = +12V; Sleeve = Ground Power Requirements: 100 to 240 VAC (auto-sensing), 50/60 Hz, 330 Watts Operating Environment: 41°F to 95°F (5°C to 35°C), 20% to 80% humidity...
  • Page 85 Projector: Two (2) years parts and labor from the date of delivery to the end user. Lamp: 1000 hours or six (6) months, whichever comes first. Specifications are subject to change without notice. Vidikron Vision 50 Series Owner’s Operating Manual Specifications...

  • Page 86: Vision 50 Dimensions

    4.1 in. (103.89 mm) 22.0 in. (560.51 mm) 4.4 in. (110.80 mm) 17.3 in. (440.00 mm) Figure 7-1. Vision 50 Dimensions (with Optional Fixed Anamorphic Lens) 18.9 in. 8.0 in. (203.00 mm) 8.8 in. (222.50 mm) 13.0 in. (330.00 mm)

  • Page 87: Appendix A. Personalizing The Isf Splash Screen On The Vision

    Note procedure! Connect a PC to the Vision 50 RS-232 port and establish a serial connection; refer to RS-232 Connection and Port Configuration on page 67 if you need instructions. Press MENU on the projector remote control. Use the up- or down-arrow keys to highlight ISF Calibration and press ENTER.
  • Page 88 Personalizing the ISF Splash Screen on the Vision 50 Power-cycle the projector to see the change: CALIBRATED FOR: John Doe By: Tinh Ho CUSTOM BUILT BY: Vidikron Vision 50 Series Owner’s Operating Manual...
  • Page 90 RUMA-011145 rev. 03-20-07 v2.1 Vidikron 2900 Faber Street Union City, CA 94587 510-324-5900 Fax 510-324-5905 1-888-4-VIDIKRON www.vidikron.com SE RI A L NUM BE R...
