TILLER CONSOLE
The tiller console houses all controls needed to drive your Travel Scooter, including the key switch, throttle
control lever, horn button, speed adjustment dial, and the battery condition meter.
PROHIBITED! Do not expose the tiller console to moisture. In the event that the tiller console
does become exposed to moisture, do not attempt to operate your Travel Scooter until the tiller
console has dried thoroughly.
1. Horn
2. Key Switch
3. Battery Condition Meter
4. Speed Adjustment Dial
5. Throttle Control Lever
6. Charger Power Cord Receptacle

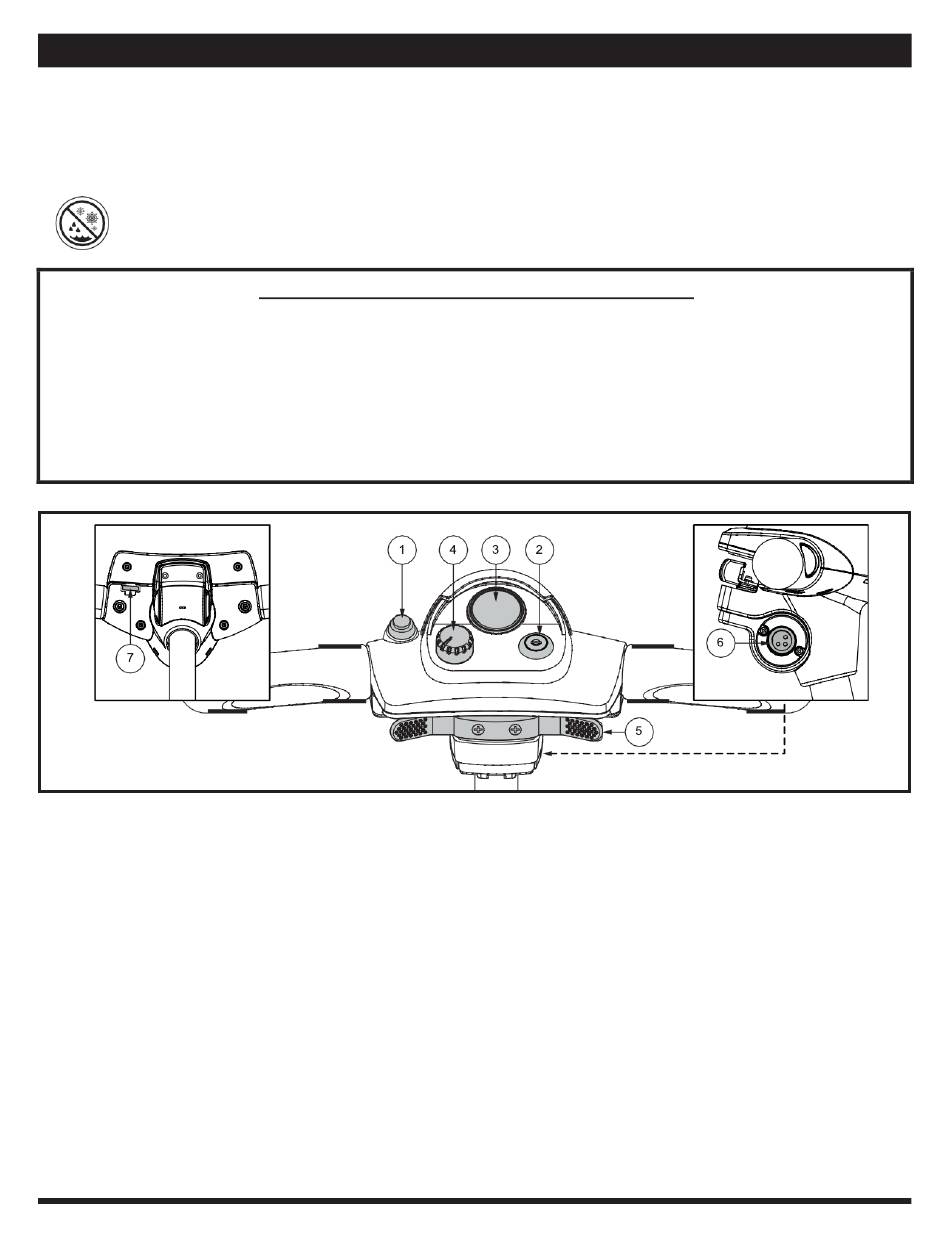

Figure 2. Tiller Console
II . YOUR TRAVEL S C O O TER
IDENTIFICATION KEY FOR FIGURES 1 THROUGH 6
(Tiller Port)*
7. Off-board Charger Fuse
