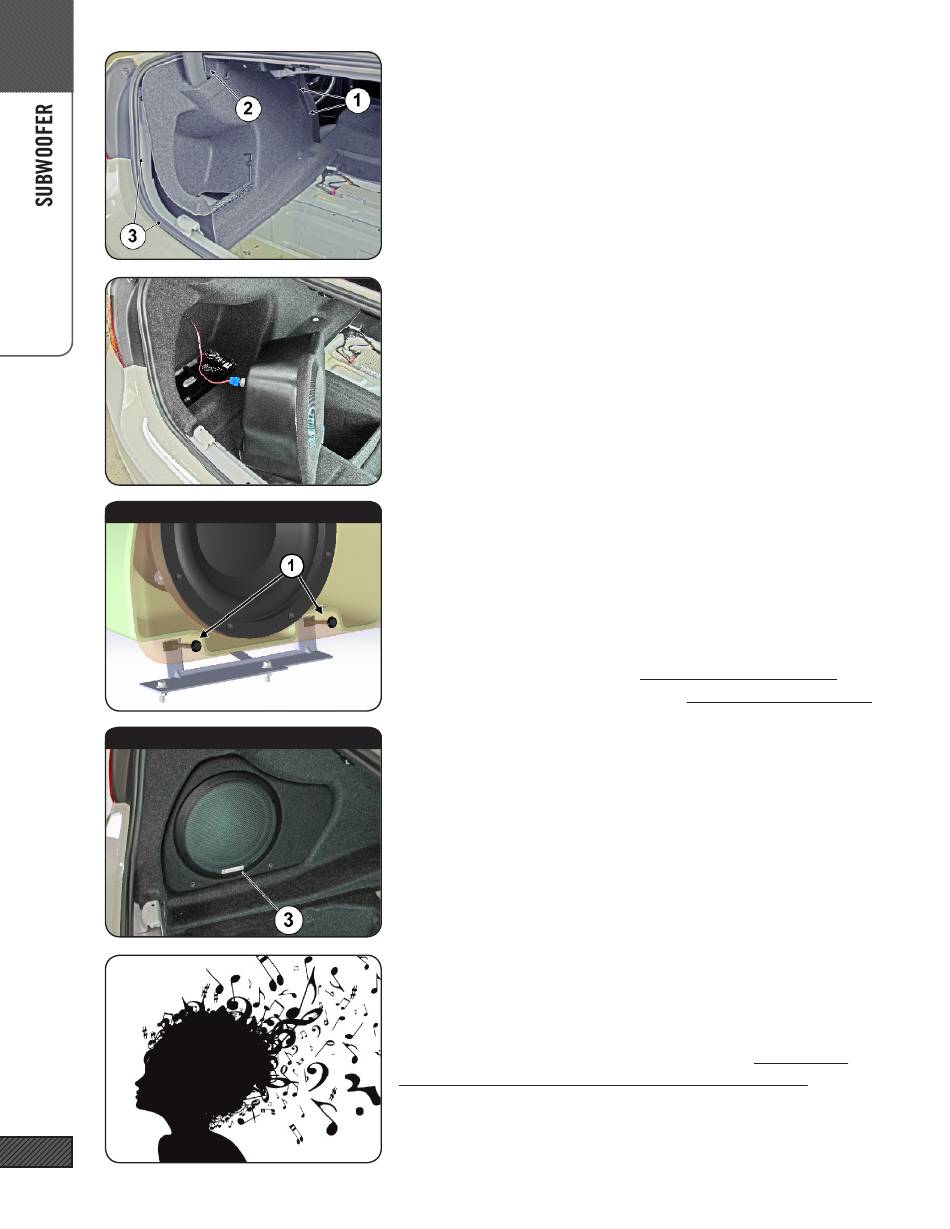

26. REPLACE TRUNK TRIM PANEL
Replace the rear quarter panel trim. Start by insterting the for-
ward edge behind the trim at the side of the rear seat backs (1).
Carefully open the slit in the panel (2) and place around the trunk
lid support. Replace the rubber seal (3) over the edge of the panel.

27. CONNECT SUBWOOFER

Connect the Neutrik plug to the subwoofer. Slide the subwoofer
into the compartment. Do not attach the mounting screws yet.
28. FASTEN SUBWOOFER
Once you've completed settings and confirmed everything is oper-
ating correctly, fasten the subwoofer. The CAD image at left has
some transparancy so you can see how the bolts attach (1). Use
#10-24 x 2.5" Socket Head Cap Bolts
the two
Make sure the enclosure is fully seated into the compartment.
Press the bolts through the carpet and into the hole until they
make contact with the bracket. Start the threads by hand!
You only need to snug the bolts down, DO NOT OVERTIGHTEN!
29. SUBWOOFER LOGO BADGE
Rectangular Domed Logo Badge
Affix the
as shown.
30. ROCK. AND ROLL.
Reinstall remaining trim panels, seats, etc, in the reverse order
they were removed.
That's it! You should be ready to rock and roll. If you aren't
seriously impressed by the sound, something is wrong. Trust us
on this. It should be clean, clear, and balanced. If it isn't, revisit
the steps above or reach out to us for support at 646-926-0011 or
email us at support@integralaudio.com.
