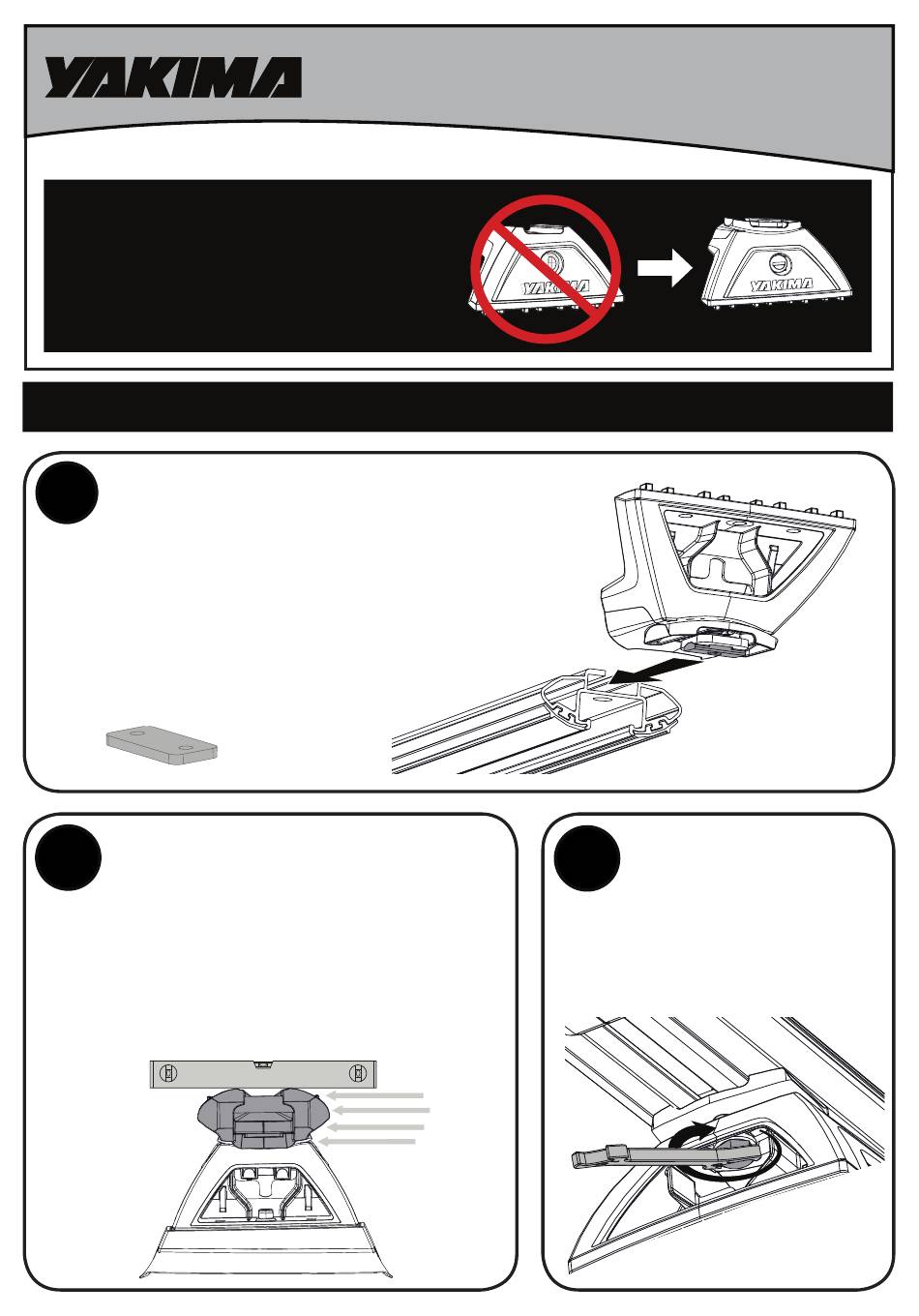

THESE INSTRUCTIONS SUPPLEMENT
THE BAR/LEG INSTALLATION
SECTIONS THAT MAY STILL
FEATURE THE MK1 LEG IN YOUR
VEHICLE FIXED OR TRACK MOUNT
FITTING KIT INSTRUCTION
1
INSERT LEGS
Slide the pre-assembled Leg assemblies into the
underside channel of LockNLoad Bars.
If Leg assemblies will not slide in,
loosen Screws to increase gap.
Note: Nut Plates
are not required.
2
LEVEL BARS - FIXED POINT
With vehicle on a level surface, adjust all
Bar angles to be level using a Spirit Level.
The Bar angle can be adjusted to reduce
any wind noise. In most cases this is
achieved by getting the Bar in-line
with air flow parallel to the ground.
6100003631-Rev0.2
®
LockNLoad Mk2 Leg Kit Instruction
BAR INSTALLATION
Air Flow
FIXED AND TRACK MOUNT KITS
SECURE LEGS TO BARS
3
Tighten all M8 Set
Screws to 9 Nm using
a 13 mm Spanner.
1/2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Yakima LockNLoad Mk2
Summary of Contents for Yakima LockNLoad Mk2
- Page 1 ® LockNLoad Mk2 Leg Kit Instruction FIXED AND TRACK MOUNT KITS THESE INSTRUCTIONS SUPPLEMENT THE BAR/LEG INSTALLATION SECTIONS THAT MAY STILL FEATURE THE MK1 LEG IN YOUR VEHICLE FIXED OR TRACK MOUNT FITTING KIT INSTRUCTION BAR INSTALLATION INSERT LEGS Slide the pre-assembled Leg assemblies into the underside channel of LockNLoad Bars.
- Page 2 PLATFORM LEG MOUNTING INSTRUCTIONS REMOVE LEG DISASSEMBLE LEG COVERS ASSEMBLIES Using the keys Disassemble Leg supplied in the components as LockNLoad Leg Kit shown and store (sold separately), in a safe place. remove all Leg Covers. ASSEMBLE LEGS Assemble each Leg as shown using one Platform Mount Bracket, M8 Coach Bolt and M8 Nut from the LockNLoad Leg Kit.
