Furuno 1715 Operator's Manual

MARINE RADAR MODEL 1715
The purpose of this Operator's Guide is to provide basic operating procedures for this
equipment. For more detailed information see the Operator's Manual.
Power On/Off
Press the POWER/BRILL key to turn the power
on. When turning the power off, press and
hold down the POWER/BRILL key until the
screen goes off.

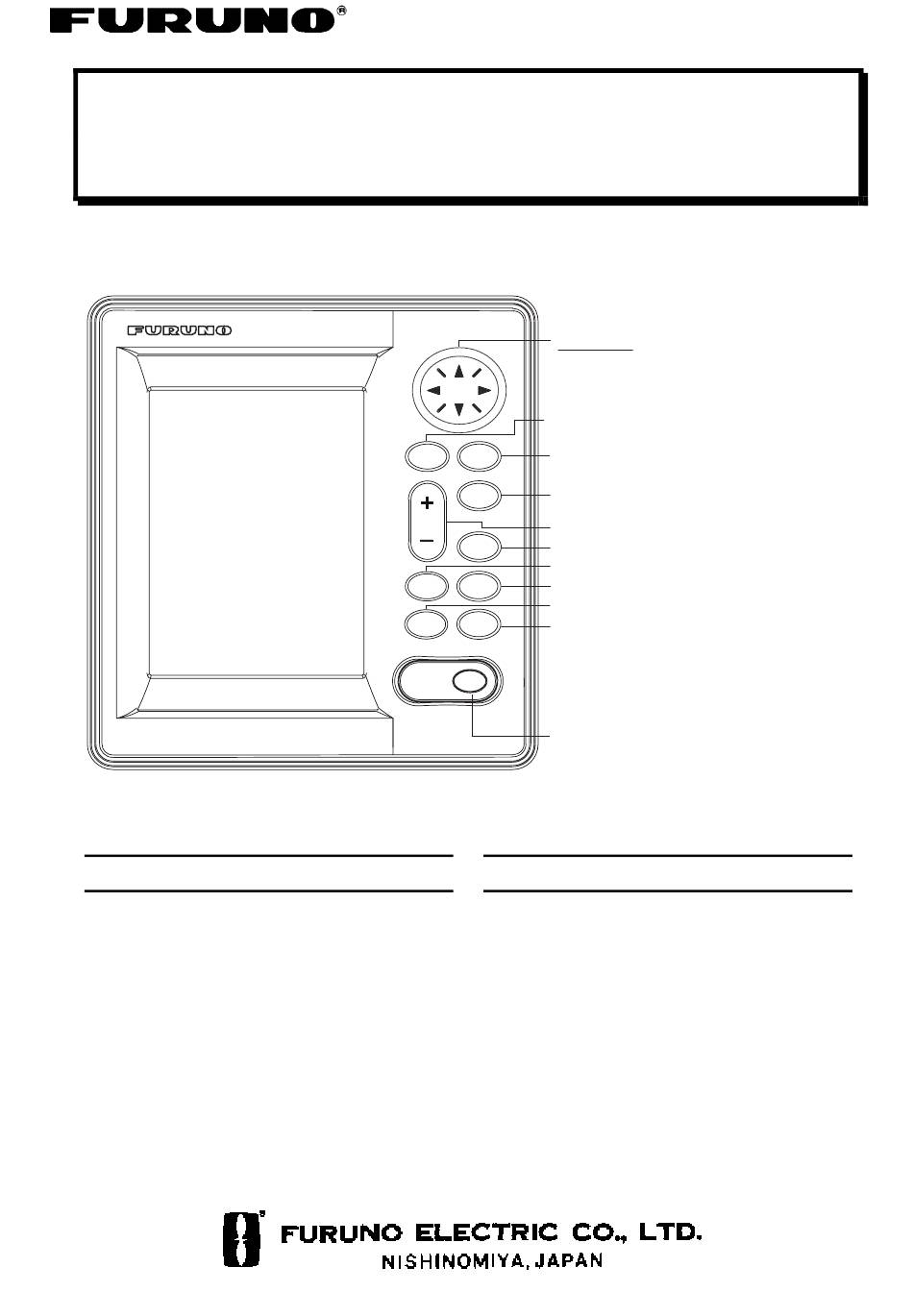

Operator's Guide
MENU
MODE
ESC
GAIN
RANGE
ALARM
EBL VRM
PROG TLL
MARINE RADAR
POWER
1715
MODEL BRILL
Cursor Pad
Chooses menu items;
adjusts VRM, EBL, cursor,
contrast, brilliance and sensitivity.
Sets to TX or ST-BY;
Chooses display mode.
Opens/closes menu;
escapes from current operation.
Opens dialog box for adjustment
of gain, A/C SEA and A/C RAIN.
Chooses radar range.
Enables/disables guard alarm.
Turns EBL on/off.
Turns VRM on/off.
Shortcut key
Outputs chosen target's L/L
position to plotter.
Short press: Turns power on.
Long press: Turns power off.
Momentary press: Opens dialog box for
(power turned on) adjustment of display
Transmitting, Standby
1. Press the POWER/BRILL key
momentarily.
2. Press the MODE key to go to stand-by
and transmit status alternately.
3. Press the MENU/ESC key.
contrast, brilliance
and mode (TX, ST-BY)
selection.
