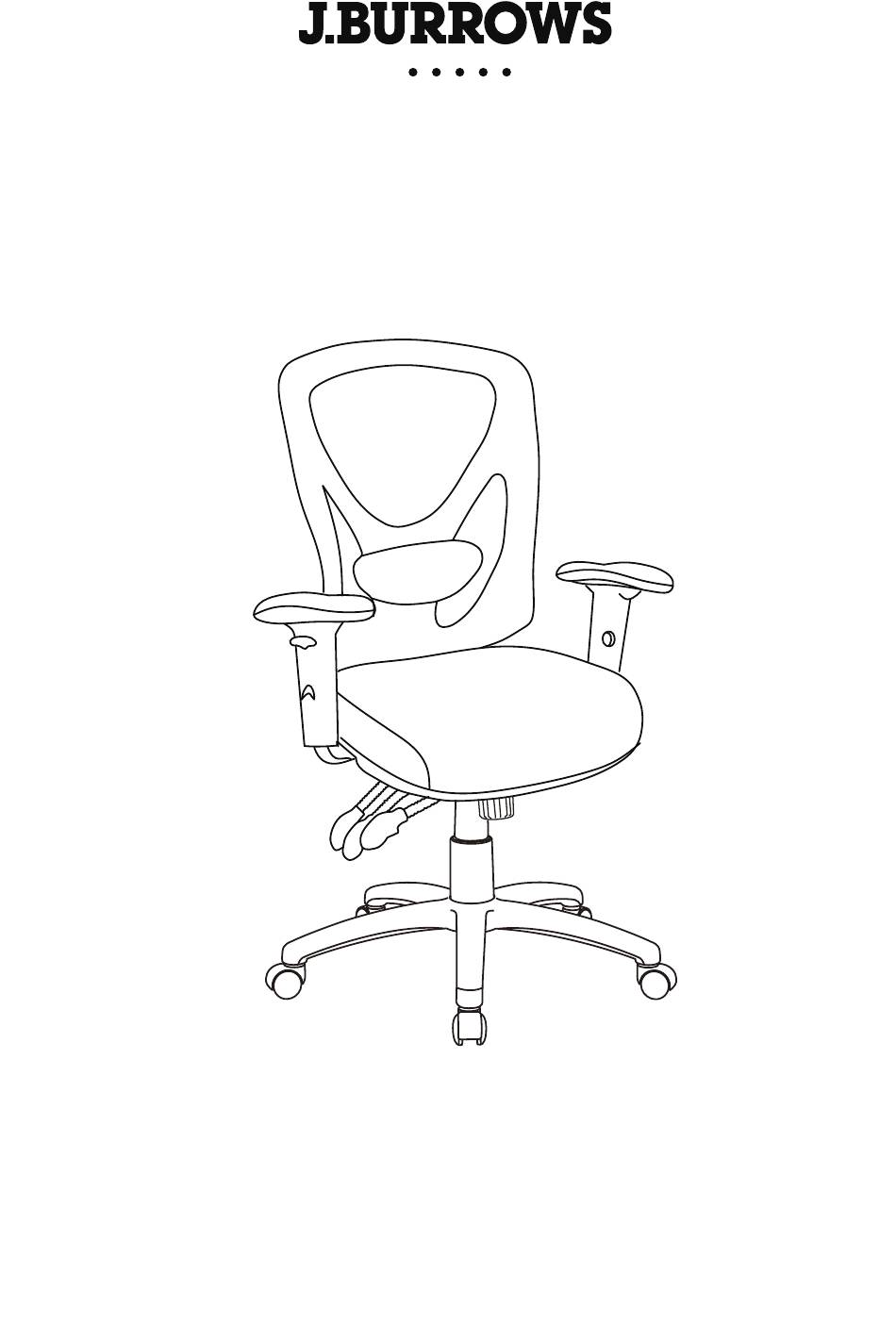

- Page 1 Assembly Instructions DELANEY CHAIR JBDELAMBBK This chair has a load rating of 160kg Page 1...
- Page 2 HARDWARE LIST (5mm) (1/4’’x1-1/5”) (5/16’’x1’’) (5/16’’x1-2/5”) Please check you have all hardware components before assembling. If you are missing any hardware components please contact My Zone on Tel: (03) 9310 3011 or Email: hardware@myzone.net.au Please ensure you have the name of the item, store purchased from, hardware part required and quantity. Please retain your receipt to validate warranty.
- Page 3 Step 1 Note:Turn the Star Base (G) upside down and insert 5 Casters (H) into the holes on the base. Turn the Star Base (G) over and insert Gas Lift (E) with Telescopic Cover (F) through the center hole on top of the Star Base (G). Torque Step 2 5 Nm...
- Page 4 Torque 6 Nm Step 3 FRONT Torque 6 Nm Note:Attach the Seat Plate (D) to the bottom of the Seat Cushion (B) (with the front of the seat plate facing the front of seat cushion).Tighten the screws. Step 4 Note:Place assembled seat on the Gas lift (E).
- Page 5 Step 5 Note: Check to make sure the knob on the rear right side of the Seat Plate (D) is loose before this step. Align Back Cushion (A) with Seat Cushion (B) by GENTLY inserting back support plate into the rear hole of the Seat Plate (D) as shown and TIGHTEN by using the knob on the rear right side of the Seat Plate (D).
- Page 6 Step 7 Your Delaney Chair is now complete and ready for use. IMPORTANT NOTE:Periodically check and re-tighten screws. Officeworks Superstores Pty Ltd 236-262 East Boundary Road East Bentleigh 3165 Australia Page 6...
- Page 7 DELANEY CHAIR FEATURES * Back Tilt - Sitting in the chair pull lever up. Move your upper body fore and aft to a comfortable position. BACK When comfortable lock the position TILT by pushing the lever down. Chair Height Adjustment - To increase chair height pull lever upward while lifting body weight slightly off the seat.
