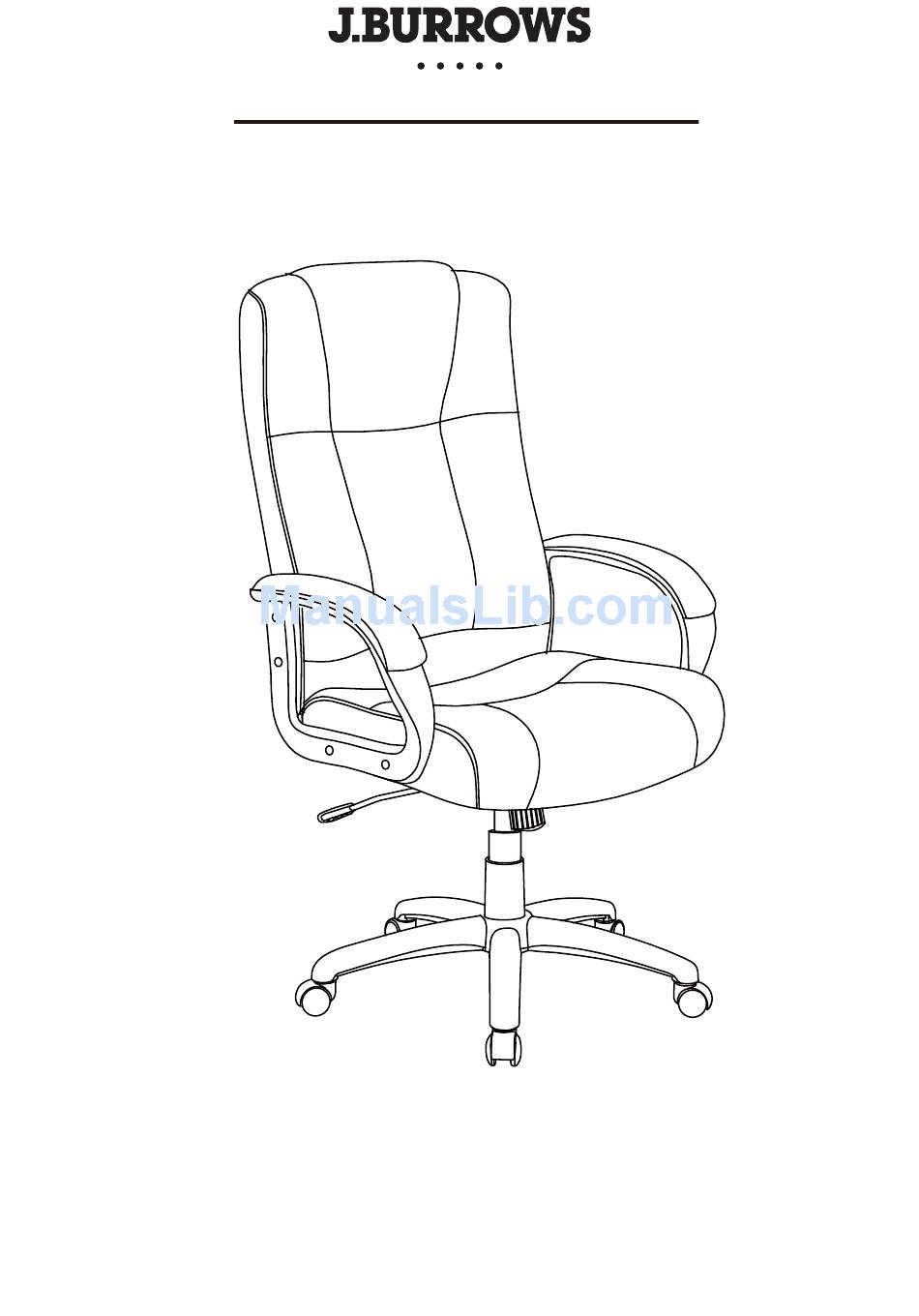

- Page 1 Assembly Instructions Archer Hb Plush Chair JBARCHHBBK This chair has a load rating of 120kg Page 1...
- Page 2 C-L / C-R Please check you have all components before assembling. If you are missing any components please contact My Zone on Tel: (03) 9310 3011 or Email: hardware@myzone.net.au Please ensure you have the name of the item, store purchased from, part required and quantity. Please retain your receipt to validate warranty.
- Page 3 Step 1 Note: Turn the Star Base (G) upside down. Press the Casters (H) into holes at the end of each leg. Turn the Star Base (G) upright and insert Gas Lift (E) into the center hole of Star Base (G). Gas Lift Cover (F) should be in place over Gas Lift (E).
- Page 4 Step 3 Note: Place assembled seat on the Gas Lift (E). Push down firmly until connection is secure. Step 4 Note: Attach Armrests (C) to the assembled Seat Cushion (B) using 4x Screws (J) with Allen Wrench (L). Do not tighten Screws fully until you have completed assembly. Page 4...
- Page 5 Step 5 Note: Attach Back Cushion (A) to Armrests (C) by securing 2x Screws (J) to the lower holes of the Back Cushion (A) as shown. Do not tighten Screws fully until Step 7. Step 6 Note: Push the Back Cushion (A) to the upright position. Assemble 2x Screws (J) into the top holes of Back Cushion (A).
- Page 6 Step 7 Note: Fully tighten all Screws (J) with Allen Wrench (L). Press the Plastic Caps (K) into the Armrest holes to cover the screws. Step 8 Your Archer Hb Plush Chair is now complete and ready for use. IMPORTANT NOTE: Periodically check and re-tighten screws. Officeworks Superstores Pty Ltd 236-262 East Boundary Road East Bentleigh 3165 Australia...
- Page 7 ARCHER HIGH BACK CHAIR FEATURES * Chair Height Adjustment ‐ To increase chair height pull lever upward while lifting body weight slightly off the seat. ‐ Release lever at desired height. ‐ To lower chair height sit fully into the chair and pull lever upward. ‐ Release lever at desired height. * Chair Tension Function ‐ Pull lever out to unlock & allow chair to tilt back & forth. ‐ Push lever to lock. Chair will have slight movement in locked position. * Adjustable Chair Tension Speed ‐ Turn continuously to adjust how quickly chair tilts back & forth. Note: If adjusting while sitting in chair: Turn knob left to tighten tension. Turn knob right to loosen tension. ...
