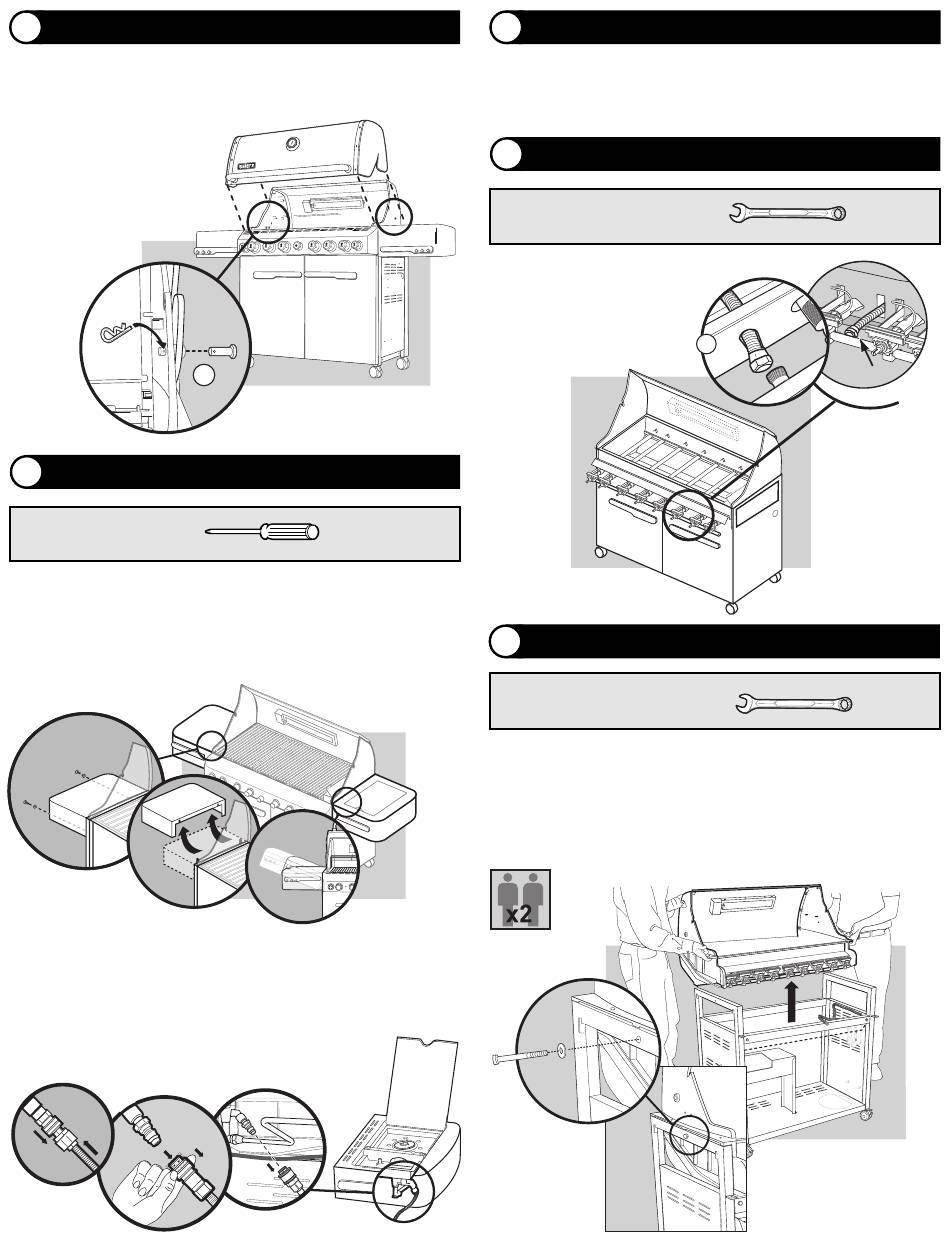

SHROUD REMOVAL

Shroud Assembly Removal:
A) Lift the shroud to the open position, remove the cotter pins out of the clevis
pins (1). Close the shroud, remove the clevis pins.
B) Lift and remove the shroud.
3
1

SIDE TABLES REMOVAL

TOOLS NEEDED:

Left Side Table Removal:
A) Remove the two (2) screws and washers from the underside of the left
side table and remove left side table assembly, using a Phillips head
screwdriver.
B) If your grill doesn't have a right side burner assembly: Remove the two
(2) screws and washers from the underside of the right side table and
remove right side table assembly.
Right Side Burner Assembly Removal (470 & 670 MODELS):
A) Lift the side burner lid. Remove side burner components from the top of
the side burner assembly.
B) Remove quick-disconnect gas line from the side burner control valve
assembly.
C) Remove the two (2) screws and washers from the underside
of the right side burner table. Remove side burner table
assembly.
1
- PHILLIPS
4
1

COOKBOX COMPONENTS REMOVAL

Grates and Flavorizer® Bars Removal:
A) Remove the cooking grates & Flavorizer
B) 470 AND 670 MODELS: Remove the smoker box, rotisserie motor and
bracket (not pictured).
5
1

MAIN GAS LINE REMOVAL

TOOLS NEEDED:
Main Gas Line Removal:
A) Remove the main gas line
from the manifold assembly
(1) using a 7/8" wrench.
B) Let the main gas line to rest
on the cabinet of the grill.
6
1
COOKBOX REMOVAL
TOOLS NEEDED:
Cookbox Assembly Removal:
A) Remove the two (2) cookbox bolts, nuts and washers from both sides
of the frame, using a 7/16" wrench. The cookbox nut is located inside of
cookbox (not pictured).
B) Lift out the whole cookbox assembly from the frame.
Make sure the manifold does not catch on the frame when
removing the cookbox assembly.
®
bars (not pictured).
- 7/8"
1
- 7/16"
