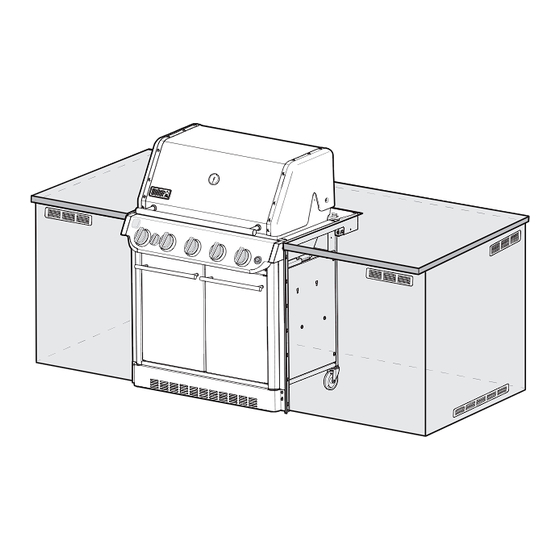

BUILT-IN GAS GRILL
SB38 S
Installation Guide
REGISTER TODAY
Register your gas grill and receive special content to make
you the ultimate backyard hero.
Scan the QR Code or register online at weber.registria.com
Keep this Owner's Manual for future reference, thoroughly read through it, and
if you have any questions please contact us today.
NG
8652245
031424
enUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SUMMIT SB38 S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Weber SUMMIT SB38 S

  • Page 1 REGISTER TODAY Register your gas grill and receive special content to make you the ultimate backyard hero. Scan the QR Code or register online at weber.registria.com 8652245 031424 Keep this Owner’s Manual for future reference, thoroughly read through it, and enUS if you have any questions please contact us today.
  • Page 2: Important Safety Information

    • An LP cylinder (tank) not permanently open; sliding doors, garage doors, windows, site. Log onto www.weber.com. or screened openings are not considered as permanent m WARNING: Do not let the cord hang over the edge of a connected for use shall openings.
  • Page 3: Configuration Options

    Configuration Options “ISLAND” STRUCTURE CONFIGURATION OPTIONS Recommended Gas Supply Locations There are several configuration options for the grill and gas supply access of your Island structure. The 3 common options (A, B, C) are illustrated in the ‘Island’ Structure Configuration Options” table. If there are local codes that apply to “built-in”...
  • Page 4: General Construction

    General Construction The SUMMIT Built-In unit should be on site before construction begins. For ease of installation, the grill will be pushed on its casters into the built-in structure. The installation of this grill requires a level floor pad surface (1) and countertop surface. The floor pad surface must be constructed from solid materials and must be level and smooth.
  • Page 5: Clearances From Combustible Materials

    Positioning Your Grill CLEARANCES FROM COMBUSTIBLE MATERIALS When determining a suitable location for your grill installation, give thought to concerns such as exposure to wind, proximity to traffic paths, and keeping any gas supply lines as short as possible. Never locate the grill in a garage, breezeway, or shed, under an unprotected overhang, or in any other enclosed area.
  • Page 6 Never locate the access for the quick-disconnect fitting and regulator service where it will be obstructed after installation is complete. WEBER recommends that a manual shutoff valve also be installed in an easily accessible location. The gas supply enclosure shall house the included hose and regulator assembly.
  • Page 7 Typical NG Grill Pipe Installation lengths greater than 50 feet. • Gas piping may be copper tubing, type K or L; polyethylene plastic tube, with a minimum wall thickness of .062"; or INSIDE HOUSE standard weight (schedule 40) steel or wrought iron pipe. •...
  • Page 8 BUILT-IN CUTOUT DETAILED DIMENSIONS - LOCATING THE STRUCTURE NEAR A COMBUSTIBLE WALL SB38 E/S 24" (610 mm) minimum* Minimum from cutout edge to combustible construction. 0" (0 mm) minimum** 12" (305 mm) 4" (102 mm) ⁄ " (673 mm) 36" (914 mm) maximum ⁄...
  • Page 9 BUILT-IN CUTOUT DETAILED DIMENSIONS - LOCATING THE STRUCTURE NEAR A NONCOMBUSTIBLE WALL SB38 E/S 24" (610 mm) minimum* Minimum from cutout edge to combustible construction. 0" (0 mm) minimum** 12" (305 mm) 4" (102 mm) ⁄ " (673 mm) 36" (914 mm) maximum ⁄...
  • Page 12: Tools Included

    m Assemble grill on a flat, level, and soft surface. TOOLS INCLUDED: TOOLS REQUIRED: m Remove protective film from stainless steel parts before installing. m Do not use power tools for assembly. - 7/16" m Three people required for assembly. m There may be visual differences between illustrations and model purchased.
  • Page 13 Hardware...
  • Page 14 Micro USB...
  • Page 16 Micro USB For information on using an external power bank, refer to “Connecting an External Power Bank” in the Owner’s Manual.
  • Page 18 m Save hardware. Prepare Barbecue for Installation: Now that the barbecue cabinet and trim pieces have been assembled, check that all parts assembled up to this point are in place and fasteners are fully tightened. Place the barbecue directly in front of the cut-out opening of the built-in structure to prepare for installation.
  • Page 19 Push barbecue into cutout opening and lock the front casters. Rotate the front casters to tuck them beneath the cabinet.
  • Page 20: Connection Chart

    CONNECTION CHART Connect Gas Supply A 58 inch (147 cm) main corrugated gas line is connected to the manifold of the grill. A) Pass the main corrugated gas line through the “island” structure cavity to the bulkhead inside the gas supply enclosure (1). B) Connect the main corrugated gas line to the ⁄...
  • Page 21 The included filler strips may be used to fill any gaps at the countertop or front of the barbecue. Install as needed. Refer to your Weber Crafted Outdoor Kitchen Collection accessory instructions. Refer to Owner’s Manual for features and usage.
  • Page 22 Refer to Owner’s Manual for features and usage. Refer to Owner’s Manual for features and usage. Refer to Owner's Manual for operating the rotisserie...
  • Page 24 WEBER-STEPHEN PRODUCTS LLC www.weber.com © 2024 Designed and engineered by Weber-Stephen Products LLC, 1415 S. Roselle Road, Palatine, Illinois 60067 USA.
