Installation Manual
SERIES 300
SERIES 400 Panel PC
SERIES 500 Thin Clients
Installation Manual version:
Operator Interfaces
Device platform EAGLE
ET-xx6 / MT-xx6
Issue date:
HW-Rev. ET-xx6-A-FX:
HW-Rev. ET-xx6-A-TX:
HW-Rev. ET-xx6-A-FX-BT:
HW-Rev. ET-xx6-A-TX-BT:
HW-Rev. ET-3x6-A-FX-BS:
HW-Rev. ET-3x6-A-TX-BS:
01.00.02
23.07.2018
03.00.12
03.00.22
03.00.16
03.00.26
03.00.17
03.00.27
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Stahl ET 6-A Series
Summary of Contents for Stahl ET 6-A Series

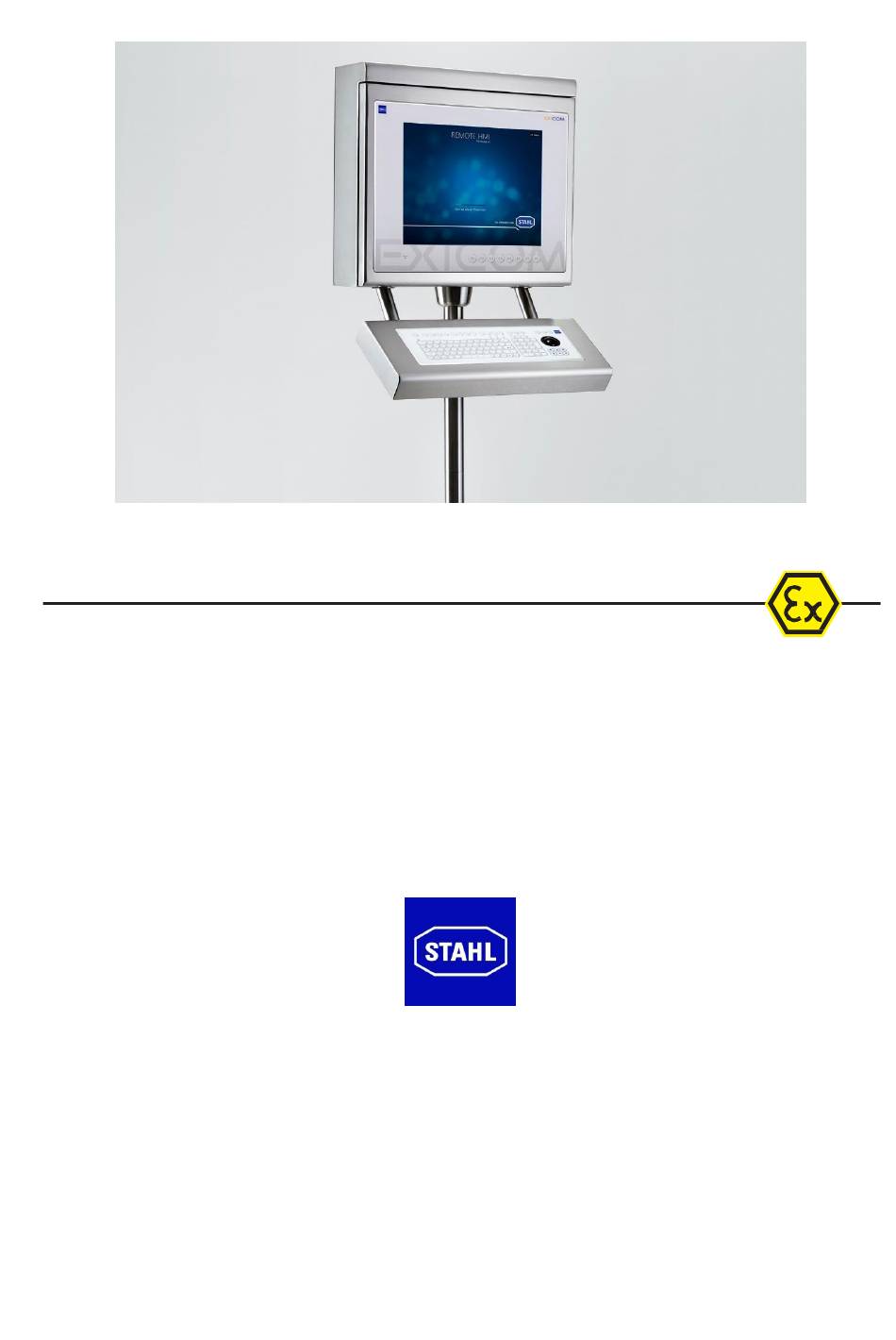

- Page 1 Installation Manual SERIES 300 Operator Interfaces SERIES 400 Panel PC SERIES 500 Thin Clients Device platform EAGLE ET-xx6 / MT-xx6 HW-Rev. ET-xx6-A-FX: 03.00.12 HW-Rev. ET-xx6-A-TX: 03.00.22 HW-Rev. ET-xx6-A-FX-BT: 03.00.16 HW-Rev. ET-xx6-A-TX-BT: 03.00.26 HW-Rev. ET-3x6-A-FX-BS: 03.00.17 HW-Rev. ET-3x6-A-TX-BS: 03.00.27 Installation Manual version: 01.00.02 Issue date: 23.07.2018...
-
Page 2: Publisher
Trademark The terms and names used in this document are registered trademarks and / or products of the companies in question. Copyright © 2018 by R. STAHL HMI Systems GmbH. Subject to alterations. Page 2 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 3: Table Of Contents
Stand or enclosure equipotential bonding / earthing Ethernet interface TX / FX 8.3.1 Ethernet interface copper connection TX (X11) 8.3.2 Ethernet optical fiber interface FX (X10) Release notes R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 3 of 23... -
Page 4: Intended Use And Location
Extreme ambient conditions (high humidity, temperature) may, in rare cases, result in blistering or air-pockets underneath the foil touch screen. This does not impede functionality and is a purely optical phenomenon. Page 4 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 5: Enclosure Types
HSG-xx6-VxA-CFR with front door as standard with front door for cleanroom HSG-xx6-VxA-BD HSG-xx6-VxA-FRS with rear door (Backdoor) wall mounting for 10.4" and 15" panel-mount devices only R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 5 of 23... -
Page 6: Versions Mounted On Stand Or Elbow
Installation Manual ET-/MT-xx6 Versions mounted on stand or elbow Versions mounted on stand or elbow mounted upright on elbow mounted hanging from elbow MPFL stand Page 6 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 7: Mounting
In regards of different applications and ambient conditions we recommend following installation types: Mounting options Mounted on stand Ceiling mounting Elbow upright mounting Mounted hanging from elbow Wall mounting (for 10.4" and 15" panel-mount devices only) R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 7 of 23... -
Page 8: Recommended Mounting Type
Change cycle 1 oct/min hanging, with / without Not recommended Operating mode 1.2 external keyboard X, Y, Z axes Wall mounting No restriction with / without external keyboard Page 8 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 9: Assembly Notes
1x Allen key 5 mm Mounting the stand or wall-mounting will require other tools not NOTE specified here. Mechanical Installation CAUTION Always have two people mount the devices. R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 9 of 23... -
Page 10: Dimensions
Installation Manual ET-/MT-xx6 Mechanical Installation Dimensions Dimensions in mm. HSG-xx6-VxA-FR Device ET-/MT-x06 ET-/MT-x16 34° ET-/MT-x36 ET-/MT-x56 34° HSG-xx6-VxA-CFR Device ET-/MT-x06 ET-/MT-x16 34° ET-/MT-x36 ET-/MT-x56 34° Page 10 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... - Page 11 Alternative mounting position of the mounting tongues Choose suitable mounting screws, rawlplugs and bolts depending on NOTE the actual local requirements and possibilities. Enclosure dimensions Mounting tongue dimensions 10.5 10.5 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 11 of 23...
-
Page 12: Stand Mounting
Stand mounting 7.2.1 View 7.2.2 MPFL Stand Dimensions in mm. Stand 1216 Ø 60.3 Ø 88.9 Cable glands M25 x 1.5 M25 x 1.5 M20 x 1.5 Page 12 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 13: Mounting - Step By Step
Choose suitable mounting screws, rawlplugs and bolts depending on NOTE the actual local requirements and possibilities. 8x Ø16 See dimensions "stand" Earthing of stand (See 8.1 Connection of power supply) R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 13 of 23... - Page 14 Mechanical Installation Coupling (pre-mounted) mounting holes, for hanging mount mounting holes, for upright mount enclosure operating device mounting holes in the enclosure of the operating device Page 14 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018...
- Page 15 Installation Manual ET-/MT-xx6 Mechanical Installation M6 Allen screw mounting coupling stand / wall bracket R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 15 of 23...
- Page 16 Installation Manual ET-/MT-xx6 Mechanical Installation tighten all 4 screws with a torque of 10 Nm Page 16 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018...
- Page 17 Installation Manual ET-/MT-xx6 Mechanical Installation Connection bolt for equipotential bonding. Already wired to the multiple connection (*2) in operator stations (OS). R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 17 of 23...
- Page 18 Installation Manual ET-/MT-xx6 Mechanical Installation FRS enclosure Connection bolt for equipotential bonding. Already wired in operator stations (OS). Connection for equipotential bonding. See 8.1 Connection power supply Page 18 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018...
-
Page 19: Electrical Installation
Stand or enclosure equipotential bonding / earthing see 7.2.3 step 2 Stand mounting plate Washer 2x Toothed washer Hexagon screw M6x16 Split washer Cable lug with eyelet R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 19 of 23... -
Page 20: Ethernet Interface Tx / Fx
Ethernet interface copper connection TX (X11) e.g. cable: VB-TP-CAT5-Exe-RJ45-Patch correct twist Yellow Orange White Blue wrong clamping bracket shielding Pin Signal Colour Note Connection Yellow 100Base-TX interface twist Orange White Blue Page 20 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... -
Page 21: Ethernet Optical Fiber Interface Fx (X10)
Ethernet optical fiber interface FX (X10) Multi-mode optical fibre cable with 62.5 µm core cross section and 125 µm external cross section. Ethernet FX (X10) SC duplex connector R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018 Page 21 of 23... -
Page 22: Release Notes
Text, layout and formal corrections Version 01.00.02 Addition of section "Warning - Touch operation" Changing HW Rev at cover for BT / BS devices Page 22 of 23 R. STAHL HMI Systems GmbH / IM_ET_MT-xx6_en_V_01_00_02.docx / 23.07.2018... - Page 23 R. STAHL HMI Systems GmbH Adolf-Grimme-Allee 8 D 50829 Cologne Phone: (switchboard) +49 (0) 221 76 806 - 1000 (hotline) - 5000 Fax: - 4100 E-mail: office@stahl-hmi.de (hotline) support@stahl-hmi.de www.r-stahl.com www.stahl-hmi.de...
