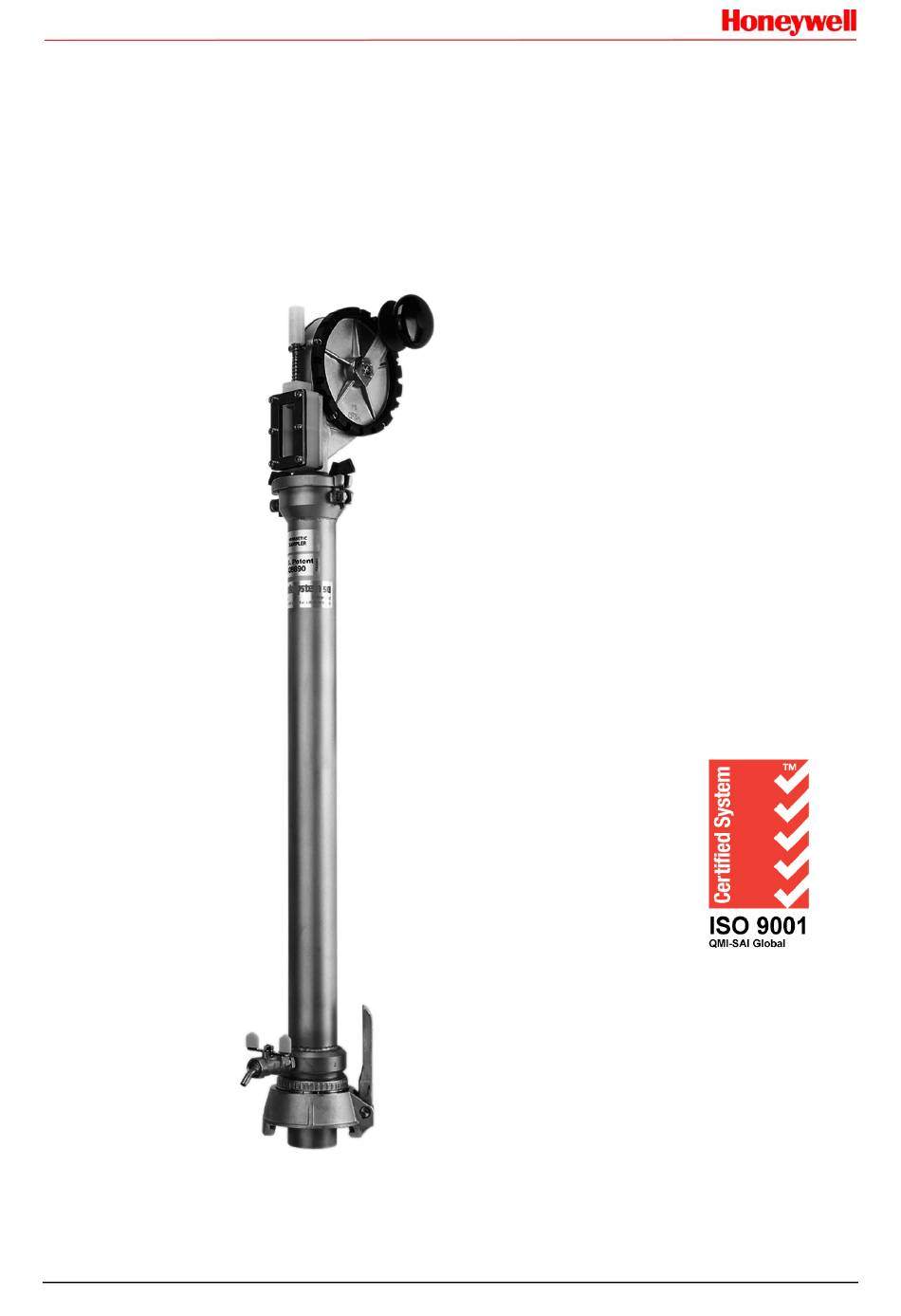

Operation and Service Manual for Industrial HERMetic Sampler GTX Chem Portable Closed Sampling Device Note: Before using the instrument please read this book. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
PERATING THE RUNNING SAMPLING BOTTLE PERATING THE CARE & MAINTENANCE AFETY WARNING AMPLE CLEANING APE CLEANING APE WIPER ADJUSTMENT OR REPLACEMENT APE REPLACEMENT EARINGS SPECIFICATIONS DRAWINGS & DECLARATION OF CONFORMITY AMPLER ALVES ECLARATION OF ONFORMITY 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
For further guidance refer to International Safety Guide for Oil Tankers and Terminals (ISGOTT), ISBN 10 85609 291 7, Fith Edition 2006, or consult the appropriate Legislative Authority for the installation. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
The Purchaser shall bear the the warranty is limited to the replacement of cost risk transportation parts or complete goods. defective parts repaired parts supplied in replacement of such defective parts. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
TS number and description. Refer to section “Drawings”. Some spares might be repairable; in this case send part to any authorized service center or to the factory. In case of urgency replacement units can be available while stocks last. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
Page 6
..........................................................................................................................................Do you want a quotation before repair is started:..yes / no..... Repaired unit has to be returned to the following address: ................................................................................................................................................................50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
All these bottle are interchangeable, please refer to § 6.1. For specific application, other bottles exist. For further information, please contact. The sampler is delivered as standard with zone sampling bottle. All other sampling bottles are available as option. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
If the instrument is connected to genuine HERMetic valve, grounding is effected through the quick connect coupler and the mating nipple of the valve. No additional grounding strap is necessary. For further information, please refer to §2 “Recommendation for safe use”. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
The opening of the bottle valve is realized by lowering the sampling bottle until its sitting on the ball of the valve. A pump can be used to accelerate and complete the transfer of the fluid. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
Nota: Clean the instrument of any excess of liquid after use. Remove the carter winder and clean the storage tube. This cleaning must be done very properly, in particular when corrosive liquids are gauged, such as strong acids or caustic soda for instance. Store the instrument in a dry location. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
15. Open the HERMetic 2” ball valve no more than 30° to drain any residual liquid back into the tank. 16. After draining close the HERMetic 2” ball valve. 17. Remove the HERMetic Sampler GTX Chem from the HERMetic 2” ball valve. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
15. Open the HERMetic 2” ball valve no more than 30° to drain any residual liquid back into the tank. 16. After draining close the HERMetic 2” ball valve. 17. Remove the HERMetic Sampler GTX Chem from the HERMetic 2” ball valve. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
15. Open the HERMetic 2” ball valve no more than 30° to drain any residual liquid back into the tank. 16. After draining close the HERMetic 2” ball valve. 17. Remove the HERMetic Sampler GTX Chem from the HERMetic 2” ball valve. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
15. Open the HERMetic 2” ball valve no more than 30° to drain any residual liquid back into the tank. 16. After draining close the HERMetic 2” ball valve. 17. Remove the HERMetic Sampler GTX Chem from the HERMetic 2” ball valve. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
Check periodically (at least every 6 months) the continuity of grounding by measuring the electrical resistance between the hook lock (or the sampling bottle) and the quick connect coupler. Resistance should not exceed 100 Ω. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
Check the tape winder for gas tightness (0.3 bar, 4.4 psi) before using again. 7.7 Bearings Bearings are involved in the electrical safety of this device. In case of exchange, use only original spare parts. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
II 1 G c IIB T6 (Ta -20 to +80°C) Tape cleaning device Adjustable tape cleaner Available bottles Zone, bottom, spot, running sampling bottles Maintenance modular design / easy exchange of parts Specifications subject to change without notice. 50470/SGTX/0909 Industrial HERMetic Sampler GTX Chem...
