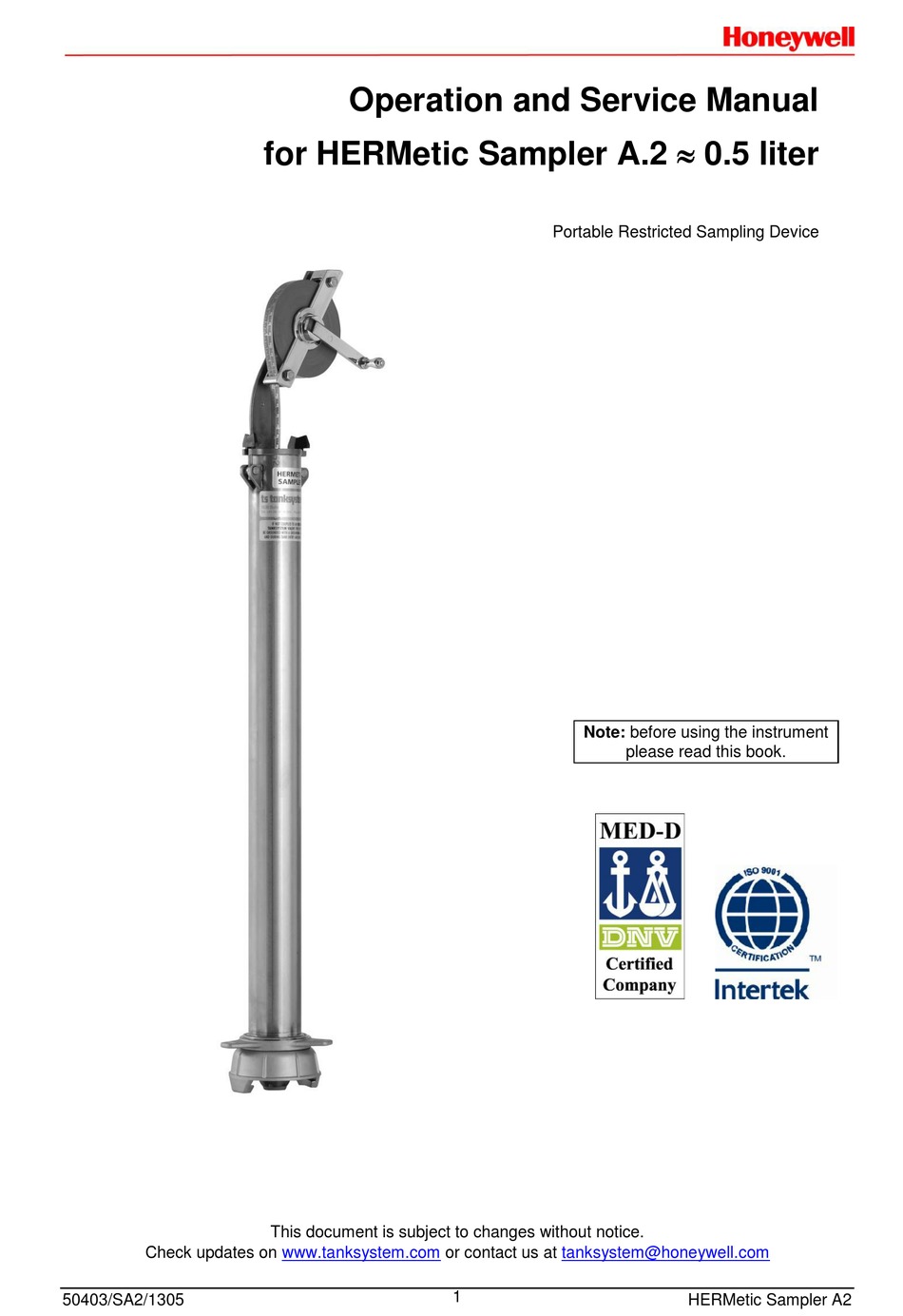

Operation and Service Manual for HERMetic Sampler A.2 0.5 liter Portable Restricted Sampling Device Note: before using the instrument please read this book. This document is subject to changes without notice. Check updates on www.tanksystem.com or contact us at tanksystem@honeywell.com...
This device is a portable product. It must not be permanently installed on the tank and must be disconnected after use and stored in a safe and dry area. 50403/SA2/1305 HERMetic Sampler A2...
The Purchaser shall bear the caused by the operation of its product and cost risk transportation the warranty is limited to the replacement of defective parts repaired parts parts or complete goods. supplied in replacement of such defective parts. 50403/SA2/1305 HERMetic Sampler A2...
If it is determined that the customers equipment is contaminated, it will be returned to the customer at the customers expense. Contaminated equipment will not be repaired until such time that the customer decontaminates said equipment. 50403/SA2/1305 HERMetic Sampler A2...
Page 6
Short description of defective unit or part: ..........................................................................................................................................................................Do you want a quotation before repair is started:..yes / no..... Repaired unit has to be returned to the following address: ................................................................................................................................................................50403/SA2/1305 HERMetic Sampler A2...
5. Description 5.1 General The HERMetic Samplers are designed for sampling of liquids or chemicals, which present a Fire-, Health- or Air pollution Hazard. The equipment is designed for use in potentially explosive atmospheres area. 5.2 Sampling types Several kinds of samples can be realised with this sampler. To get different samples, 4 bottles are available: Zone bottle, Spot bottle, Running bottle and Bottom bottle.
5.3.1 Connection and grounding system All HERMetic products are easy to connect. Indeed, all HERMetic devices are equipped with a quick coupler for connection on a HERMetic ball valve. Place the unit on the appropriate valve and activate the locking system. Depending on the locking system, either rotate the collar and actuate the lever or pull on the sleeve.
5.3.3 Liquid transfer To transfer the fluid, no additional equipment is necessary. Just remove the sampling bottle through bottom of Sampler and pour its content into an appropriated laboratory bottle. 50403/SA2/1305 HERMetic Sampler A2...
Nota: Clean the instrument of any excess of liquid after use. Remove the winder holder and clean the storage tube. This cleaning must be done very properly, in particular when corrosive liquids are gauged, such as strong acids or caustic soda for instance. Store the instrument in a dry location. 50403/SA2/1305 HERMetic Sampler A2...
2” neck diameter. Reassemble the bottle and cover to the sampler. Remove the sampler from the valve. Reinstall the 2” cover on top of the valve. Clean the equipment after use and check it for proper functioning. 50403/SA2/1305 HERMetic Sampler A2...
Reassemble the bottom bottle and the cover to the sampler. Remove the sampler from the valve. Reinstall the 2” cover on top of the valve. Clean the equipment after use and check it for proper functioning. 50403/SA2/1305 HERMetic Sampler A2...
Reassemble the spot bottle and the cover to the sampler. Remove the sampler from the valve. Reinstall the 2” cover on top of the valve. Clean the equipment after use and check it for proper functioning. 50403/SA2/1305 HERMetic Sampler A2...
Reassemble the running bottle and the cover to the sampler. Remove the sampler from the valve. Reinstall the 2” cover on top of the valve. Clean the equipment after use and check it for proper functioning. 50403/SA2/1305 HERMetic Sampler A2...
Resistance should not exceed 100 . 7.3 Sampler cleaning To clean HERMetic Sampler A2, winder holder can be easily removed and sampling bottle detached from tape. It is required to fit the cleanliness level with the sample goals. Where appropriate, dismantle the winder holder and clean the parts with an appropriate cleaner to prevent any contamination of the sample by the sampler itself.
Put back the tape wiper. Put back the winder holder and tighten the 2 screws. Storage of HERMetic devices For a proper storage of HERMetic products (UTImeter, Sampler, Thermometer and related spare- parts…), we recommend: Clean the devices after use, •...
These documents are enclosed in following pages. 9.1 Sampler O = Option, according to specific order. DESCRIPTION 20319 10042 Hermetic Sampler A2-0,5 l. 30 m 30386 10302 Winder tape 30 m metric/inch 40796 10369 Tape assy w/o winder 30 m...
