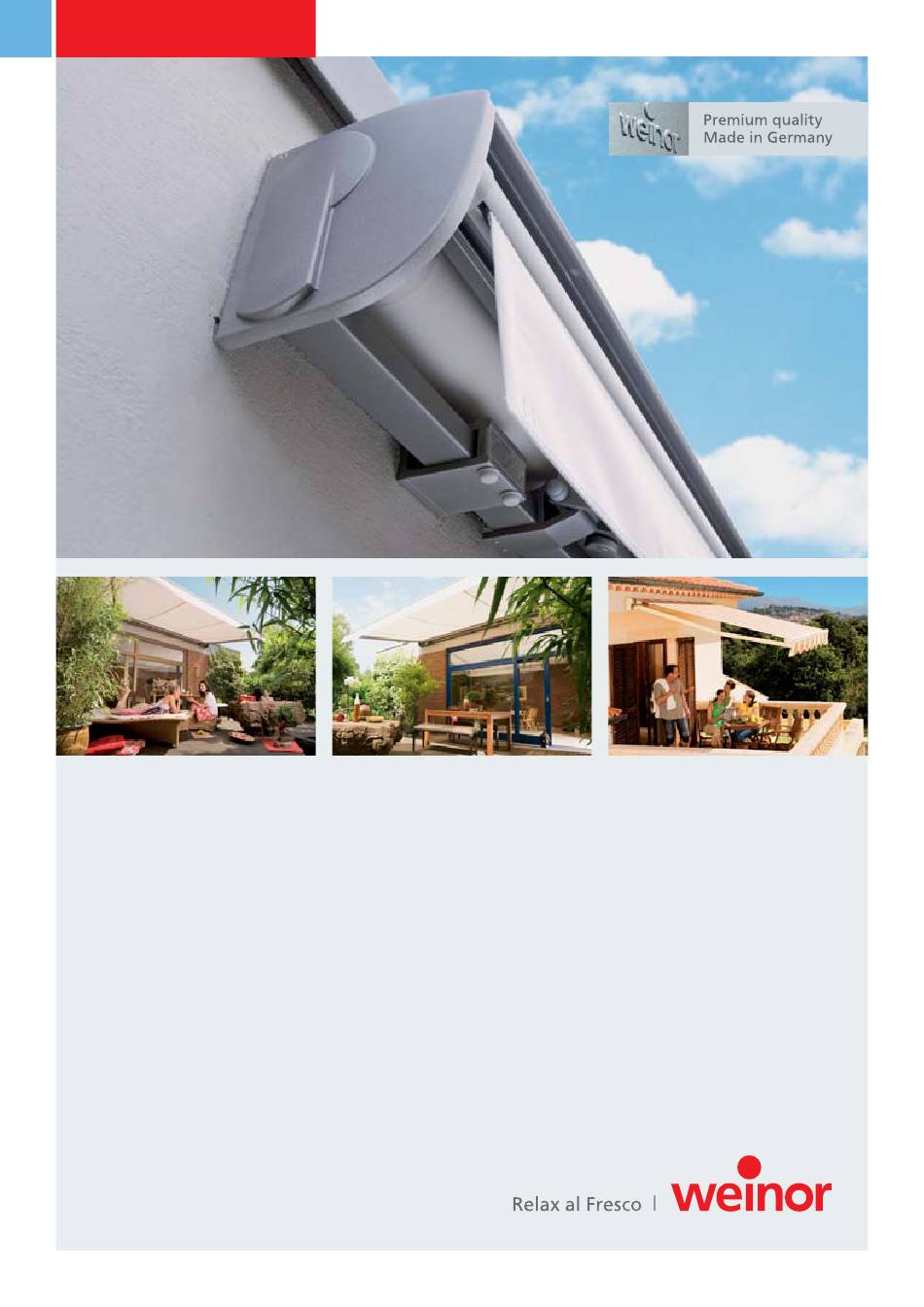

- Page 1 The open awning Topas Topas with top profile | Topas without top profile www.weinor.com...
-
Page 2: Table Of Contents
Topas Contents Planning/measuring Product highlights Cross-sections Awning fabrics Installation options Frame colours Extraction forces BiConnect remote control Automatic weather control and accessories... - Page 3 Topas: simply stable – the classic entry-level model The Topas is a classic entry-level awning for anyone wanting to save money without sacrificing quality. Its uncomplicated technology makes it stable and wind-resistant. When open, the awning stands out for...
-
Page 4: Product Highlights
Topas at a glance weinor Topas highlights Without top profile With top profile weinor LongLife arm Multi-section units with roller support cradle or jockey cover... - Page 5 Product benefits in detail Simple and stable: the weinor Topas highlights Open or with a top profile – classic design with the latest technology With its simplified technology the • stable front rail weinor Topas is stable yet retains a •...
- Page 6 Product benefits in detail standard optional weinor Topas versions unavailable Topas with top profi le Topas without top profi le Technology Max. width, 700 cm/1,200 cm 700 cm/1,200 cm 1-section/2-section with jockey cover Max. projection 400 cm 400 cm Cassette size (W x H)
-
Page 9: Awning Fabrics
• fabric width: 120 cm/240 cm • fabric width: 120 cm Wide range of frame colours – abundance of choices weinor coats all of its products in • 47 standard RAL frame colours, its own workshop. This ensures that silk gloss (gloss level 70 ± 5% they have the best-possible colour when measured at a 60°... - Page 11 Remote control weinor BiConnect – coordinated control for awning, light and heating (optional) The awning comes as standard with There are handheld transmitters one motor and can optionally be with different numbers of channels: controlled with the pre-programmed choose from 1, 5 or 15 channels BiConnect remote control.
-
Page 12: Biconnect Remote Control
• option: 150 special RAL colours targeted warmth • universal bracket makes it easy • operate and dim using BiConnect to retrofit remote control • TÜV tested Some options incur a surcharge. Please refer to the weinor awnings price list for costs. -
Page 13: Planning/Measuring
551 – 600 Wall installation on C20/25 concrete with up to 601 – 650 200 mm facing, wind resistance class 2 and a 651 – 700 permissible centric tensile load of 5.71 kN for anchor bolts Standard Topas wall bracket (85 mm) -
Page 14: Cross-Sections
Cross-sections of Topas with and without top profile Cross-section of Topas without top profile Cross-section of Topas with top profile... -
Page 15: Installation Options
Wall installation ø 9 34.5 Wall bracket, 85 mm Wall bracket, 260 mm Side view of Topas with top profi le fi tted to a wall... - Page 16 Minimum spacing distances for installation at least 10 mm Ceiling Side Side wall wall at least 10 mm at least 10 mm Ceiling installation 17 51 42.5 Side view of roofl ess Topas with roller support cradle bearing and compact ceiling bracket...
- Page 17 Rafter installation Right-hand rafter bracket Rafter bracket with mounting plate for right-hand rafter weinor recommends using the mounting- plate for rafter brackets. Rafter bracket Side view of rafter installation with roofl ess Topas...
-
Page 18: Extraction Forces
Extraction forces for wall installation Extraction forces for Topas Wall mounting on C20/25 concrete with up to 200 mm of facing, extraction force in N per upper fixing for wall bracket The extraction force is the force with which the... - Page 19 Extraction forces for ceiling installation Extraction forces for Topas Ceiling installation (on C20/25 concrete) Extraction forces in N for ceiling mounting 1 ceiling bracket with standard wall Projection in cm Width bracket (85 mm), in cm 1 ceiling bracket with standard wall...
- Page 20 Patio roof with SUPER LITE fixed glazing Glasoase® with Patent no EP1310609 1541776 EP0916781 0994221 conservatory awning and 1403442 2072709 EP0959195 1206609 all-glass elements 1382770 0745742 EP0942114 1099808 Last revised: 05/2015 The current issue can be found at www.weinor.de/fachpartner/service/downloadcenter 116462 www.weinor.com...
