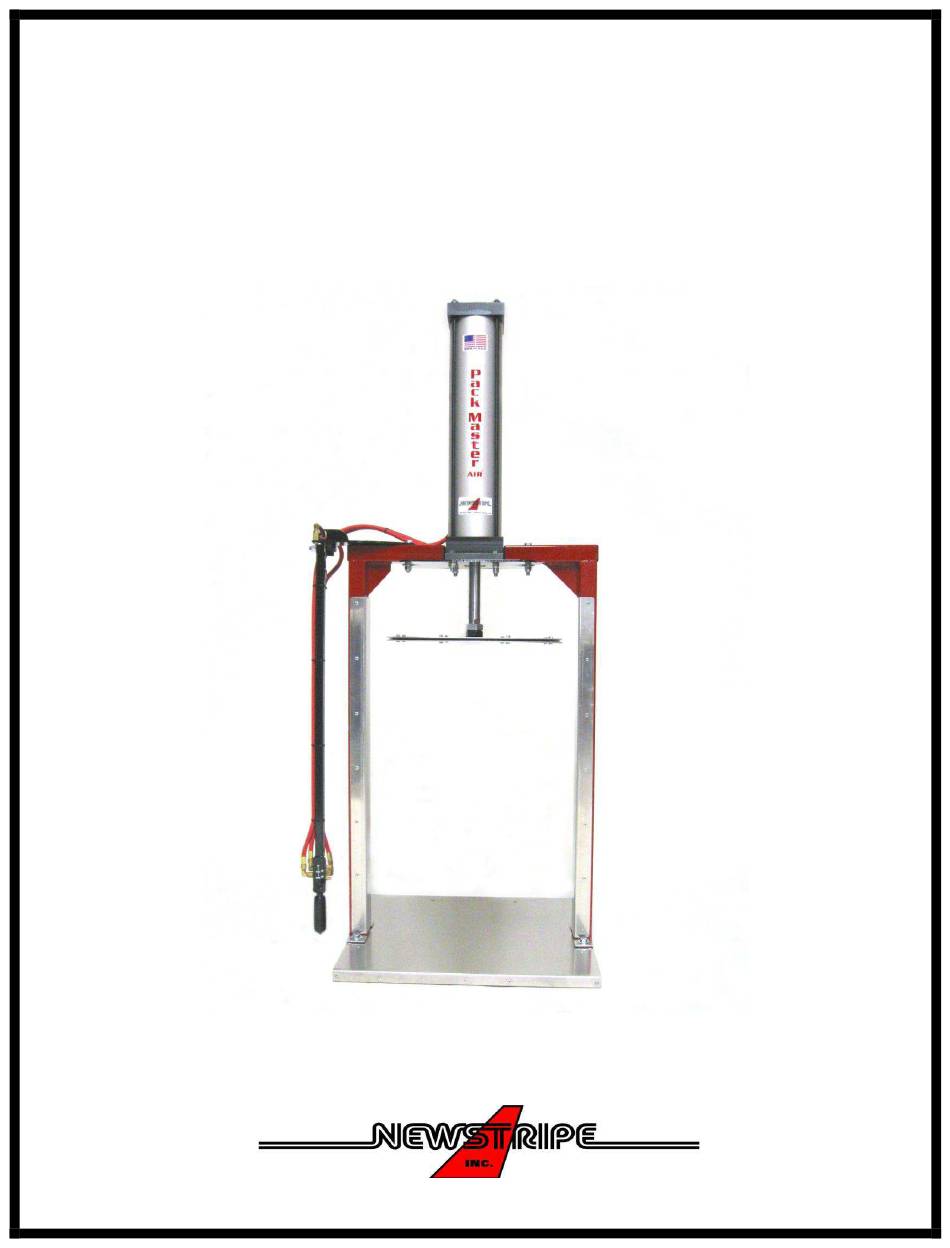

- Page 1 Pack-Master™ Air, Spark Resistant Product Manual • 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 Newstripe.com Pack-Master Air, Spark Resistant Manual / August 2013...
-
Page 2: Table Of Contents
Pack-Master™ Air, Spark Resistant Manual Thank you! And Congratulations on TABLE OF CONTENTS your purchase of the Pack-Master Air, Spark Resistant industrial trash Precautionary Warning…..Page 1 compactor. Removing Unit from Pallet…. Page 2 Please take some time to read over the Wheel Kit (optional)…………... -
Page 3: Precautionary Warning
ALWAYS wear safety goggles or protective eye-wear when operating the unit! PRECAUTIONARY WARNING! The Pack-Master Air, Spark Resistant is designed to not produce any sparks when operated. The Pack-Master Air, Spark Resistant is not explosion proof. Care must be taken in the types of materials you are compacting. -
Page 4: Removing Unit From Pallet
Master will be used. Remove the bands securing the unit to the pallet and slide the Pack-Master off of the pallet onto the floor. 3. Once the Pack-Master is off the pallet and resting flat on the floor, you may use the wheel kit to move the unit from one location to the next. -
Page 5: Air Filter/Lubricator Installation (Optional)
AIR FILTER/LUBRICATOR INSTALLATION INSTRUCTIONS (OPTIONAL ITEM) After uncrating the Pack-Master Air, Spark Resistant compactor, you may then install the Air Filter/Lubricator. 1. Remove the small Secondary mounting plate bolt that secures the Control Arm Bracket. 2. Place the Air Filter/Lubricator mounting plate saddle over the Control Arm Bracket. -
Page 6: Operation
ALWAYS wear safety goggles or protective eye-wear when operating the unit! OPERATION 1. To operate the Pack-Master Air, Spark Resistant unit connect the compactor air supply line (#5) to any compressed air source up to 150 psi. (Minimum 85 psi) 2. -
Page 7: Parts List
Upright, Right #2 Bracket Mounting Cylinder #8 Ram Plate 20 Ram Control Valve (Joy stick) #11 Base Plate #3 Upright, Left #1 • 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 Newstripe.com Pack-Master Air, Spark Resistant Manual / August 2013... -
Page 8: Control Arm
Upper Air Hose #7 Ram Control Valve (Joystick) #11 Handle Grip #16 Lower Air Hose #6 Air Supply Line, Cylinder #9 • 1700 Jasper St., Unit F, Aurora, CO 80011 800.624.6706 303.364.7796 Newstripe.com Pack-Master Air, Spark Resistant Manual / August 2013... -
Page 9: Warranty
18 (Eighteen) months from the date of purchase. In no event shall Newstripe, Inc. be liable for incidental or consequential damages and no person had any authority to bind it to any representation or warranty, not be responsible for work done, materials furnished or repairs made by others without its' specific written authorization.
