5-4 Workplace Requirements
1.
The machine's workplace requires 1400(width)×1685(depth) with at least 500 mm of clear space from each wall. Place the tire changer on a firm, smooth
and unbroken floor. Drill four holes in the floor corresponding to the holes pre-drilled in the base of the machine. Holes should be 80mm deep. Its diameter is
10mm. Then insert the expansion
Plugs and lighten with the 10mm spanner.
Fig.3

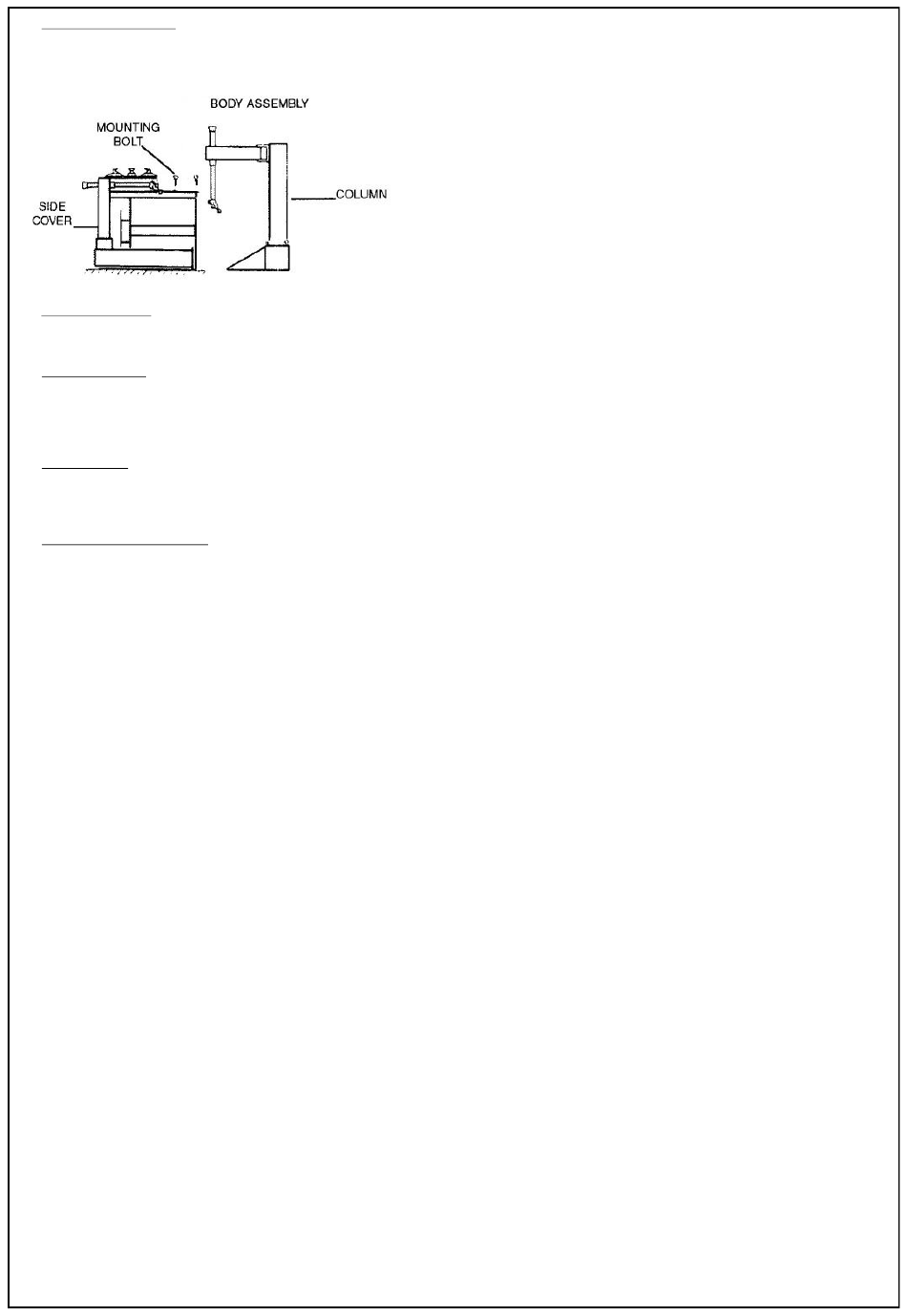

5-5 Assembly Procedure
1.
Temporarily remove the four mounting bolts, washers, and Nuts located at the top / rear of the body assembly.
2.
With assistance, set the column on the body assembly, and align the four mounting holes in which the bolts, washers, and nuts were moved.
3.
Firmly wrench tightens the column with the four mounting bolt, washers, and nuts mentioned in step 1 above.
5-6 Pneumatic Link Up
1.
Push the clamping pedal down completely to ensure that the clamping jaws do not open unexpectedly.
2.
Connect the air hose to the union on bottom of the vertical column, which is as a tanker.
3.
Connect the inflation gun, if it is to be installed, to its connector.
4.
Connect the tire changer to a compressed air network. (Suggested working pressure is 8 bar) using the connector which is on the air-water separator located
right side of the base assembly.
5-7 Electric Link up
1.
Before making any electric link up, check to be certain that the main voltage corresponds to what is stamped on the voltage tag.
2.
It is absolutely essential that the system is equipped with a good grounding circuit.
3.
The machine must be connected to a power supply line circuit bracket set for 30mA.
5.OPERATING INSTRUCTION
5-1 To Preliminary Operating Tests
1.
Connect the tire changer to its air and electrical supply sources, and allow adequate time for the compressed air system to reach the recommended 110-PSI.
2.
Depress the Reverse Pedal (3,Fig2) down, the turntable should turn in a clockwise direction. Pull the pedal up and the turntable should turn anticlockwise.
3.
Press the bead breaker pedal (1,Fig2)to activate the paddle. When the pedal is released. The pedal should return to its original position.
4.
Press the jaw clamp pedal (2,Fig.2) once to open the four jaws. Press the pedal again to close the jaws.
