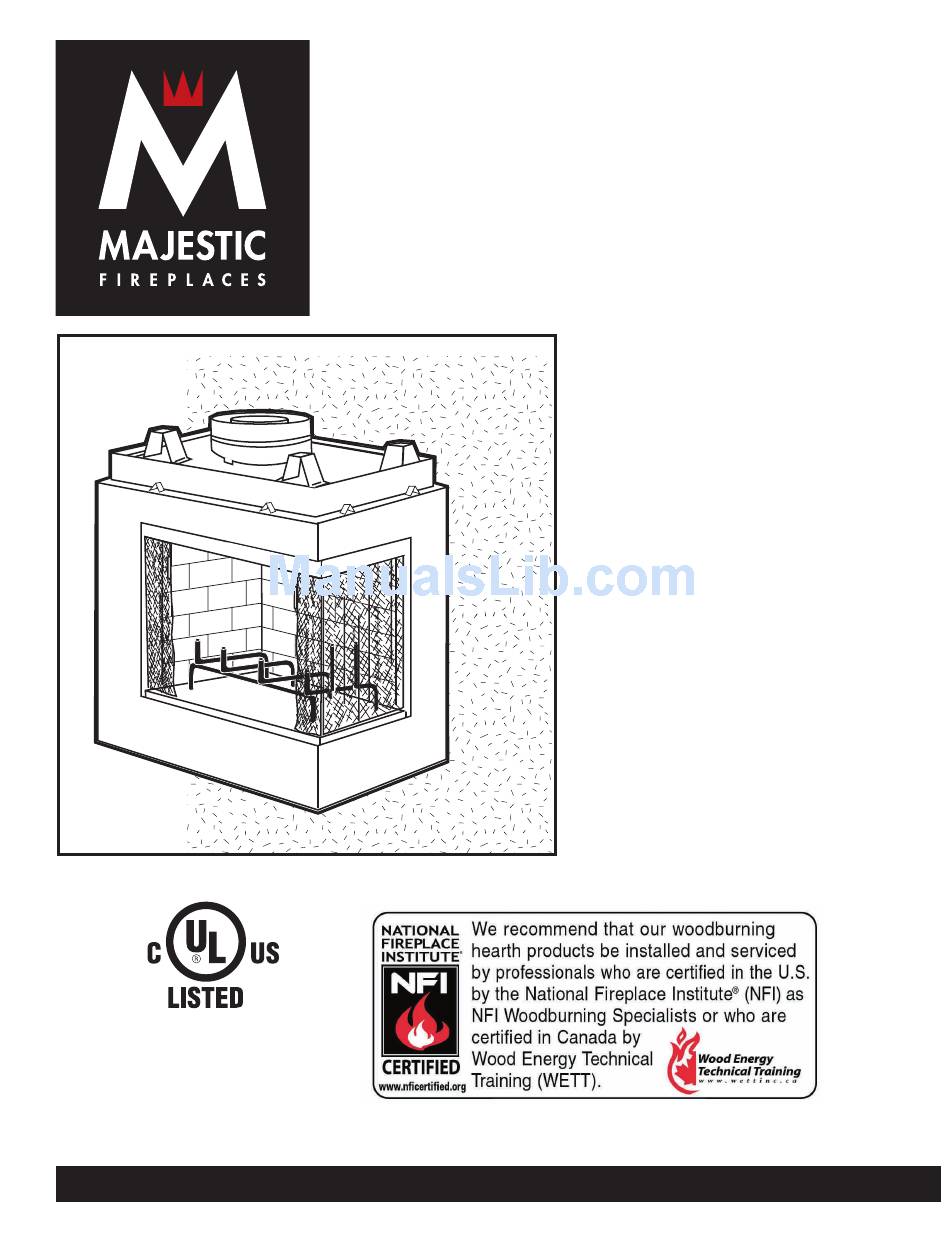

- Page 1 CR Series Corner Woodburning Fireplace For use in U.S./Canada Underwriter’s Laboratories Report No. MH6018 DO NOT DISCARD THIS MANUAL: Retain for future use. Homeowner’s Installation and Operating Manual For Models: CR36R CR36L 20001316 3/06 Rev. 13...
-
Page 2: Table Of Contents
Safety Information ... 2 Specifications and Framing ... 3 Parts Identification ... 4 Chimney Requirements ... 5 Planning Information ... 6 Installation ... 7 Replacement Parts ... 17 Accessories ... 18 Drafts Gas Logs CR36R / CR36L Listed UL / ULC-S610 20001316... -
Page 3: Specifications And Framing
Access 7" 14¹⁄₄" (178mm) (362mm) Fig. 1 CR36R/L Series specifications and framing. 25¹⁄₂" (648 mm) 15⁵⁄₈" (397 mm) 32³⁄₈" (822 mm) CR36L Fig. 1a CR36R/L hearth dimensions. FP1538 CR Hearth size 10/04 djt 20001316 29¹⁄₄" (743mm) ³⁄₄" (19mm) 10" (254mm) 22"... -
Page 4: Chase Installation
CR Series Woodburning Fireplaces Chase Installation Insulation methods shown are optional for cold climates, not a requirement for unit operation. Batt Insulation (cut out around firestop) Firestop Ceiling Level Outer Dome See Figure 20 on page 15 for clearance information Gas Access Outside Air Cover Plate... -
Page 5: Chimney Requirements
Illustration Key The following safety rules apply to offset installations. (The letters correspond with letters above): A. Height of the chimney measured from the hearth to the chimney exit at top: CR36L/R Series Maximum: 90’0” Minimum: Without elbows 14’ 0”... -
Page 6: Planning Information
CR Series Woodburning Fireplaces Preplanning an installation is very important to ensure safety and to save time and money. An installer must predetermine where a fireplace will be set and how the chimney system will be run. Mounting the Fireplace A fireplace may only be mounted on the following surfaces: 1. -
Page 7: Installation
Angled chimney runs require a support every 6’ (1.8m) in addition to the elbow straps. Chimney supports are used for this function. (Fig. 6) Chase Installation A chase is a vertical box-like structure which encloses the fireplace and/or chimney. Chases are typically built on the outside of the house with fireplace opening cut into the outer wall of a room. - Page 8 CR Series Woodburning Fireplaces Framing Framing can be constructed before or after the fire- place is set in place, however, most installers build the frame before setting the fireplace. Frame fireplace with 2 x 4 lumber or heavier materi- als. Refer to framing dimensions in Figures 1 or 2 for basic fireplace specifications.
- Page 9 fireplace are noncombustible. 30° 14¹⁄₂ x 25¹⁄₂ An outside air kit damper is installed in all CR36L/R (368 x 648mm) Series Fireplaces. If desired, or if local codes mandate the use of an air kit, then an AK-MST is required to complete the installation (from air kit to the outdoors).
- Page 10 CR Series Woodburning Fireplaces Fig. 12 Fasten fireplace in position. STR100 standoffs, corner Installing the Chimney System 2/18/99 djt Start by attaching the first chimney section to the collar on top of the fireplace. Install the pipe as pictured in Figure 13. When you get a good lock, you will hear the pipe clearly snap together.
- Page 11 Hole sizes listed in Figure 10 for angled firestop spac- ers provide minimum required air space to chimney pipe for ceiling thickness up to 8” (203mm). When combined thickness of ceiling material, ceiling joists and flooring material exceeds 8” (203mm), adjust- ments must be made in framing to assure that mini- mum air spaces to chimney are maintained.
- Page 12 CR Series Woodburning Fireplaces Cut and Frame Roof Hole Size of roof hole varies with the type of chimney termination installed. Refer to installation instructions provided with the chimney termination to find correct size of roof hole. There must be an air space (1¹⁄₂" (38mm) with SK8 ) between outermost portion of chimney sections and any adjacent combustible surfaces.
- Page 13 Mantel Clearance - No Noncombustible Facing Material Combustible 12" Mantel and (305mm) Trim Max. 1¹⁄₂" 12" (305mm) Min. * Minimum width from top of surround to bottom of screen rail Fig. 18 Fireplace surround flush with finished wall. 1¹⁄₂" Ref. * 12”...
- Page 14 CR Series Woodburning Fireplaces Finish Wall Finish the wall with material of your choice. Do not install a combustible mantel shelf less than 12” (305mm) from the top of the fireplace opening. Do not install a mantel face plate less than 6” (159mm) from top of fireplace opening.
- Page 15 Proposed Perpendicular Side Walls Min. Dist. FE105 Model with SP40 Non-protected Wall Min. wall covering distances 3/3/99 djt CR36L 12” CR36R Minimum Hearth Extension Dimensions 22” Min. 16” 16” 64” Min. Fig. 20 Protection of adjacent combustible side walls and hearth extension dimensions.
- Page 16 CR Series Woodburning Fireplaces Installing Line for Gas Logs Majestic Fireplaces CR36R/L Series fireplace is de- signed to accept a 1/2” gas line for an approved gas appliance. (CFM Corporation manufactures a wide variety of gas logs for use in Majestic Fireplaces.) Have the appliance installed by a qualified plumber in accordance with all building codes.
-
Page 17: Replacement Parts
7a. Firebrick - Side 7b. Firebrick - Back 7c. Firebrick - Hearth 8. Cable Clips (four per fireplace) 9. Firebrick Retainers 10. Basket Grate 20001316 CR Series Woodburning Fireplaces Parts page CR36L/R 3/17/99 djt CR36L CR36R RP102 RP102 20001587 20001587 7554338... -
Page 18: Accessories
P325d Hearth extension EH2416 4/28/99 djt Accessories Description Designed to enclose the CR36L/R Series fireplace opening with glass doors, allowing the fire to remain visible. Provides outside air for fuel combus- tion in the firebox. This accessory must be installed before the fire- place is installed. - Page 19 Accessory Chimney Support Firestop P325f Chimney Support SKCS8 3/4/99 djt Top Housings P325g firestop SKFS2A SKFS6A 3/4/99 djt Housing Extensions P325h top housings 4/28/99 djt P325i Contemporary Chase Top housings extensions Terminations 3/4/99 djt PLTSK8 SLTSK8 P325f-j 20001316 P325j Chase top housings SLTSK8, PLTSK8 3/5/99 djt Description...
- Page 20 CR Series Woodburning Fireplaces Accessory Contemporary Flashing Chimney Sections P325k (“SK8”) Contemporary flashing 3/5/99 djt P325l Chimney Elbows Chimney section (“SK8”) 3/6/99 djt Contemporary Round Top Ter- P325m mination Chimney elbows 3/5/99 djt P325n Extended Round Top Chimney top Chase Termination RLTSK8 3/5/99 djt P325p...
- Page 21 Accessory Chase Top P325p Chase top housings SKDSBL/PKDSBL 4/28/99 djt Adapter Kit P325q Chase Top CT100 3/5/99 djt 325p-r P325r Adapter kit CTSK42 3/5/99 djt Hearth Patching Accessories for Canada Accessory Attic Insulation Shield Chimney Collar Enclosure SK8 Chimney Sections 45°...
- Page 22 CR Series Woodburning Fireplaces 20001316...
- Page 23 LIMITED WARRANTY & 30 YEAR PROTECTION PLAN For MAJESTIC FIREPLACES CFM Corporation warrants its MAJESTIC FIREPLACES® Pre-Engineered Fireplace (“Fireplace”) and the CFM Corpora- tion supplied firegrate, glass doors, outside air system, fan motor, and liners to be free from defects in material or work- manship, as follows: A.
- Page 24 CFM Corporation 2695 Meadowvale Blvd. • Mississauga, Ontario, Canada L5N 8A3 800-668-5323 • www.cfmcorp.com...
