Overview
B
ACKPLANE
RJ-45 Ethernet
10/100BASE-T
connector
Chassis ground
The ThinMux chassis provides a compact 1U platform for the ThinMux
family of multiplexers with the following interconnects:
• One 10/100BASE-T Ethernet (IEEE 802.3)
• Two 64-pin female receptacle connectors for T1/E1 transmit/receive,
chassis-shielded
•
Four 75 BNC connectors for DS3/STS-1 transmit/receive
•
Four wire-wrap 0.045-inch pins for Building Integrated Timing Supply
(BITS) A and B
•
Four wire-wrap 0.045-inch pins for T1 or E1 test access, transmit/receive
•
Four wire-wrap 0.045-inch pins for Visible (VIS) and Audible (AUD)
alarms (dry relay contacts) which are normally open (NO) discrete
alarms
•
Five wire-wrap 0.045-inch pins for discrete alarms (solid sate relay
contacts): Far End, Minor, Major, and Critical
• Five screw connectors for -48V dual power
• One DB-9 connector for RS-232 communication
2
DS3 or STS-1
connectors
Line 2 Line 1
Tx Rx Tx
32-pair (female) connectors - T1, E1
(left Rx, right Tx)
ESD strap input

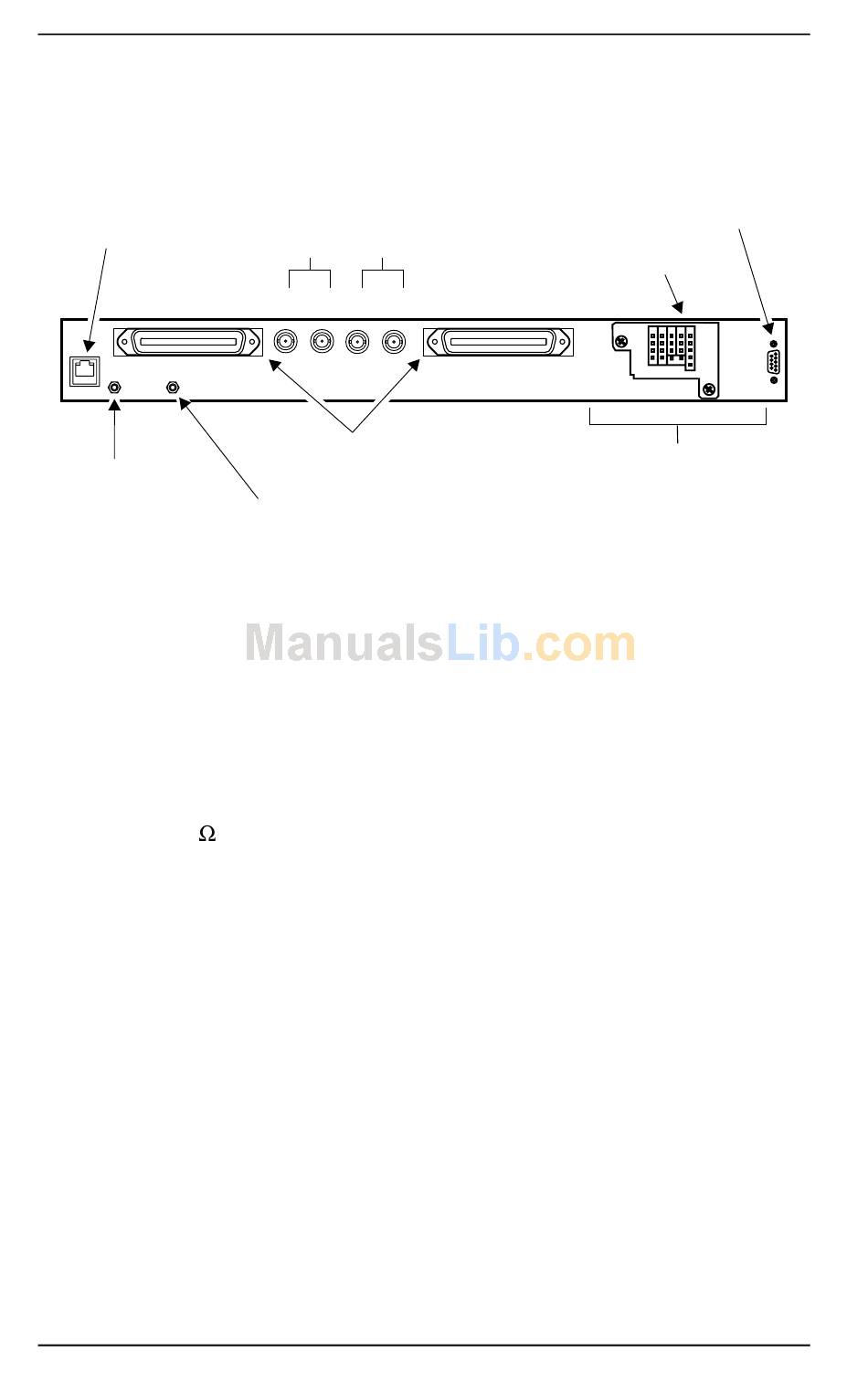

Figure 1. Backplane Interfaces (rear view)
January 3, 2002
-48 Vdc battery supply
screw connectors
(common access panel)
Rx
LTPH-UM-1088-02, Issue 2
DB-9 craft port DB-9 craft port
connector connector
Test CRIT CRIT RTN B]
Bits Access VIS AUD Alarm
-48 B
B- TTIP NO NO FE
RTN A
B+ TRING COM COM MIN
A- RTIP NC NC MAJ -48 A
A+ RRING Frame Frame CRIT
GND GND FGND
COM
BITS A and B, test access
(visual, audible, and discrete
alarm wire-wrap pins)
ThinMux Chassis
Craft
RS-232
