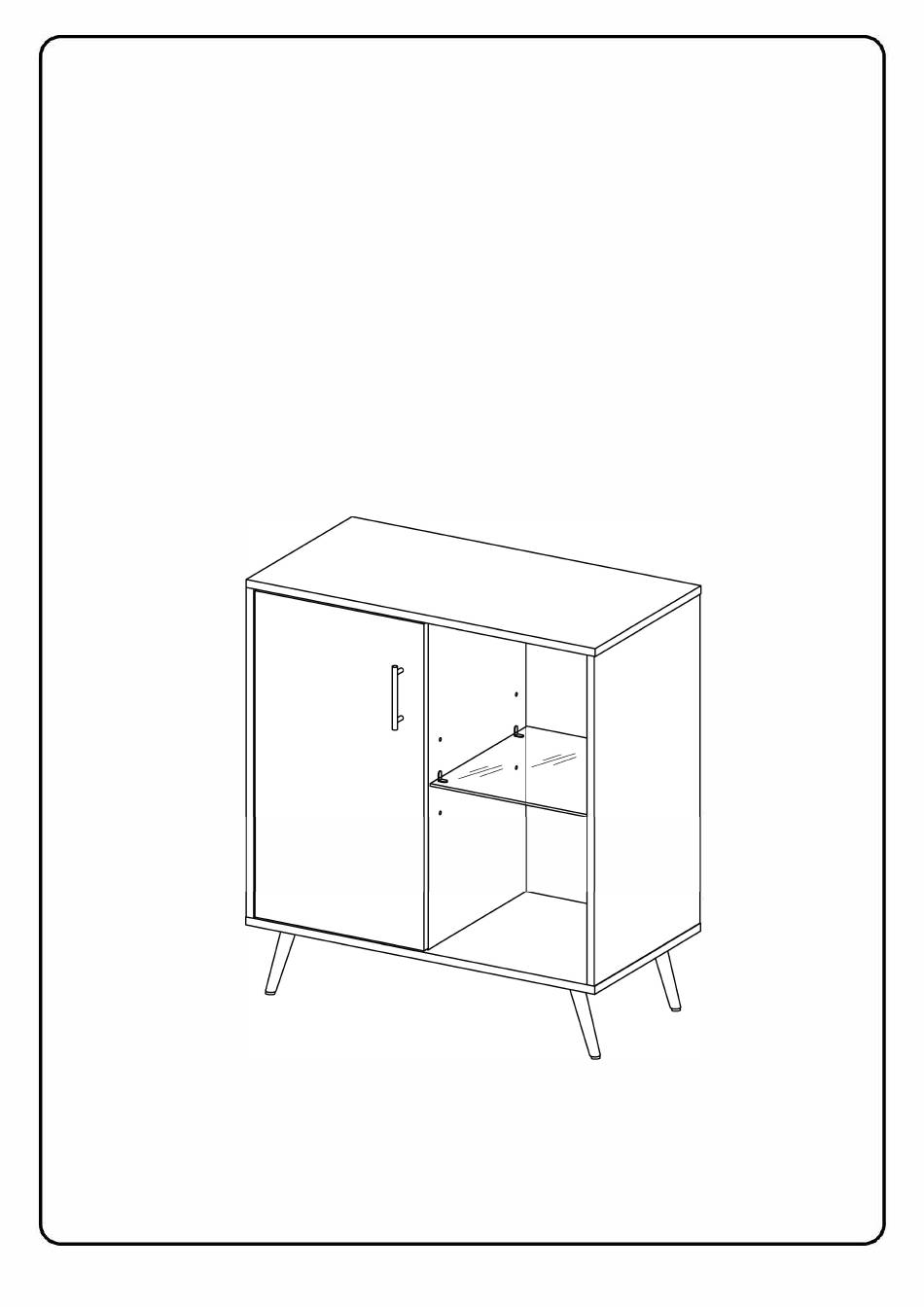

Item # : AF30NOR 1 D
Assembly Instructions
Please visit our website for the most current instructions, assembly tips, report damage,
or request parts. www.walkeredison.com
Revised 07/11/2018
Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF30NOR1D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Walker Edison AF30NOR1D

  • Page 1 Item # : AF30NOR 1 D Assembly Instructions Please visit our website for the most current instructions, assembly tips, report damage, or request parts. www.walkeredison.com Revised 07/11/2018 Copyright © 2018, by Walker Edison Furniture Co., LLC. All rights reserved.
  • Page 5 Insert dowels (A) into side panels (3)(4)(5). Screw cam bolts (B) into panels (1)
  • Page 6 Use hex key (P), screw (D) to secure the bottom panel (2) to the side panels (3,4,5). Slide back panel (8) into side panel(3,4,5)
  • Page 7 Place the top panel (1) to the side panels (3,4,5). Insert cam locks (C) into side panels (3,4,5) and tighten with a screwdriver. Use wrench (P), bolts (F) to secure legs (10) into bottom panel (2).
  • Page 8 Place sticker (L) over holes as per diagram Attach hinge locks (M) to Door (9) using screws (N) as shown in the diagram. Attach handle (H) to Door (9) using bolts (J)
  • Page 9 Attach door(9) to assembled unit using screws (N).Tighten screws (N) with a screwdriver. Insert support Pin(E) into Side panel (3,4),insert L shape Bracket (G) into side panel (4,5)
  • Page 10 Insert shelf (6) into side panels (3,4). Place glass(7) on top of L shape Bracket carefully. Attach velcro strap (Q) to part (1) using screw (T) with screwdriver. Attach plastic wedge (U) into part (8) for 8 times.
  • Page 11 Place unit in desired location and mark the wall for anchor location. Insert plug(S) into wall per per diagram. Secure product to wall with screw (R) and velcro strap (Q) to plug (S).
