Walker Edison AF34MADW Assembly Instructions Manual

Walker Edison AF34MADW Assembly Instructions Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Ítem N.°:
TM
Walker Edison
®
Copyright
AF34MADW
AF34MADW
2018 by Walker Edison Furniture Co., LLC. All rights reserved.
©
AF34MADW
Artikel# :
AF34MADW
Revised 02/04/2019 (E)
P.1

Advertisement

loading
Need help?

Need help?

Do you have a question about the AF34MADW and is the answer not in the manual?

Questions and answers

Related Manuals for Walker Edison AF34MADW

Summary of Contents for Walker Edison AF34MADW

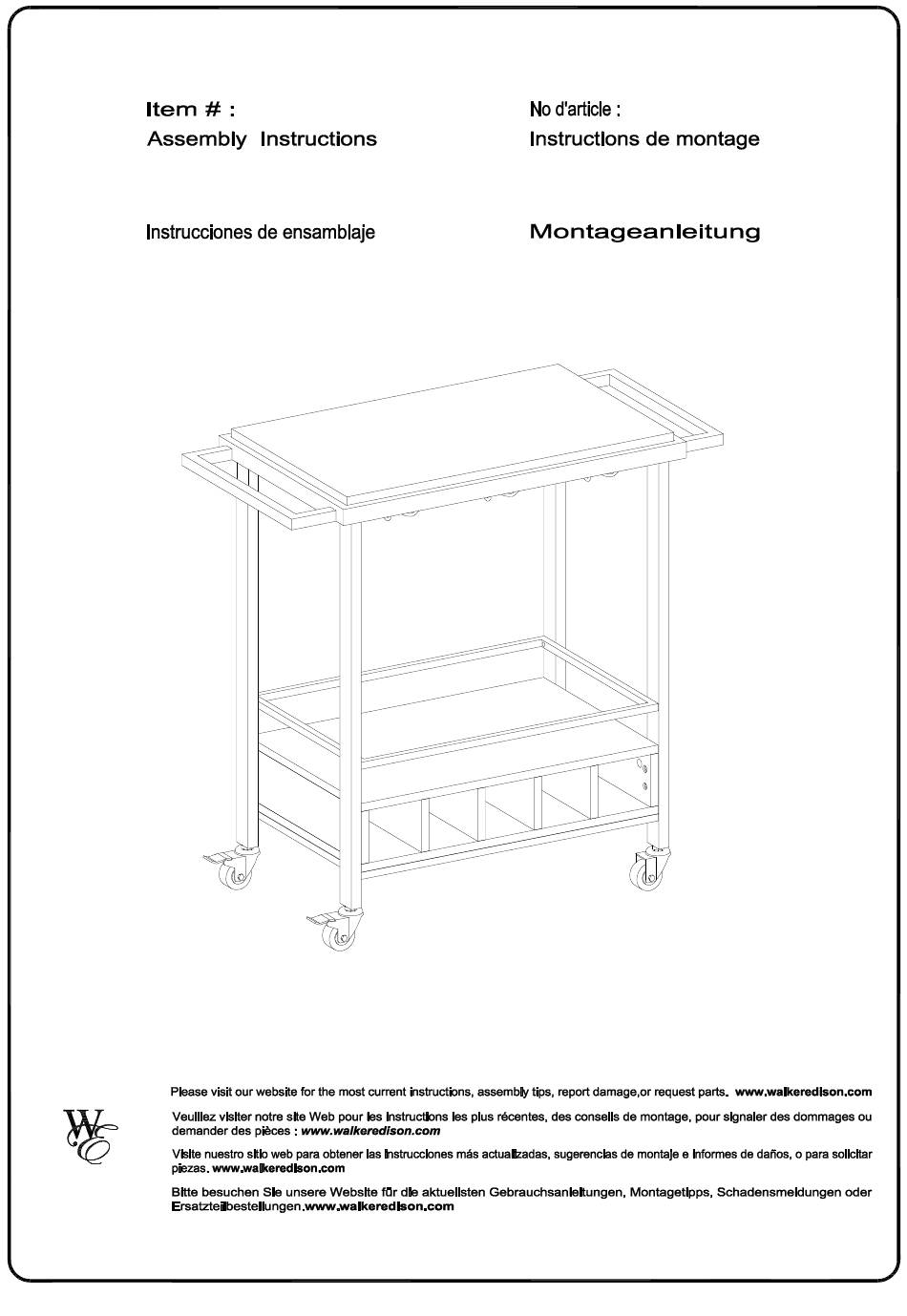

  • Page 1 AF34MADW AF34MADW Ítem N.°: Artikel# : AF34MADW AF34MADW Walker Edison ® Revised 02/04/2019 (E) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...

  • Page 2: General Assembly Guidelines

    A Phillips head screwdriver is required for the assembly of this product . VII. Power tools should not be used to assemble this product. VIII. Drill may be needed for securing product to wall. (EN) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 3 Un tournevis cruciforme est requis pour le montage de ce produit. Des outils électriques ne doivent pas être utilisés pour monter ce produit. VII. Une perceuse peut être nécessaire pour fixer le produit au mur. VIII. (FR) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 4 No se deberán usar herramientas eléctricas en el ensamblaje de este producto. VII. Es probable que se necesite un taladro para asegurar el producto a la pared. VIII. (ESP) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 5 Zur Montage dieses Produkts wird ein Phillips Schlitzschraubenzieher benötigt. Es dürfen keine Elektrowerkzeuge zur Montage dieses Produkts verwendet werden. VII. Möglicherweise wird ein Bohrer benötigt, um das Produkt an der Wand zu befestigen. VIII. (DE) Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...

  • Page 6: Lista De Piezas

    Lista de piezas Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...

  • Page 7: Liste Du Matériel

    4 pcs Sticker Ø30mm Aufkleber 6 pcs Screw Ø4x12mm Schraube 4 pcs Screw Ø4x38mm Schraube 1 pc Hex Key Sechskantschlüssel 1 pc Wrench Schraubenzieher 8 pcs Bolt Ø6x20mm Schrauben Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 8 (no incluido) Für die Montage benötigen Sie einen Kreuzschlitzschraubenzieher (nicht enthalten) The hardware quantities listed above are required for proper assembly.Some extra hardware may also have been included. Copyright 2018 by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 9 Step 1 (EN) Insert wooden dowel (A) into part (9). (DE) Holzdübel (A) in Teil (9) einstecken. Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 10 Step 2 (EN) Insert wooden dowel (A) into part (7,8). (DE) Holzdübel (A) in Teil (7,8) einstecken. P.10 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 11 Step 3 (EN) Secure cam bolt (B) to part (6) with screwdriver . (DE) Ausklinkbolzen (B) mit Schraubenzieher an Teil (6) fixieren. P.11 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 12 Attach part (6) to part (7), then insert and secure cam lock (C) to part (7) to lock it. (DE) Teil (6) an Teil (7) befestigen und dann Zylinderschloss (C) in Teil (7) einfügen und befestigen, um es zu fixieren. P.12 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 13 Attach part (6) to part (8), then insert and secure cam lock (C) to part (8) to lock it. (DE) Teil (6) an Teil (8) befestigen und dann Zylinderschloss (C) in Teil (8) einfügen und befestigen, um es zu fixieren. P.13 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 14 Step 6 (EN) Insert part (9) into part (6). (DE) Teil (9) in Teil (6) einfügen. P.14 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 15 Insert part (10) into part (7,8,9), then secure part (10) to part (7,8) using screw (F) with screwdriver. (DE) Teil (10) in Teil (7,8,9) einsetzen, dann Teil (10) an Teil (7,8) mit Schraube (F) mit Schraubenzieher befestigen. P.15 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 16 Step 8 (EN) Secure part (12,13) to part (4) with wrench (H). (DE) Teil (12,13) mit Schraubenzieher (H) an Teil (4) befestigen. P.16 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 17 Attach part (11) to part (4) using bolt (L) with hex key (G). (DE) Teil (11) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.17 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 18 Attach part (7) to part (4) using bolt (L) with hex key (G). (DE) Teil (7) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.18 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 19 Attach part (5) to part (4) using bolt (L) with hex key (G). (DE) Teil (5) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.19 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 20 Attach part (5,7,11) to part (4) using bolt (L) with hex key (G). (DE) Teil (5,7,11) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.20 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 21 Attach part (5,8,11) to part (4) using bolt (L) with hex key (G). (DE) Teil (5,8,11) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.21 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 22 Attach part (5,8,11) to part (4) using bolt (L) with hex key (G). (DE) Teil (5,8,11) mit der Schraube (L) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.22 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 23 Attach part (2) to part (4) using bolt (J) with hex key (G). (DE) Teil (2) mit der Schraube (J) und dem Sechskantschlüssel (G) an Teil (4) befestigen. P.23 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 24 Step 16 (EN) Attach part (3) to part (1) using screw (E) with screwdriver. (DE) Teil (3) mit Schraube (E) und Schraubenzieher an Teil (1) befestigen. P.24 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 25 Attach part (1) to part (2) using bolt (K) with hex key (G). (DE) Teil (1) mit der Schraube (K) und dem Sechskantschlüssel (G) an Teil (2) befestigen. P.25 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 26 Step 18 (EN) Place sticker (D) over holes as per diagram. (DE) Aufkleber (D) wie in der Abbildung über den Löchern anbringen. P.26 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
  • Page 27 Step 19 Final Assembly P.27 Copyright 2018, by Walker Edison Furniture Co., LLC. All rights reserved. ©...
