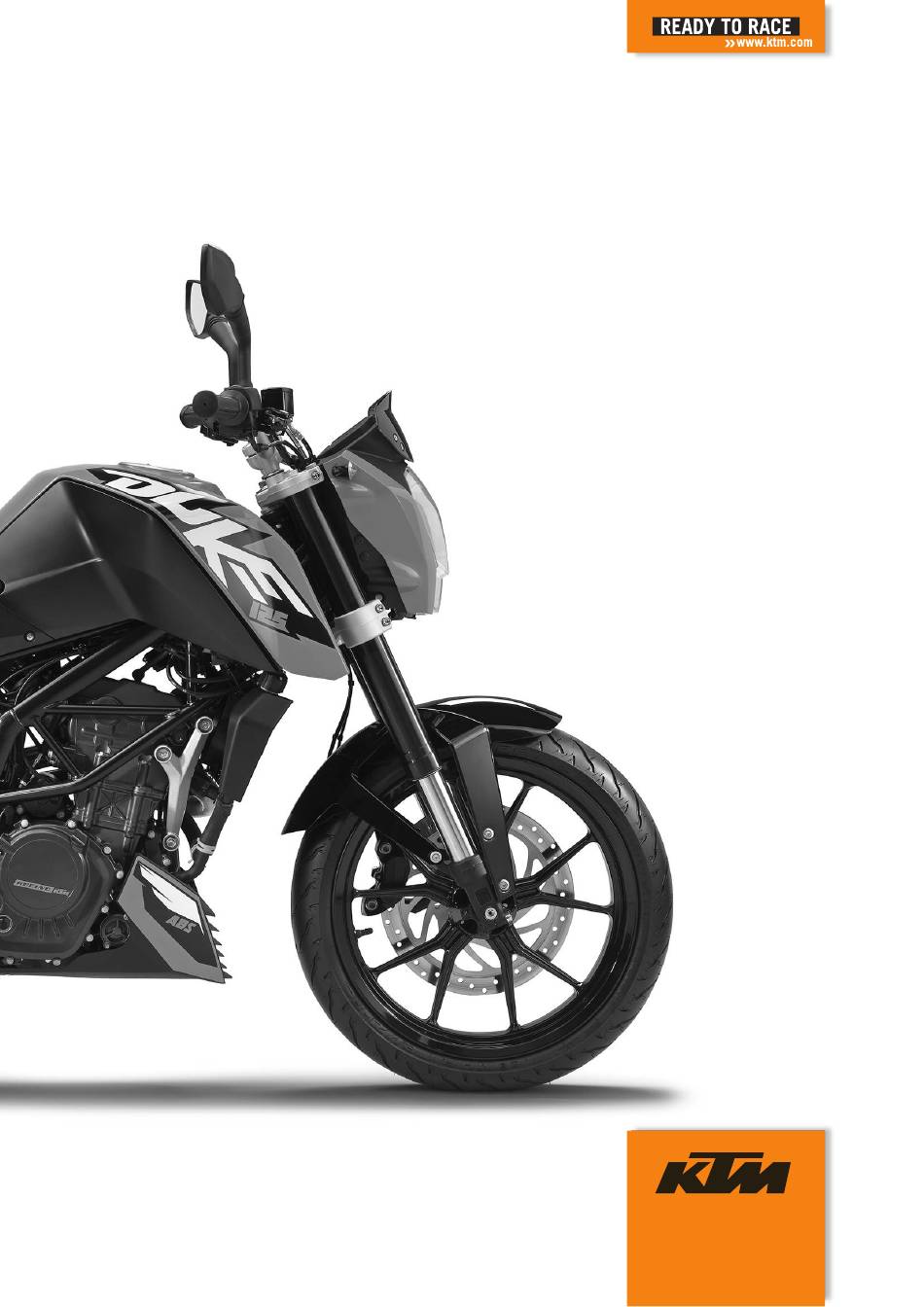

SETUP INSTRUCTIONS
2016
125 Duke
200 Duke
Art. no. 3213457en

Advertisement

loading

Related Manuals for KTM 125 Duke 2016

Summary of Contents for KTM 125 Duke 2016

  • Page 1 SETUP INSTRUCTIONS 2016 125 Duke 200 Duke Art. no. 3213457en...
  • Page 3 KTM accepts no liability for delivery options, devi- ations from illustrations and descriptions, misprints, and other errors.

  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP Unpacking and setting up the vehicle – Remove the straps and box. S00786-10 – Remove the adhesive tape in the upper area of the motorcycle. S00790-10 – Roll down the film at the sides. Info To avoid damaging the motorcycle during unpacking, leave the other films on the vehicle until you have finished work on the vehicle.
  • Page 6 Install the battery. ( p. 7) – Refuel. ( p. 9) – Prepare the vehicle according to the specifications in the KTM Dealer.net for han- dover to the customer. – Set kilometers or miles. ( p. 10) – Set the clock. (...
  • Page 7 WORK Removing the passenger seat –  Insert the ignition key in seat lock and turn it clockwise. – Raise the rear of the seat, push it towards the rear, and remove it upwards. – Remove the ignition key from the seat lock. B00712-01 Mounting the passenger seat –...

  • Page 8: Recharging The Battery

    WORK Finishing work – Mount the passenger seat. ( p. 5) Removing the battery Warning Risk of injury Battery acid and battery gases cause serious chemical burns. – Keep batteries out of the reach of children. – Wear suitable protective clothing and goggles. –...

  • Page 9: Installing The Battery

    WORK Info Even when there is no load on the battery, it discharges steadily. The charging level and the method of charging are very important for the service life of the battery. Rapid recharging with a high charging current shortens the service life of the battery. If the charging current, charging voltage, and charging time are exceeded, the battery will be destroyed.
  • Page 10 WORK –  Position the negative cable and mount and tighten the screw. –  Position the negative terminal cover B00750-11 Finishing work – Mount the seat. ( p. 5) – Mount the passenger seat. ( p. 5) – Set the clock. ( p.
  • Page 11 WORK Closing the filler cap Warning Fire hazard Fuel is highly flammable, poisonous and harmful to your health. – After closing the filler cap, ensure that it is locked properly. Change clothing that has been contaminated with fuel. Immediately clean con- taminated areas on the skin with soap and water.
  • Page 12 WORK 3.11 Setting the time Condition The ignition is on. The motorcycle is stationary. – Press the MODE button briefly and repeatedly until ODO appears on the display. – Press the MODE and SET buttons for 5 - 10 seconds. The time display begins to flash.

  • Page 13: Technical Data

    TECHNICAL DATA Chassis tightening torques – Exhaust clamp 19 Nm (14 lbf ft) – Helmet holder screw EJOT PT ® 3 Nm (2.2 lbf ft) – Screw, chain guard EJOT PT ® 4 Nm (3 lbf ft) – Screw, headlight EJOT PT ®...
  • Page 14 TECHNICAL DATA – Screw, radiator bracket 6 Nm (4.4 lbf ft) – Screw, radiator holder 9 Nm (6.6 lbf ft) Screw, rear ABS sensor wheel 8 Nm (5.9 lbf ft) Loctite ® 243™ (125 Duke) – Screw, rear splash protector 9 Nm (6.6 lbf ft) –...
  • Page 15 TECHNICAL DATA – Swingarm bearing adjusting ring M22x1 Tighten and ensure that there is no play – Nut, steering head M30x1 Step 1 55 Nm (40.6 lbf ft) 2nd stage (loosen, counter- clockwise) 2 turns Step 3 5 Nm (3.7 lbf ft)
  • Page 16 SUBSTANCES Gasohol 95 E20 (RON 95) Standard/classification – Gasohol 95 E20 (RON 95) Guideline – Only use super unleaded fuel that matches or is equivalent to the specifications. – Super unleaded fuel with an ethanol content of 19 to 20% is permissible. Info Do not use fuel made of methanol (e.
  • Page 17 *3213457en* 3213457en 07/2016 KTM Sportmotorcycle GmbH 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
