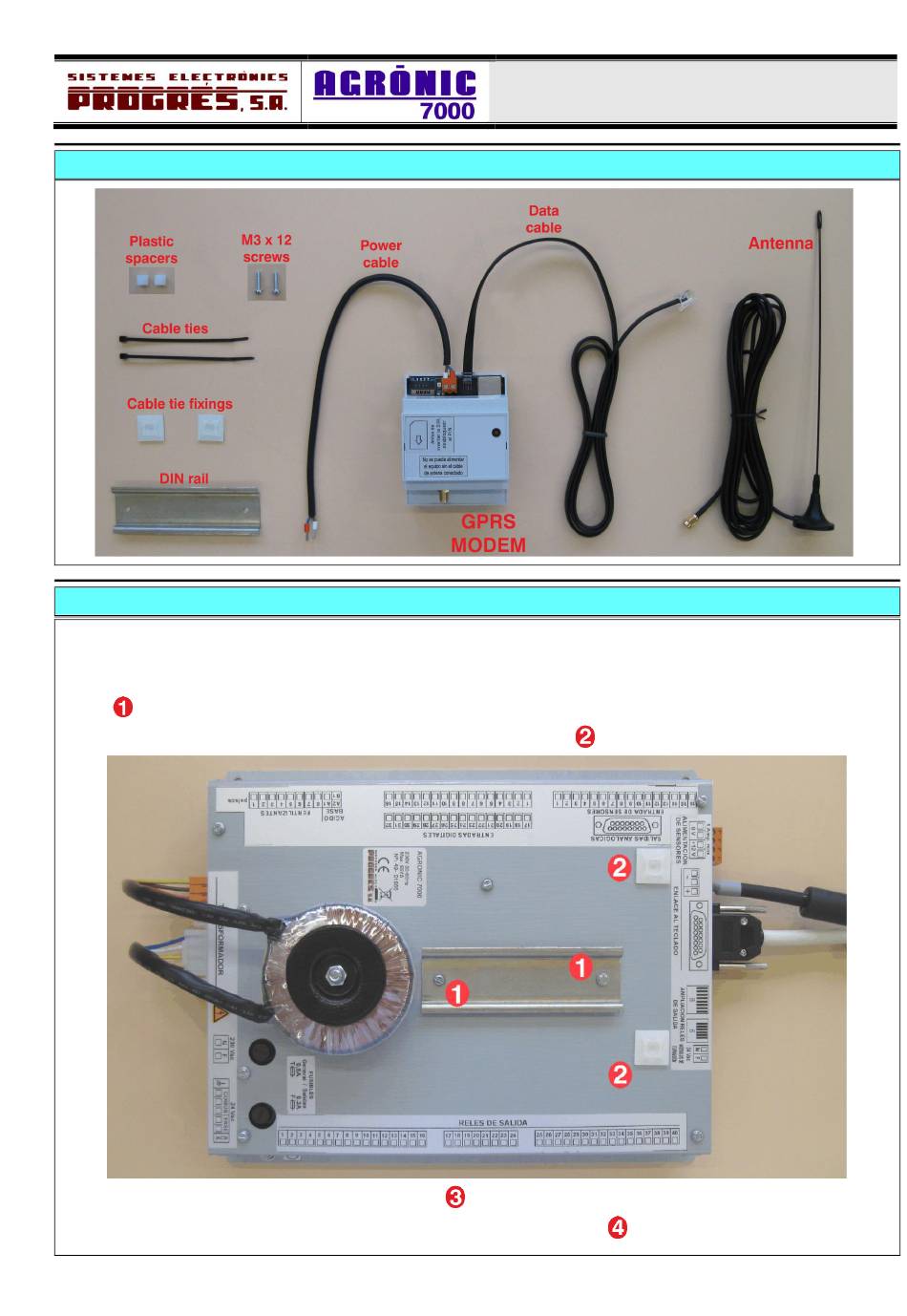

INCLUDED MATERIALS:
INSTALLATION:
A. Disconnect the equipment from a power supply.
B. B. At the base of the equipment, remove 2 screws and their washers, place the supplied DIN rail, place
the 2 plastic spacers, washers, and M3x12 screws supplied, without placing the glower washers. See
in photo.
C. Place the cable tie fixings provided in the indicated place. See
D. Place the GPRS modem on the DIN rail. See
E. Fix the data and power cables using the 2 supplied cable ties. See
INSTALLATION OF GPRS MODEM
INTO AGRÓNIC 7000
in photo.
in photo.
in photo.
Advertisement
Table of Contents
Related Manuals for Progres Agrónic 7000
Summary of Contents for Progres Agrónic 7000
- Page 1 INSTALLATION OF GPRS MODEM INTO AGRÓNIC 7000 INCLUDED MATERIALS: INSTALLATION: A. Disconnect the equipment from a power supply. B. B. At the base of the equipment, remove 2 screws and their washers, place the supplied DIN rail, place the 2 plastic spacers, washers, and M3x12 screws supplied, without placing the glower washers. See in photo.
- Page 2 F. Connect the power cable of the GPRS modem to the "Sensor power" terminal (Blue: +12 V / Brown: 0 V). See in photo. G. Place the SIM card in the corresponding slot, having previously deactivated the PIN code of the card. in photo.
