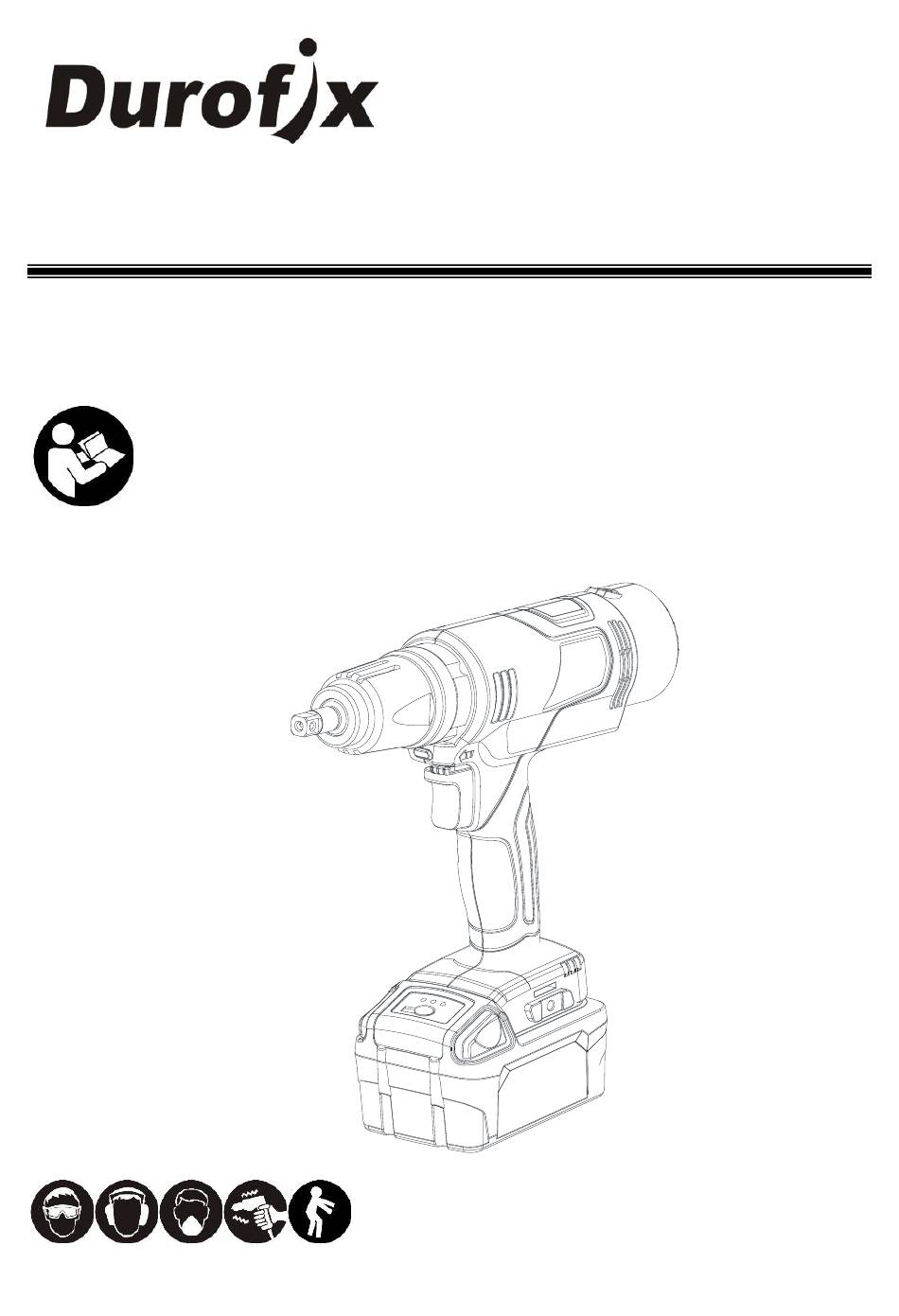

RZ4012
OIL PULSE TOOL
THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY,
OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT.
DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND
UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS
MANUAL. FAILURE TO COMPLY MAY RESULT IN ACCIDENTS INVOLVING
FIRE, ELECTRIC SHOCK, OR SERIOUS PERSONAL INJURY. SAVE THIS
OWNER'S MANUAL FOR FUTURE REFERENCE AND REVIEW IT FREQUENTLY
FOR SAFE OPERATION.
PRODUCT INFORMATION MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RZ4012 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DUROFIX RZ4012

Summary of Contents for DUROFIX RZ4012

  • Page 1 RZ4012 OIL PULSE TOOL PRODUCT INFORMATION MANUAL THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING SAFETY, OPERATION, MAINTENANCE AND STORAGE OF THIS PRODUCT. DO NOT ATTEMPT TO OPERATE THE TOOL UNTIL YOU HAVE READ AND UNDERSTOOD ALL INSTRUCTIONS AND SAFETY RULES CONTAINED IN THIS MANUAL.

  • Page 2: Intended Use

    THANKS FOR CHOOSING THIS PRODUCT Durofix provides you with products at an affordable price, and we would like you to be fully satisfied with this product and our technical support. If any help or advice is needed, please kindly contact us.

  • Page 3: Warning Label Identification

    WARNING LABEL IDENTIFICATION Read Manuals Before Operating Product. Wear Eye Protection. Wear Hearing Protection. Wear Dust Mask. Power tools can vibrate in use. Keep body stance balanced and firm. Do not overreach when operating this IMPORTANT SAFETY RULES DANGER When using power tools, always prevent exposure and breathing of harmful dust and particles.

  • Page 4: Work Area

    WORK AREA WARNING Keep work area clean and well lit. Cluttered and dark areas invite accidents. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  • Page 5 c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d.
  • Page 6 instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. i. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

  • Page 7: Specific Safety Rules And Symbols

    g. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire. h. When battery pack is not in use, keep it away from other metal objects, like paperclips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another.
  • Page 8 Do not use if chuck jaws or other parts are cracked or worn. Never change direction of rotation until motor has completely stopped. Never hold work in your hand, lap, or against other parts of your body when driving. Do not use drill as a router or try to elongate or enlarge holes by twisting the drill bit.

  • Page 9: Functional Description

    FUNCTIONAL DESCRIPTION 1. 3/8” Anvil 2. Aluminium Gearbox Housing 3. Built-in LED light 4. Forward / Reverse Lever 5. Trigger 6. LED Lamp Shut off (green)/ Error (red) 7. Power indicator 8. Battery Pack Release Button 9. Battery Pack...

  • Page 10: Specifications

    SPECIFICATIONS Model Number Unit RZ4012 V d.c. Voltage 3/8” / 1/2” Drive/Anvil 20~60 Max. Tightening Torque 0~6000 No Load Speed M10~M12 Capacity (Nominal bolt size) Tool Weight(with battery 2.0Ah) 2.25 DC40UN26-C35 Charger Model Number 100-240 V a.c., 50~60 Hz Input Output 40 V d.c.

  • Page 11: Operation

    BATTERY POWER INDICATOR Trigger the tool and Battery Indicator to show the battery pack’s remaining capacity One light ON: 30% remaining capacity. Two lights ON: 60% remaining capacity. All lights ON: 100% remaining capacity. OPERATION NOTE Always check the direction of the rotation before use. The tool uses hydraulic oil that may not initially provide the fastening force if the tool is placed at temperatures below 5 °C for extended periods of time.
  • Page 12 FORWARD / REVERSE LEVER A forward/reverse lever determines the direction of the tool and also serves as a lock off button. To select forward rotation, RELEASE THE EC SWITCH (see Fig. 1A), and push the forward/reverse lever (see Fig. 2B), toward left side of the tool. To select reverse, push the forward/reverse lever, toward right side of the tool.
  • Page 13 Fig. 3 When you turn to a suitable position, take away the Allen key then push the forward/reverse lever to forward position, use the following torque meter to check the torque. If the torque is not your target torque. Repeat the step 2 and step 3, until the torque reach your target torque.
  • Page 14 the switch and should be avoided. NOTE When change the position of the forward/reverse lever, making sure the EC switch is released. NOTE The first time the tool is run after changing the direction of rotation, you may hear a click on start up. This is normal and does not indicate a problem. Troubleshooting Check the following before you ask for repair Situation...

  • Page 15: Maintenance

    MAINTENANCE WARNING Remove the battery pack from this tool before cleaning solutions. NOTE This tool is lubricated before it leaves the factory. This lubrication should last for the life of the tool. No further lubrication is required. DANGER A battery pulse tool is a precision tool. Disassembly, assembly, adjustment require exclusive JIGS plus testers, and trained techniques.

  • Page 16: Protecting The Environment

    Protection Agency to find out about special restrictions on the disposal of tool or return them to a certified service centre for recycling. For technical support, call: 886-4-25683366 Service address: Mobiletron Electronics Co., Ltd. No. 85, Sec. 4, Chung-Ching Rd. Ta-Ya, Taichung, 428, Taiwan www.durofix.com.tw...
