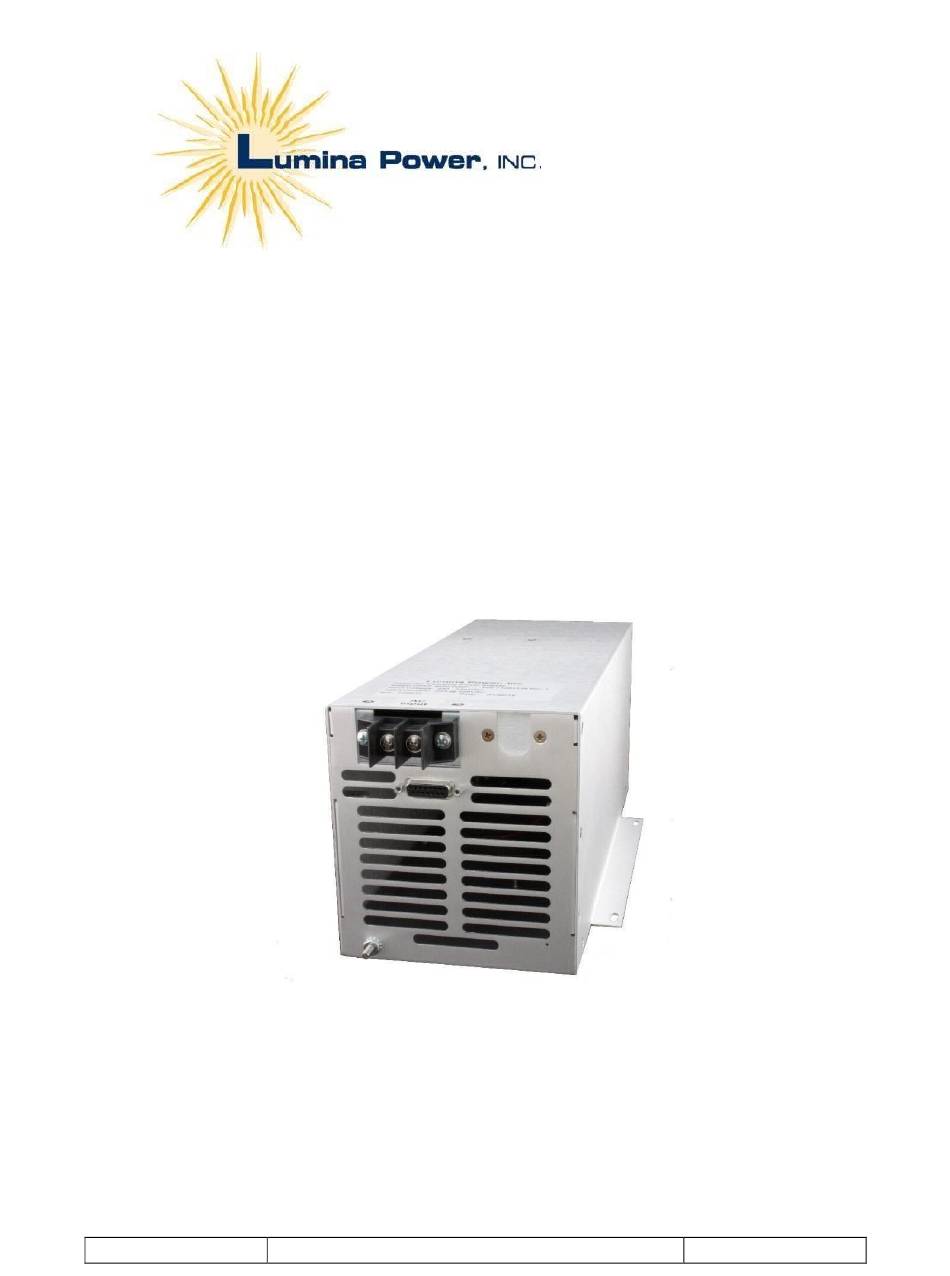

- Page 1 26 Ward Hill Ave., Bradford, MA 01835 Phone: 978-241-8260 Fax: 978-241-8262 USER MANUAL CCPF-3500-XX CCPF-4000-XX 3.5 to 4.0 kJ/s Capacitor Charging Power Supply Series 02100004 Rev 1 CCPF-3500-XX User Manual Page 1 of 15...
-
Page 2: Table Of Contents
Table of Contents Description of CCPF-3500-XX Power Supply ............3 Explanation of Symbols....................4 CCPF-3500 Specifications ..................5 CCPF-3500 Interface ....................6 Typical Applications....................9 5.1 Using a CCPF with a pulse forming network (PFN) ..........9 5.2 Using a CCPF with a partial discharge network (Reservoir Charging) ....10 5.3 Using a CCPF with multiple PFNs or capacitors .......... -
Page 3: Description Of Ccpf-3500-Xx Power Supply

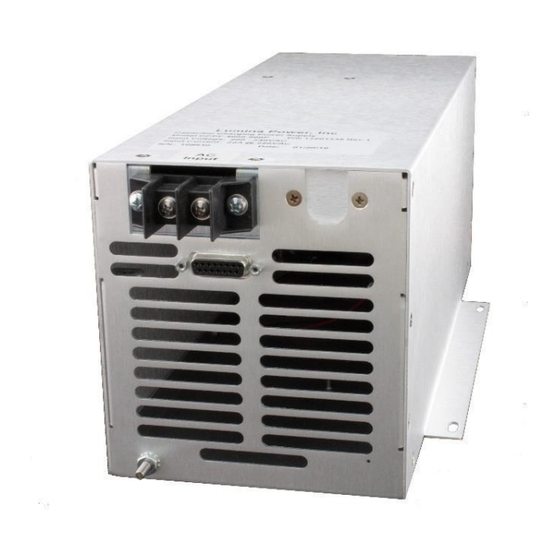

1. Description of CCPF-3500-XX Power Supply The CCPF-3500/4000-XX capacitor charging power supplies are designed for OEM laser manufacturers. The CCPF-3500 power supply provides up to 3500 J/s average charging power for full discharge PFN applications, while the CCPF-4000 power supply provides up to 4000 J/s charging power for reservoir capacitor banks. -
Page 4: Explanation Of Symbols
Power, Inc. are qualified to service this equipment. High Voltage Present. This power supply produces lethal high voltages. Only service personnel of Lumina Power, Inc., are qualified to service this equipment. Only qualified service personnel are permitted to install this power supply. -
Page 5: Ccpf-3500 Specifications
3. CCPF-3500/4000-XX Specifications XX indicates output voltage with P for positive and N for negative. Input Voltage 200 - 240 VAC, single phase Current 22 A maximum at 200 VAC and 18.4A maximum at 240 VAC Frequency 47 - 64Hz Output Power: 3500 J/s average charge rate for full discharge PFN... -
Page 6: Ccpf-3500 Interface
4. CCPF-3500 Interface Connector Type 15 pin D-sub Female Refer to Figure 2, CCPF-3500 Interface Schematic Table 1, CCPF Interface Pin # Pin Name Functional Level Description This pin is the basic ON/OFF control pin for the power Inhibit/Fault Low = RUN, <0.3V supply. - Page 7 Notes: 1. Analog voltage range of 0-5V available per customer request. 2. Other interface configurations are available to conform to older capacitor charger models or customer requests, contact Lumina Power for any interface changes. 02100004 Rev 1 CCPF-3500-XX User Manual...
- Page 8 Figure 3, CCPF-3500 Mechanical Outline Drawing 02100004 Rev 1 CCPF-3500-XX User Manual Page 8 of 15...
-
Page 9: Typical Applications
5. Typical Applications 5.1 Using a CCPF with a pulse forming network (PFN) The above block diagram shows a typical connection between a CCPF capacitor charging power supply and a well matched pulse forming network. In a typical operation, when the CCPF is ENABLED via Pin 1, the INHIBIT function, the CCPF will charge up the PFN capacitor to the programmed value and then transmit an END OF CHARGE signal to the user. -
Page 10: Using A Ccpf With A Partial Discharge Network (Reservoir Charging)
5.2 Using a CCPF with a partial discharge network (Reservoir Charging) In this application, the power supply is ENABLED via the INHIBIT function and charges up the capacitor bank to the programmed voltage. The IGBT will deliver short, high current pulses to the flashlamp. The power supply does not need to be inhibited during this process and continuously maintains the capacitor bank charged. -
Page 11: Using A Ccpf With Multiple Pfns Or Capacitors
5.3 Using a CCPF with multiple PFNs or capacitors In applications where the power supply has to charge 2 or more separate capacitors which are discharged at different times, diodes must be used in series with the output to prevent one cap from discharge into the other. -
Page 12: Warnings
To avoid risk of electric shock, this equipment must only be connected to a supply mains with protective earth WARNING : Only Lumina Power, Inc. qualified service personnel are allowed to remove the covers and service this equipment. WARNING : NEVER OPERATE THE POWER SUPPLY: 1. -
Page 13: Installation
Only qualified technicians or qualified assemblers may install these power supplies. Only qualified Lumina Power personnel may service these power supplies. There are no user serviceable parts in this equipment. Required wire and connectors : Refer to Figure 3, CCPF-3500 Mechanical ... -
Page 14: Product Limited Warranty
8. Product Limited Warranty Lumina Power, Inc., as Seller, warrants that each Product sold by it is free of defects in materials and workmanship. Duration of warranty is as follows: a. All Chassis enclosed products are covered for twenty four (24) months from date of shipment. Products included but are not limited to the following product families: CCPF, CCHP, LDY, LDYHC, LDQCW, XLB (excluding XLB-300), and MLB. -
Page 15: Service
9. Service This unit contains no user serviceable parts. Service and repair should be performed only by qualified personnel from Lumina Power, Inc. For more information contact Lumina Power, Inc. 26 Ward Hill Ave., Bradford, MA 01835 Ph: 978-241-8260 Fx: 978-241-8262 Web site: www.luminapower.com...
