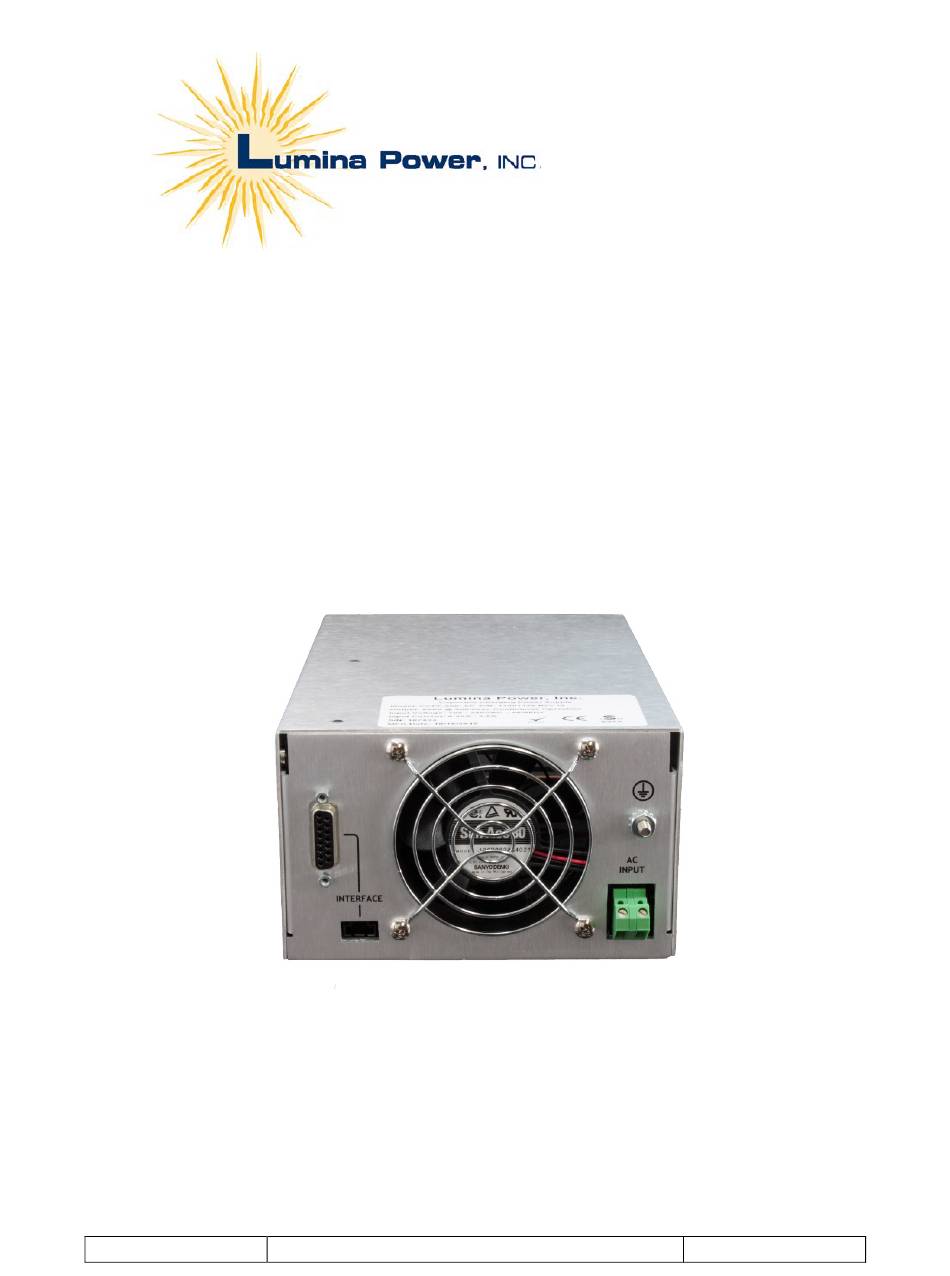

- Page 1 26 Ward Hill Ave., Bradford, MA 01835 Phone: 978-241-8260 Fax: 978-241-8262 USER MANUAL CCPF-500-XX CCPF-750-XX 500 to 750 J/s Capacitor Charging Power Supply Series 02100005 Rev 1 CCPF-500 CCPF-750 User Manual Page 1 of 17...
-
Page 2: Table Of Contents
Table of Contents Description of CCPF-500/750 Power Supply ............. 3 Explanation of Symbols....................4 CCPF-500/750-XX Specifications ................5 CCPF-500 Interface ..................... 6 Typical Applications....................11 Using a CCPF with a pulse forming network (PFN) ............. 11 Using a CCPF with a partial discharge network (Reservoir Charging) ......12 Using a CCPF with multiple PFNs or capacitors ............ -
Page 3: Description Of Ccpf-500/750 Power Supply
1. Description of CCPF-500/750 Power Supply The CCPF-500/750-XX capacitor charging power supplies are designed for OEM laser manufacturers. The CCPF-500 power supply provides up to 500 J/s average charging power for capacitor discharge PFN applications with universal AC mains input from 100 to 240 VAC. -
Page 4: Explanation Of Symbols
Power, Inc. are qualified to service this equipment. High Voltage Present. This power supply produces lethal high voltages. Only service personnel of Lumina Power, Inc., are qualified to service this equipment. Only qualified service personnel are permitted to install this power supply. -
Page 5: Ccpf-500/750-Xx Specifications
3. CCPF-500/750-XX Specifications XX indicates output voltage with P for positive and N for negative. Input of CCPF-500 Voltage 100 - 240 VAC, single phase Current 5.2 A max at 120 VAC and 2.6 A max at 240 VAC Frequency 47 - 64Hz Input of CCPF-750 Voltage... -
Page 6: Ccpf-500 Interface
Notes: 1. Analog voltage range of 0-5V available per customer request. 2. Other interface configurations are available to conform to customer requests, contact Lumina Power for any interface changes. 02100005 Rev 1 CCPF-500 CCPF-750 User Manual Page 6 of 17... - Page 7 Figure 2, CCPF-500 15-pin Interface Schematic 02100005 Rev 1 CCPF-500 CCPF-750 User Manual Page 7 of 17...
- Page 8 Refer to Figure 3, CCPF-500 Optional 4-pin Interface Schematic Table 2, Optional 4 Pin Interface Pin # Pin Name Functional Level Description This pin is the basic ON/OFF control pin for the power supply. Grounding pin 1 enables power supply operation if all faults are clear.
- Page 9 Figure 4, CCPF-500 Mechanical Outline Drawing Dimensions in inches, [mm in parenthesis]. 02100005 Rev 1 CCPF-500 CCPF-750 User Manual Page 9 of 17...
- Page 10 Figure 5, CCPF-500 Input Side Drawing Dimensions in inches, [mm in parenthesis]. Figure 6, CCPF-500 Output Side Drawing Dimensions in inches, [mm in parenthesis]. 02100005 Rev 1 CCPF-500 CCPF-750 User Manual Page 10 of 17...
-
Page 11: Typical Applications
5. Typical Applications Using a CCPF with a pulse forming network (PFN) The above block diagram shows a typical connection between a CCPF capacitor charging power supply and an overdamped pulse-forming network. In a typical operation, when the CCPF is ENABLED via Pin 1, the INHIBIT function, the CCPF will charge up the PFN capacitor to the programmed value and then transmit an END OF CHARGE signal to the user. -
Page 12: Using A Ccpf With A Partial Discharge Network (Reservoir Charging)
5.2 Using a CCPF with a partial discharge network (Reservoir Charging) In this application, the power supply is ENABLED via the INHIBIT function and charges up the capacitor bank to the programmed voltage. The IGBT will deliver short, high current pulses to the flashlamp. The power supply does not need to be inhibited during this process and continuously maintains the capacitor bank charged. -
Page 13: Using A Ccpf With Multiple Pfns Or Capacitors
Using a CCPF with multiple PFNs or capacitors In applications where the power supply has to charge two or more separate capacitors, which are discharged at different times, diodes must be used in series with the output to prevent one cap from discharge into the other. In addition, a resistor must be in parallel with each diode to help the power supply to “see”... -
Page 14: Warnings
To avoid risk of electric shock, this equipment must only be connected to supply mains with protective earth WARNING: Only Lumina Power, Inc. qualified service personnel are allowed to remove the covers and service this equipment. WARNING: NEVER OPERATE THE POWER SUPPLY: 1. -
Page 15: Installation
• Only qualified technicians or qualified assemblers may install these power supplies. • Only qualified Lumina Power personnel may service these power supplies. • There are no user serviceable parts in this equipment. • Required wire and connectors: Refer to Figure 5, CCPF-500 Input Side Drawing and Figure 6, CCPF-500 Output Side Drawing for the locations of connections. -
Page 16: Product Limited Warranty
8. Product Limited Warranty Lumina Power, Inc., as Seller, warrants that each Product sold by it is free of defects in materials and workmanship. Duration of warranty is as follows: a. All Chassis enclosed products are covered for twenty four (24) months from date of shipment. Products included but are not limited to the following product families: CCPF, CCHP, LDY, LDYHC, LDQCW, XLB (excluding XLB-300), and MLB. -
Page 17: Service
9. Service This unit contains no user serviceable parts. Service and repair should be performed only by qualified personnel from Lumina Power, Inc. For more information contact Lumina Power, Inc. 26 Ward Hill Ave., Bradford, MA 01835 Ph: 978-241-8260 Fx: 978-241-8262 Email: sales@luminapower.com...
