Tru Vue TVFMU Installation Manual page 5

attaching to screen with recessed back
2-2

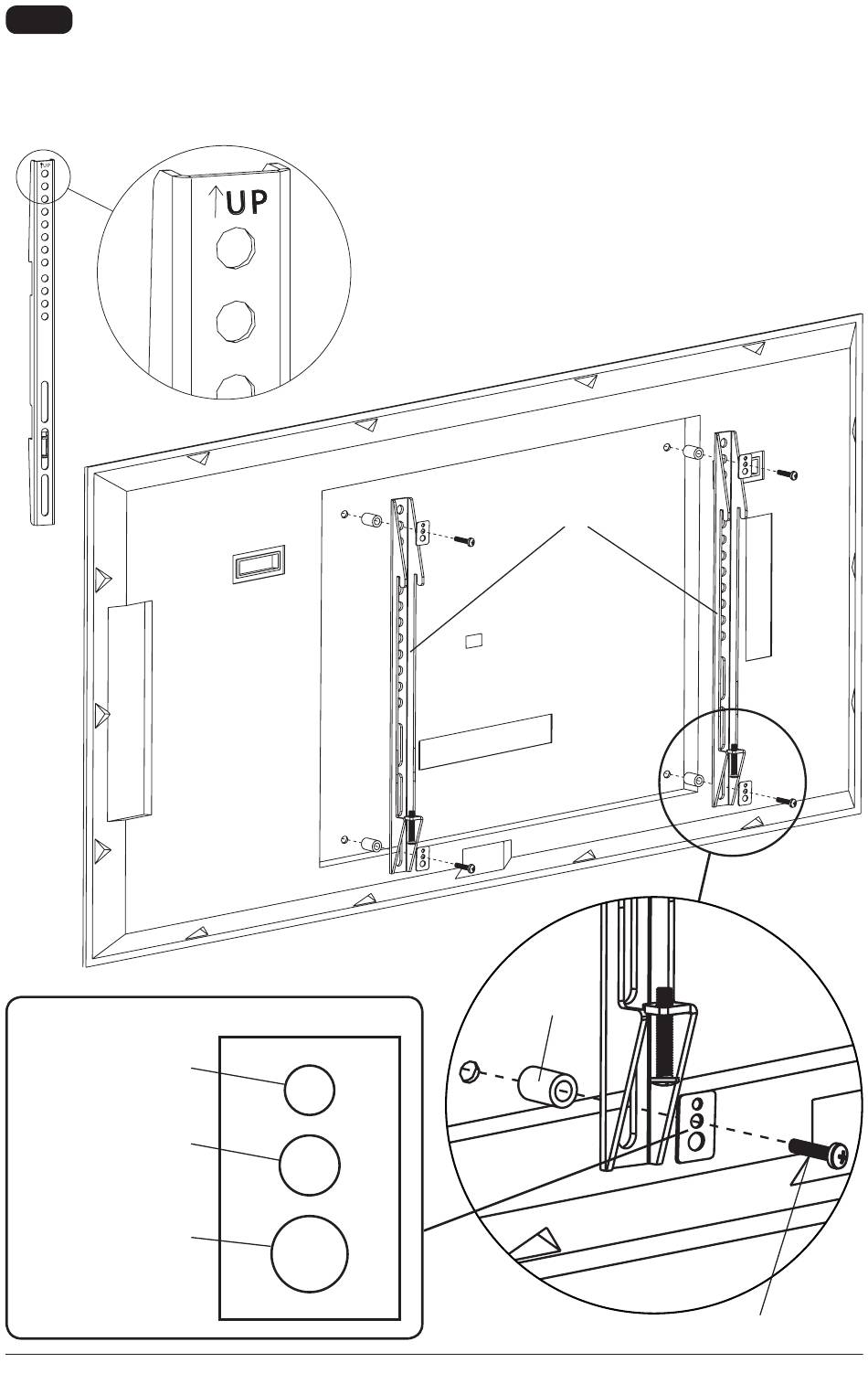

Center brackets (M) vertically on back of screen. Select the medium (E) or large (F) screws. Attach
brackets to screen using four selected screws, four square washers (g) and four spacers (K) at the
top and bottom of each bracket. Screw must make at least three full turns into the mounting hole and
fit snug into place. Tighten screws firmly. Do not overtighten.
SqUArE wASHEr (g)
Small hole for
M4 screws
Medium hole for
M5 and M6 screws
Large hole for
M8 screws
M
K
5 of 24
SCrEw
ISSUED: 09-11-09 SHEET #: 202-9372-1
