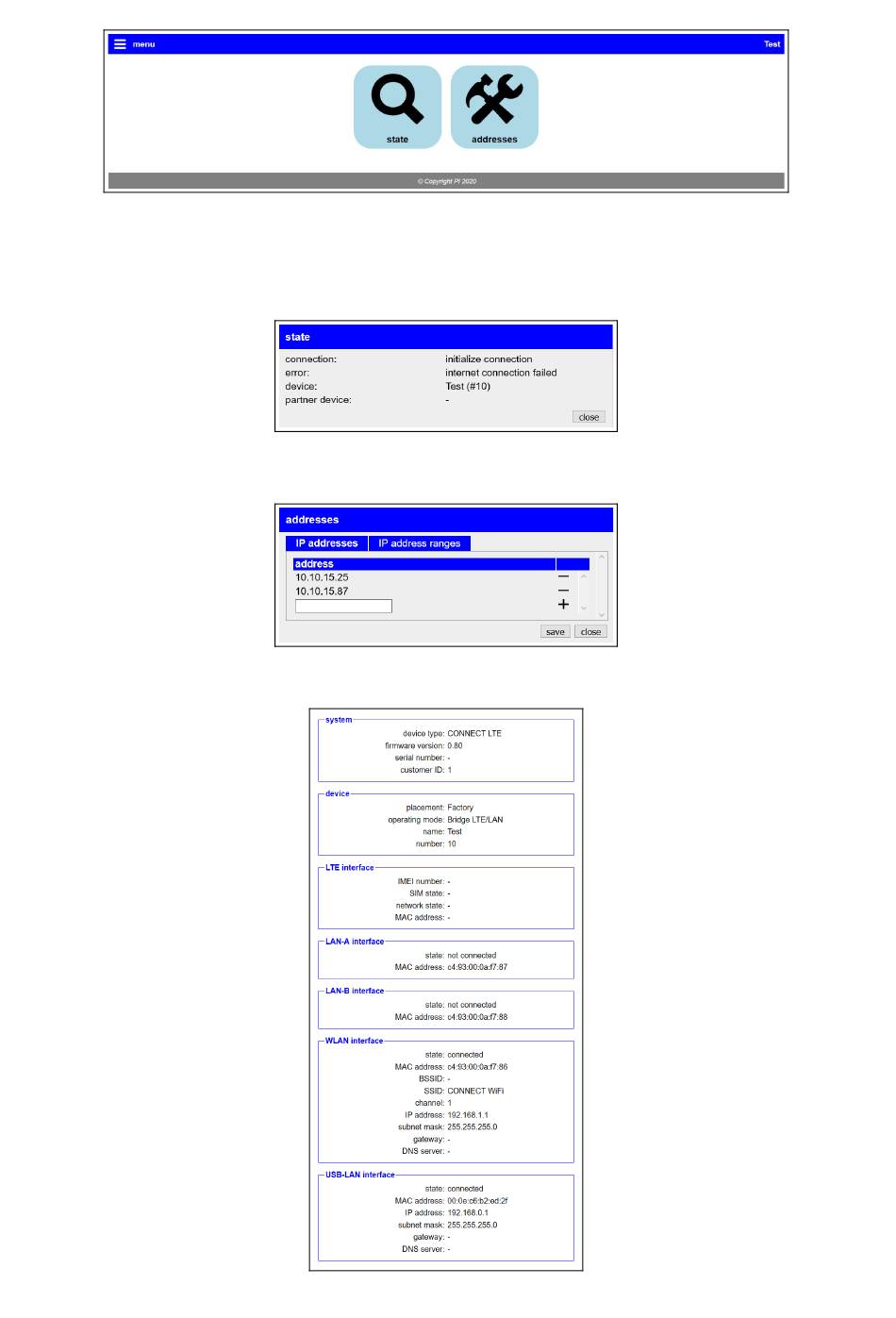

Menu overview (overview of the device) :
The menu is divided into status and addresses (only with operating mode: BRIDGE). Clicking on the respective
area opens a corresponding window. All other menus are shown in this menu frame .
The status display shows parameters of the connection, error messages and information about the connected
devices :
The Addresses menu is required so that in the "BRIDGE" operating mode the CONNECT device knows which
destination IP address (es) or IP range the system / PLC has to manage :
The status menu shows information about the IP / MAC addresses of the connection and information about the
device:
(Menu item LTE interface only with CONNECT-LTE )
