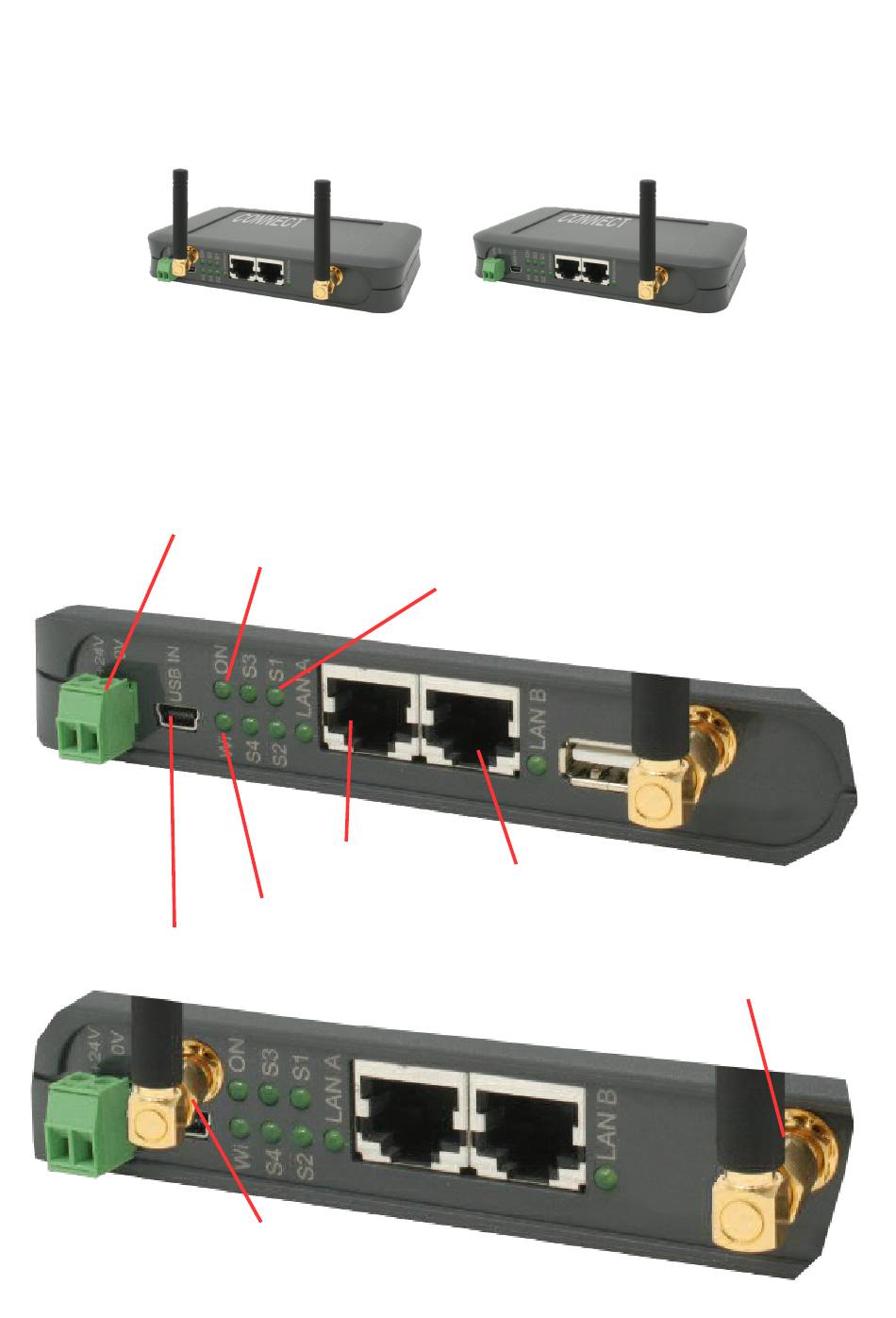

Voltage connection :

Voltage:
Power:
Anschlüsse:
Antenna connection:
Operation Quick Start Guide V1.0 for
Machine access without IT knowledge
9354-CONNECT-LTE
24 V DC ± 20%
9354-CONNECT
9354-CONNECT-LTE
Power supply 24V DC
Power ON
on:
flashing: WIFI-communication running
Power supply via USB interface (only 9354-CONNECT)
LTE
CONNECT
2W
12W (no supply via USB port possible)
flashing:
permanently ON:
to network
WIFI active
9354-CONNECT
synchronisation with partner
connected with partner
to PC
WIFI

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9354-CONNECT-LTE and is the answer not in the manual?

Questions and answers

Summary of Contents for process-informatik 9354-CONNECT-LTE

  • Page 1 Operation Quick Start Guide V1.0 for CONNECT Machine access without IT knowledge 9354-CONNECT-LTE 9354-CONNECT Voltage connection : Voltage: 24 V DC ± 20% Power: 9354-CONNECT 9354-CONNECT-LTE 12W (no supply via USB port possible) Anschlüsse: Power supply 24V DC Power ON...
  • Page 2 First commissioning : CONNECT/CONNECT-LTE creates WLAN network with SSID "CONNECT WIFI" – with active DHCP master (laptop is automatically assigned an IP address) – Connect laptop to this WiFi network and open with – browser the webserver with IP: http://192.168.1.1: Peculiarity: Menu item LTE modem : only visible with CONNECT-LTE, here first enter the pin number of...
  • Page 3 Explanation of parameters : Placement: Home (PC-site) Factory (plant/maschine/PLC-site) Device name: Name of this device (max. 15 character ) Device number: Number of this device (1-65535) for assignment of the connection (no duplicate device numbers allowed, please note !) Only HOME: operating mode LAN A LAN B...
  • Page 4 Menu overview (overview of the device) : The menu is divided into status and addresses (only with operating mode: BRIDGE). Clicking on the respective area opens a corresponding window. All other menus are shown in this menu frame . The status display shows parameters of the connection, error messages and information about the connected devices : The Addresses menu is required so that in the "BRIDGE"...
  • Page 5 In the Configuration menu, the expert configuration will be carried out differently from the quick commissioning of the device. For example, you can set the DHCP mode, set IP addresses, and carry out the basic configuration of the device again. LAN-B settings only for CONNECT-LTE (operating mode (AUTO) LTE settings only for CONNECT-LTE In the Firmware Update menu, the firmware of the CONNECT and CONNECT-LTE is updated.
  • Page 6 9354-CONNECT Under the web-address https://www.process-informatik.de are product specific documentations or software-driver/-tools available to download. If you have questions or suggestions about the product, please don’t hesitate to contact us. Process-Informatik Entwicklungsgesellschaft mbH Im Gewerbegebiet 1 DE-73116 Wäschenbeuren +49 (0) 7172-92666-0 info@process-informatik.de...
  • Page 7 Oxygen analysis in industrial gases Sie benötigen eine kontinuierliche Messung des Sauerstoffgehaltes ohne dass Sie eine Bedienfunktion am Gerät oder Messbereichsumschaltung durchführen wollen? Kein Problem, mit den OSC-II-Geräten haben Sie genau das passende Gerät. Es zeigt Ihnen den O2-Wert von % bis runter zu E -24 ohne dass Sie einen Handgriff tun müssen. Es schaltet automatisch zwischen den Messbereichen um.
  • Page 8 Operation as bridge Sie haben zwei oder mehrere Teilnehmer die ohne LAN-Kabelverbindung miteinander kommunizieren sollen? Kein Problem, Sie schließen einen als "Access-Point" parametrierten ALF an den einen Teilnehmer und an den/die anderen Teilnehmer einen als "Client" parametrierten ALF. Dann jeweils den "Client" mit dem "Access-Point" verbinden und schon können die Teilnehmer untereinander kommunizieren.
