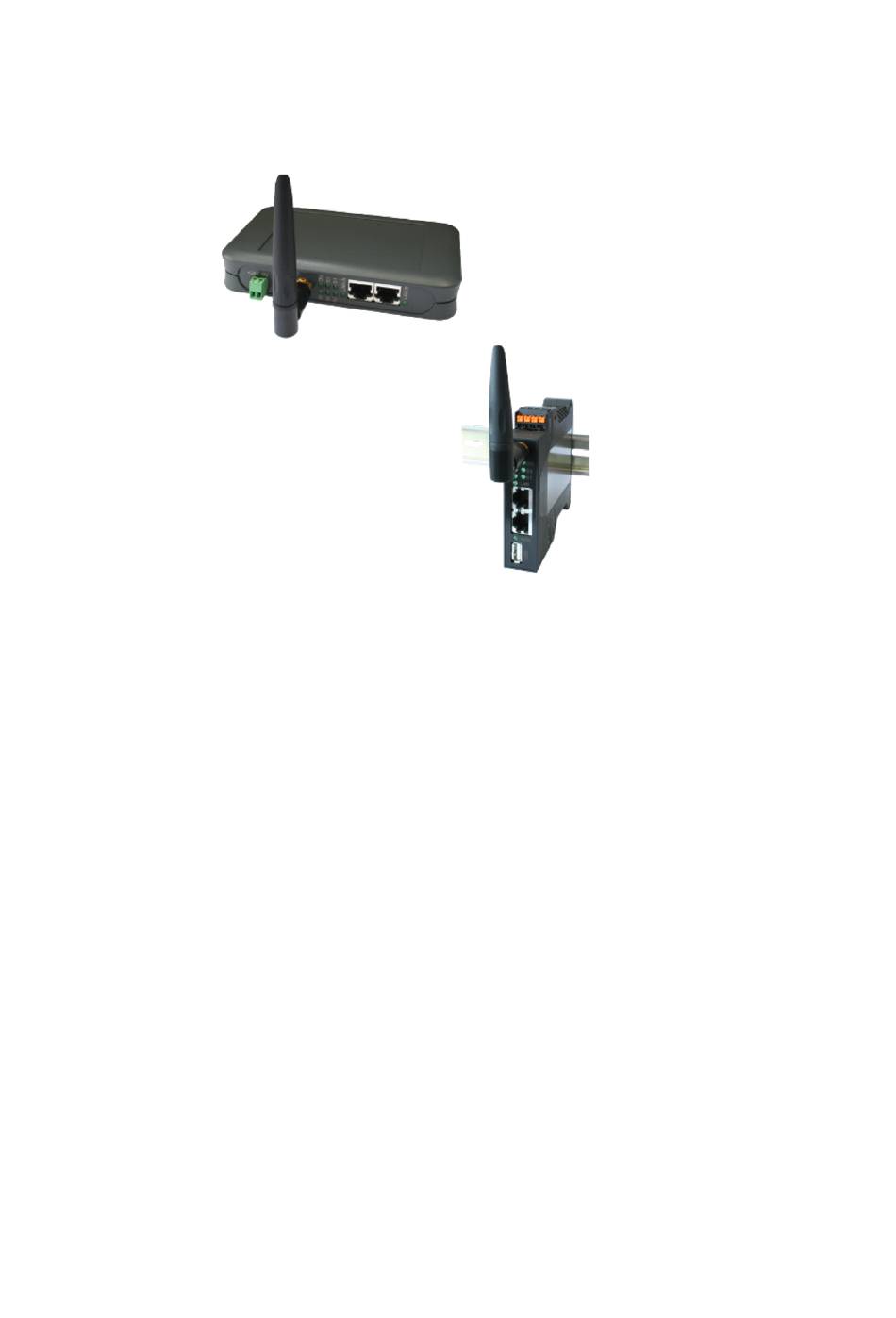

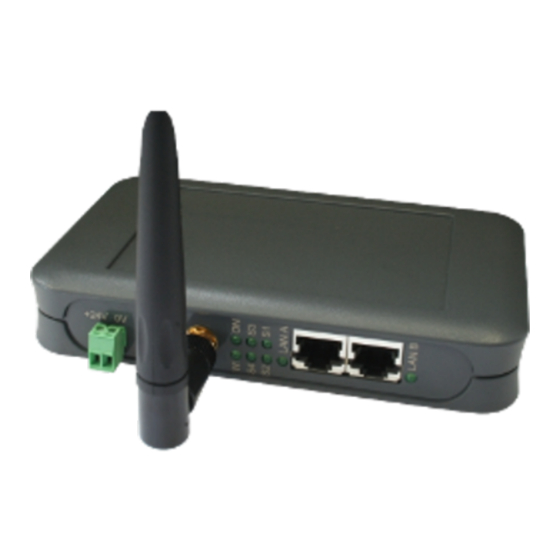

Handling short instructions for
ProfiNet-WATCHDOG

power supply:

If you want to use the device you have to supply power to it first.
The device can either be powered with 5V via the USB connector (only for desktop case) or with
24V via the included phoenix connector
(attention: polarity must be
respected).

access to the web interface:

After you have supplied power to your device you have the ability to access the web interface of the
device.
The ProfiNet-WATCHDOG provides an own WLAN network via it's integrated WLAN interface.
The WLAN network has the name „ProfiNet-WATCHDOG WiFi". This network is not encrypted,
so you can connect to it easily without entering a password or something else.
If you are connected with the WLAN network of the ProfiNet-WATCHDOG your computer or
smart phone get's an IP address automatically via DHCP. If your computer / smart phone is not
configured for DHCP you can either configure your network card to use an IP address between
192.168.1.2 and 192.168.1.254 or activate DHCP on it.
If your computer doesn't have a WLAN interface or if you don't want to use it you can still access
the ProfiNet-WATCHDOG through the optionally available "Ethernet over USB" adapter. If you
have brought the adapter already, you only have to connect it to the USB socket of the device. On
the LAN interface of the adapter a DHCP server is also running by default. If your PC is not
configured for DHCP you can either configure your network card to use an IP address between
192.168.0.2 and 192.168.0.254 or activate DHCP on it.
