INSTALLATION INSTRUCTIONS

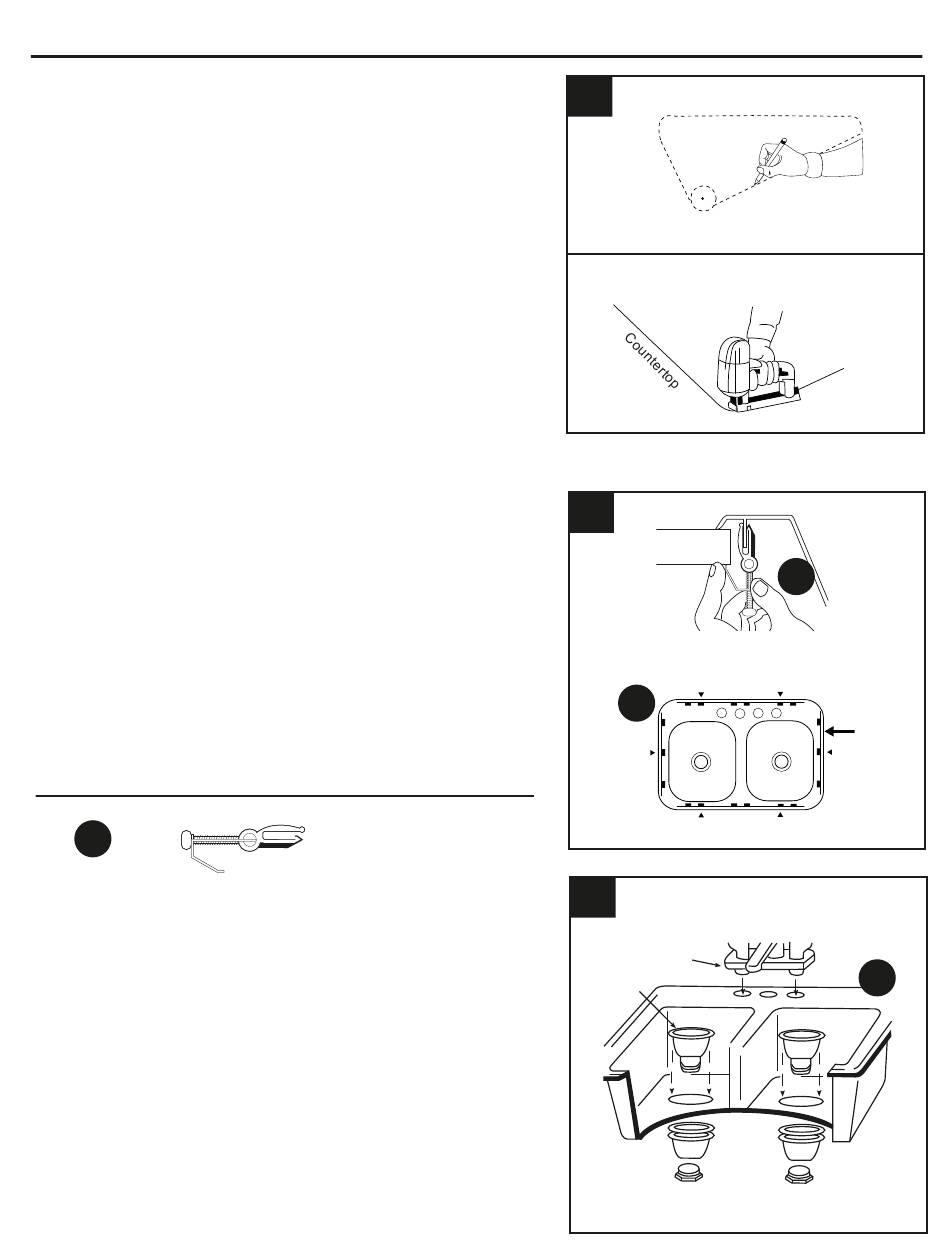

4. Prepare a New Countertop (using provided template)
A. Template is located on the outside of the carton.
Cut along dotted line. Measure the cutout line and
compare to all sink dimensions. The cutout line
should be 1/2 in. smaller than overall sink dimension.
B. Trace on the countertop completely around the
edge of the template.
C. Drill a pilot hole inside the cutting line.
D. Using a jigsaw, cut along the inside
line to cut the opening in the countertop.
5. Apply Mounting Clips
A. Turn sink (A) upside down onto a clean, soft surface.
B. Slide the clips (AA) over the pre-drilled mounting slot
in the rim of sink (A). (See diagram for clip
placement). Make sure jaws of clips (AA) are facing
toward outside edge of sink (A).
C. Make sure the snaps of clips (AA) are fully seated
into the mounting slot.
D. Turn all jaws of clips (AA) parallel to the rim of
sink (A).
Hardware Used
AA
Clip
6. Install Accessories
Attach faucet and drains (not included) to sink (A). Use
plumber's putty or silicone sealant (not included) under
the faucet base and under the top flange of the drain to
provide a leak-proof seal.
x 6
