Andrew CommScope Metro Cell Series Installation Instructions

Metro Cell Family Antennas
Bulletin 639843 • Revision A • AUGUST 2015

GENERAL INFORMATION

The Metro Cell antenna (Figure 1) is a wide band,
compact antenna including a GPS antenna inside.
It is the responsibility of qualified personnel to
determine the best method for securely anchoring the
base plate of the antenna to the mounting surface.

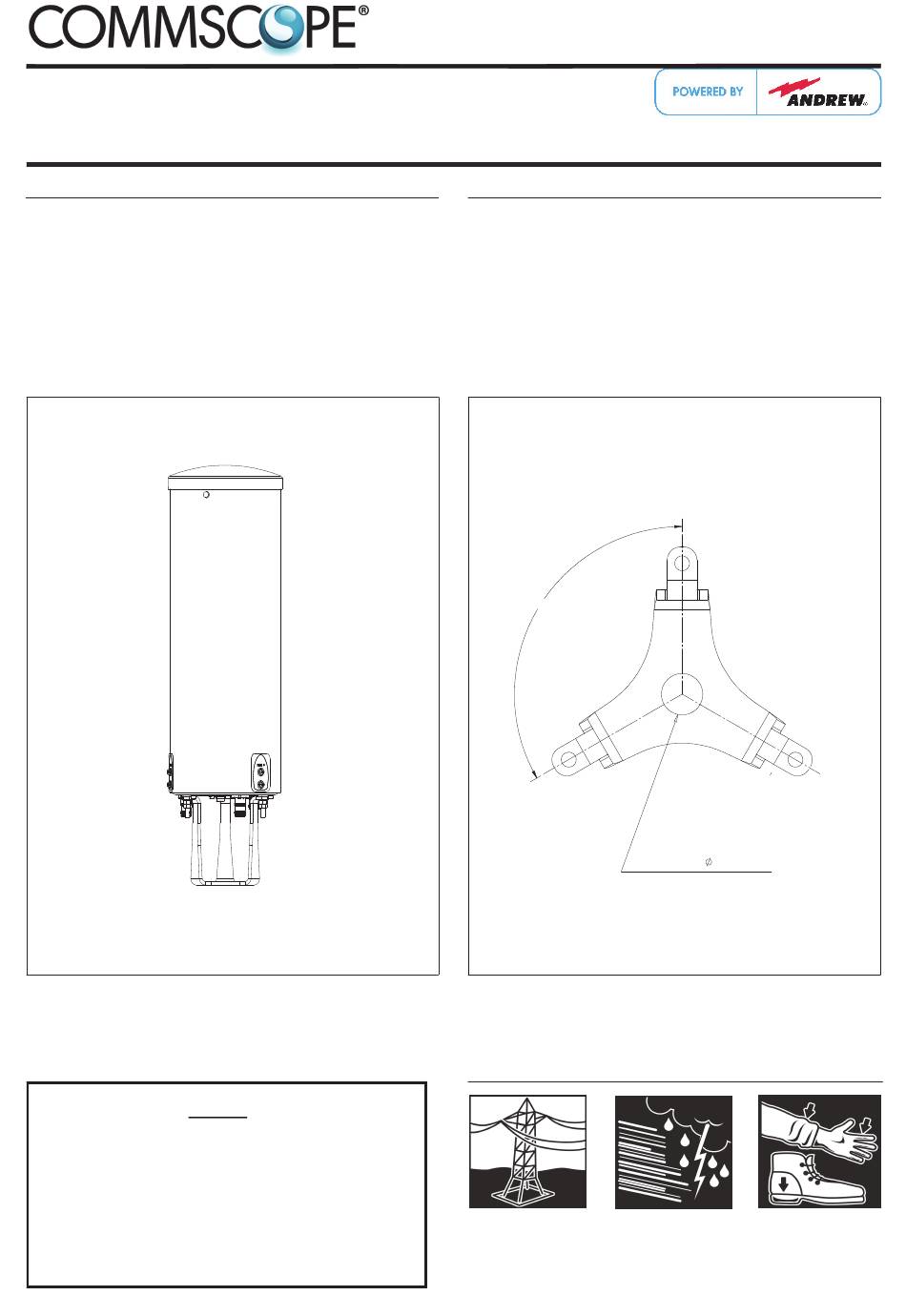

Figure 1. Metro Cell Antenna.
NOTICE
The installation, maintenance, or removal of an antenna
requires qualified, experienced personnel. Commscope
installation instructions are written for such installation
personnel. Antenna systems should be inspected once a
year by qualified personnel to verify proper installation,
maintenance, and condition of equipment. Commscope
disclaims any liability or responsibility for the results of
improper or unsafe installation practices.
•
Page 1 of 2
INSTALLATION INSTRUCTIONS
• Examine antenna and hardware to ensure that all
• Verify that the frequency range shown on the label
Do not install near power
lines. Power lines, telephone
lines, and guy wires look the
same. Assume any wire or
line can electrocute you.
Installation Instructions
CommScope Infrastructure Academy offers installation training.
parts are enclosed and that there is no physical
damage.
on the bottom of the antenna matches the
frequency range of the station equipment.
3X 120.0°
Mounting hole
Recommended hardware is M24
Figure 2. Mounting and Cable Routings Holes on Base.
Do not install on a wet or
windy day or when lightning
or thunder is in the area. Do
not use metal ladder.
25.0 mm
(continued on page 2)
Wear shoes with rubber soles
and heels. Wear protective
clothing including a long-
sleeved shirt and rubber
gloves.
