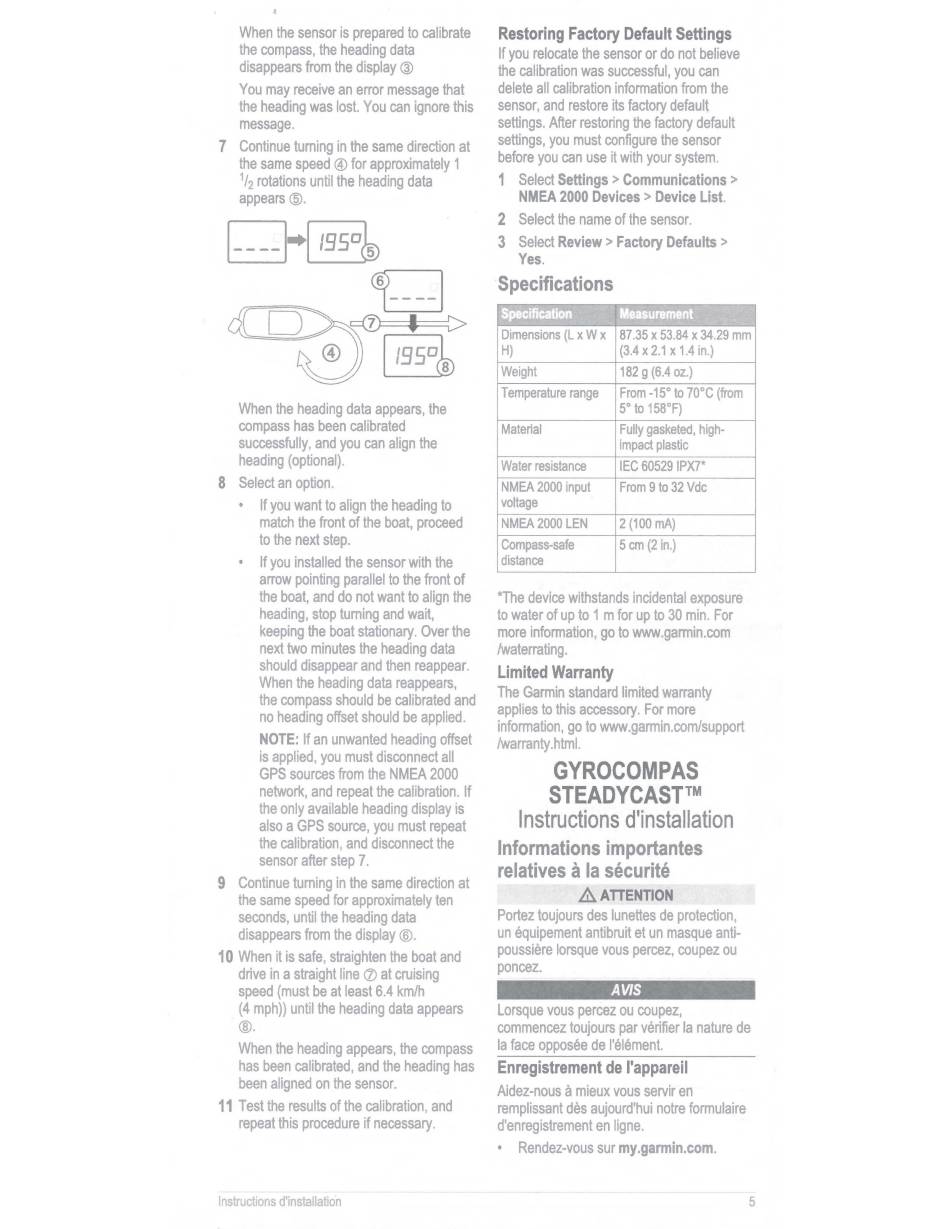

When the sensor is prepared to calibrate
the compass, the heading data
disappears from the display@
You may receive an error message that
the heading was lost. You can ignore this
message.
7
Continue turning in the same direction at
the same speed
@
for approximately 1
1 /
2
rotations until the heading data
appears@.
When the heading data appears, the
compass has been calibrated
successfully, and you can align the
heading (optional).
8
Select an option.
• If you want to align the heading to
match the front of the boat, proceed
to the next step.
• If you installed the sensor with the
arrow pointing parallel to the front of
the boat, and do not want to align the
heading, stop turning and wait,
keeping the boat stationary. Over the
next two minutes the heading data
should disappear and then reappear.
When the heading data reappears,
the compass should be calibrated and
no heading offset should be applied.
NOTE: If an unwanted heading offset
is applied, you must disconnect all
GPS sources from the NMEA 2000
network, and repeat the calibration. If
the only available heading display is
also a GPS source, you must repeat
the calibration, and disconnect the
sensor after step 7.
9 Continue turning in the same direction at
the same speed for approximately ten
seconds, until the heading data
disappears from the display
@.
10
When it is safe, straighten the boat and
drive in a straight line
(J)
at cruising
speed (must be at least 6.4 km/h
(4 mph)) until the heading data appears
®·
When the heading appears, the compass
has been calibrated, and the heading has
been aligned on the sensor.
11 Test the results of the calibration, and
repeat this procedure if necessary.
Instructions d'installatio·n
Restoring Factory Default Settings
If you relocate the sensor or do not believe
the calibration was successful, you can
delete all calibration information from the
sensor, and restore its factory default
settings. After restoring the factory default
settings, you must configure the sensor
before you can use it with your system.
1 Select Settings > Communications >
NMEA 2000 Devices > Device List.
2
Select the name of the sensor.
3
Select Review> Factory Defaults>
Yes.
Specifications
lh.,, :, ...
IW:liTt
I C
leY,1.c'i : •
i ,
\;!{~f:::~;~!•(:"-
., ,·,ai-.••·" ,,.,.:a~• ~: -~
·'l.•--~~·_;j [•~-
Dimensions (L x W x 87.35 x 53.84 x 34.29 mm
H) (3.4
X
2.1
X
1.4 in.)
Weight 182 g (6.4 oz.}
Temperature range From -15° to 70°C (from
5° to 158°F)
Material Fully gasketed, high-
impact plastic
Water resistance IEC 60529 IPX?*
NMEA 2000 input From 9 to 32 Vdc
voltage
NMEA2000LEN 2 (100 mA)
Compass-safe
5 cm (2 in.)
distance
*The device withstands incidental exposure
to water of up to 1 m for up to 30 min. For
more information, go to www.garmin.com
/waterrating.
Limited Warranty
The Garmin standard limited warranty
applies to this accessory. For more
information, go to www.garmin.com/support
/warranty.html.
GYROCOMPAS
STEADY CAST™
Instructions d'installation
Informations importantes
relatives
a
la securite
&ATTENTION
Portez toujours des lunettes de protection,
un equipement antibruit et un masque anti-
poussiere lorsque vous percez, coupez ou
poncez.
AVIS
Lorsque vous percez ou coupez,
commencez toujours par verifier la nature de
la face opposee de !'element.
Enregistrement de l'appareil
Aidez-nous
a
mieux vous servir en
remplissant des aujourd'hui notre formulaire
d'enregistrement en ligne.
• Rendez-vous sur my.garrnin.com.
