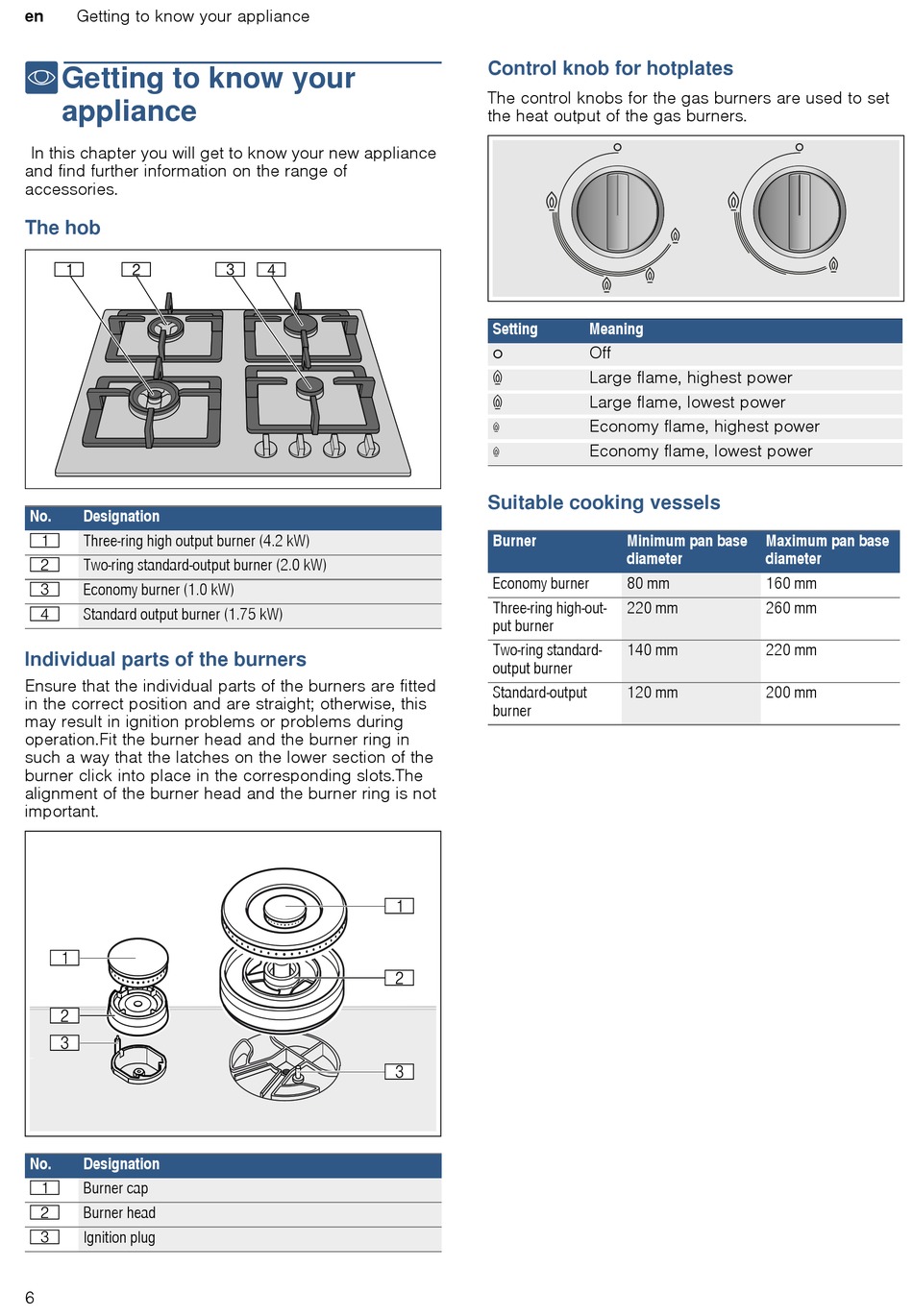

Getting to know your appliance

en
*Getting to know your
appliance
I n this chapter you will get to know your new appliance
G e t t i n g t o k n o w y o u r a p p l i a n c e
and find further information on the range of
accessories.

The hob

No. Designation
Three-ring high output burner (4.2 kW)
(
Two-ring standard-output burner (2.0 kW)
0
Economy burner (1.0 kW)
8
Standard output burner (1.75 kW)
@

Individual parts of the burners

Ensure that the individual parts of the burners are fitted
in the correct position and are straight; otherwise, this
may result in ignition problems or problems during
operation.Fit the burner head and the burner ring in
such a way that the latches on the lower section of the
burner click into place in the corresponding slots.The
alignment of the burner head and the burner ring is not
important.
No. Designation
Burner cap
(
Burner head
0
Ignition plug
8
6

Control knob for hotplates

The control knobs for the gas burners are used to set
the heat output of the gas burners.
Setting Meaning
Off
Û
Large flame, highest power
—
Large flame, lowest power
—
Economy flame, highest power
˜
Economy flame, lowest power
˜

Suitable cooking vessels

Burner Minimum pan base
diameter
Economy burner 80 mm
Three-ring high-out- 220 mm
put burner
Two-ring standard- 140 mm
output burner
Standard-output 120 mm
burner
--------
Maximum pan base
diameter
160 mm
260 mm
220 mm
200 mm
