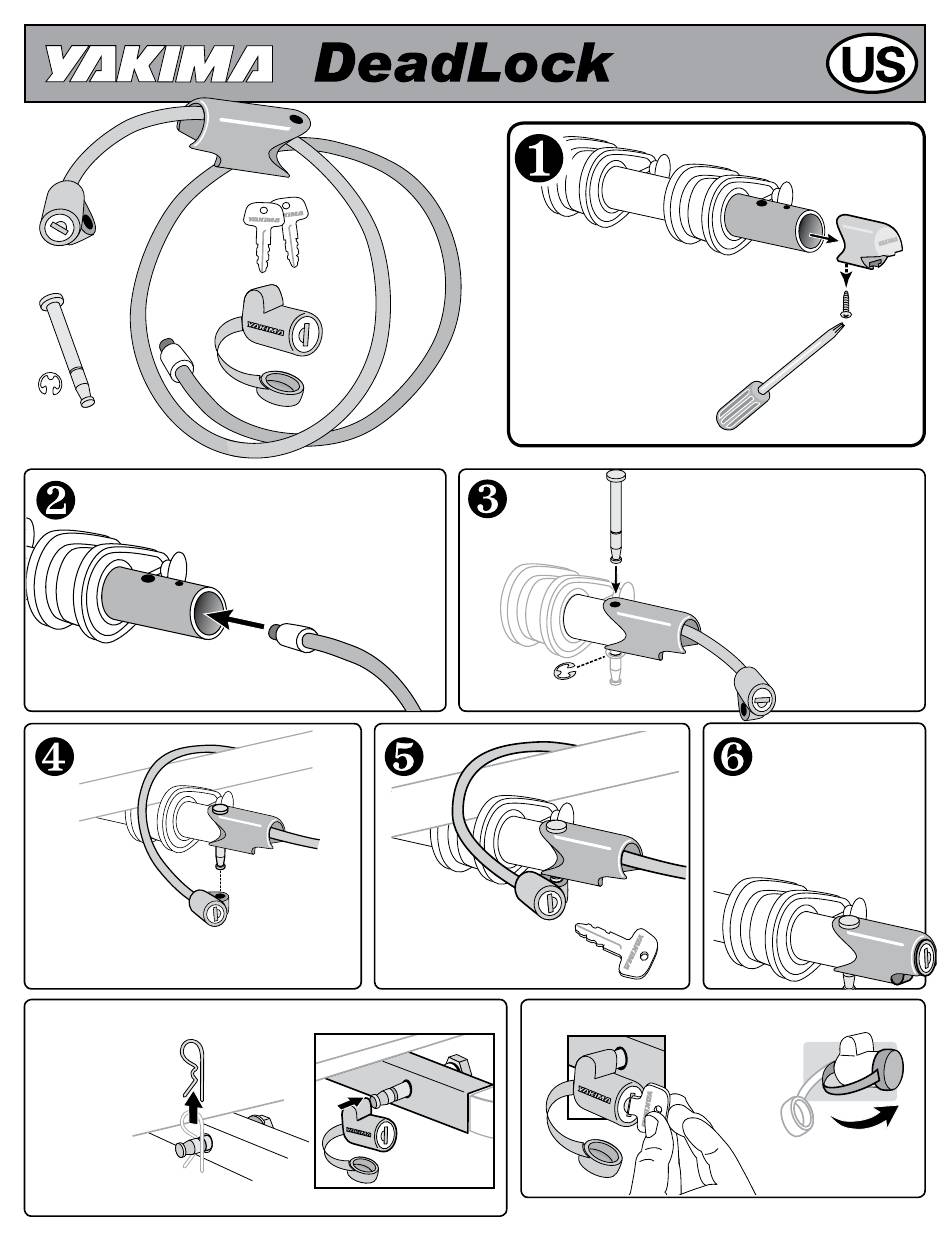

Yakima DeadLock Installation Instructions

• Wrap cable around last bike's frame.
• Attach lock to pin.
LOCK the Carrier tO the VehCiLe.
• Remove
hitch pin.
• Attach
hitch lock.
1034195A-1/4
Insert the cable end
completely into the arm.
Remove the RIght sIde end-cap
with a Phillips screwdriver.
2
Lock the lock.
Insert the key and lock the lock.
• Align the holes.
• hold the cap in place
1
and insert the pin.
• Attach the "e" clip.
stow lock when
not in use.
Close the
lock cap.
Part #1034195 Rev.A
