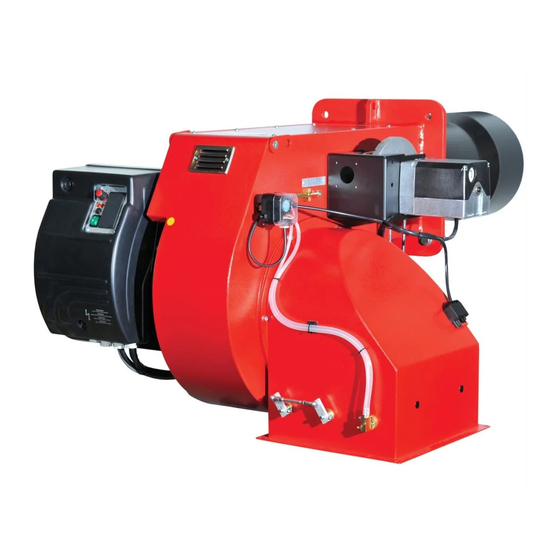

Ecoflam Blu 5000.1 PR Manual

Modulating and progressive gas burners
Hide thumbs Also See for Blu 5000.1 PR:
Table of Contents

Advertisement

Quick Links

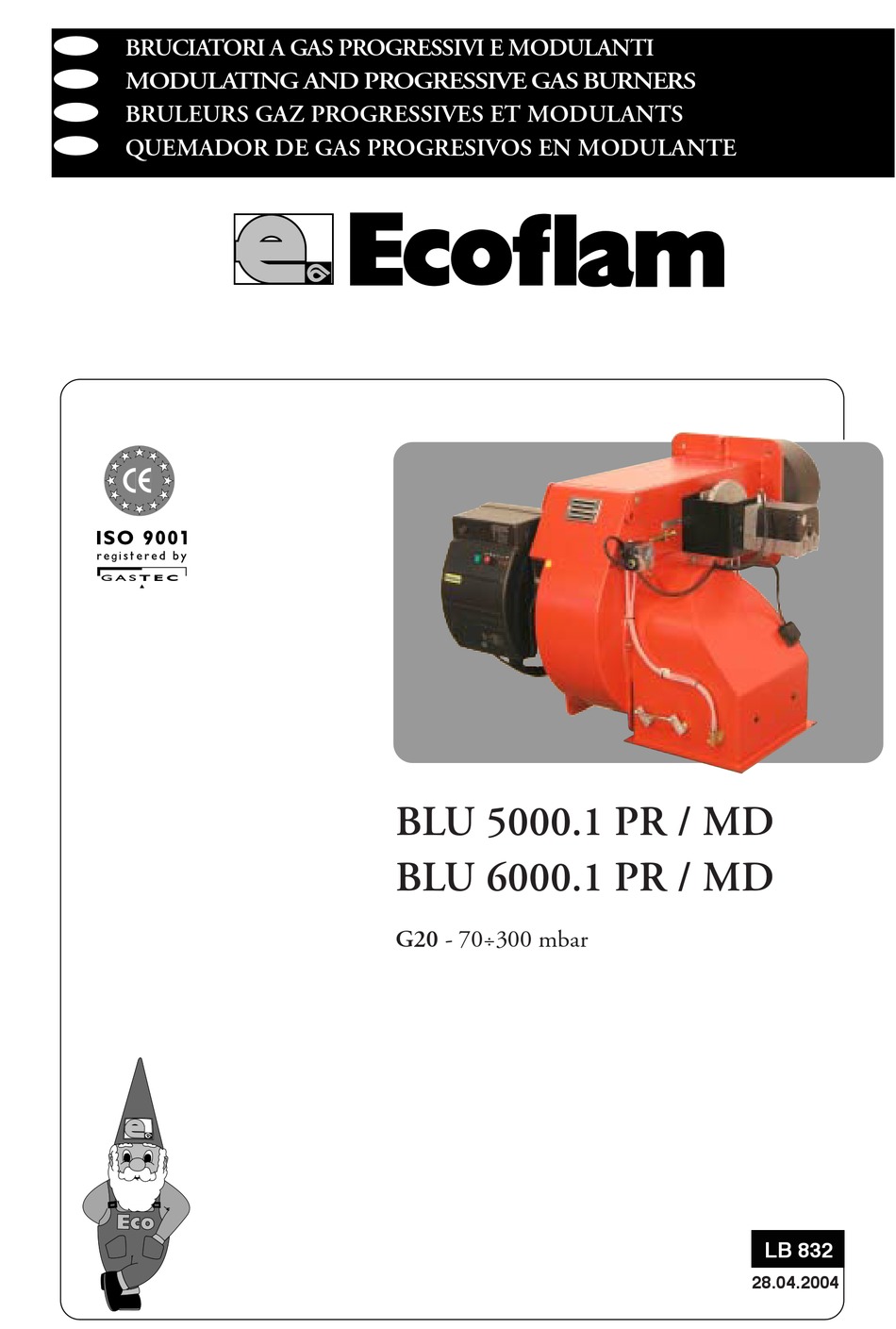

A BRUCIATORI A GAS PROGRESSIVI E MODULANTI
B MODULATING AND PROGRESSIVE GAS BURNERS
C BRULEURS GAZ PROGRESSIVES ET MODULANTS
D QUEMADOR DE GAS PROGRESIVOS EN MODULANTE
G A S T E C
BLU 5000.1 PR / MD
BLU 6000.1 PR / MD
G20 - 70÷300 mbar
LB 832
28.04.2004

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blu 5000.1 PR and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ecoflam Blu 5000.1 PR

Summary of Contents for Ecoflam Blu 5000.1 PR

  • Page 1 B MODULATING AND PROGRESSIVE GAS BURNERS C BRULEURS GAZ PROGRESSIVES ET MODULANTS D QUEMADOR DE GAS PROGRESIVOS EN MODULANTE G A S T E C BLU 5000.1 PR / MD BLU 6000.1 PR / MD G20 - 70÷300 mbar LB 832...

  • Page 2: Working Fields

    B LB 832 BLU 5000.1 - 6000.1 PR / MD Technical data Blu 5000.1 PR Blu 6000.1 PR Blu 5000.1 MD Blu 6000.1 MD Thermal power max. 5.000 5.800 5.000 5.800 kcal/h 4.310.000 5.000.000 4.310.000 5.000.000 Thermal power min. 1.200 1.500...

  • Page 3: Electrical Connections

    LB 832 BLU 5000.1 - 6000.1 PR / MD B CONNECTION TO THE GAS PIPELINE Once connected the burner to the gas pipeline, it is necessary to control that this last is perfectly sealed. Also verify that the chimney is not obstructed. Open the gas cock and carefully bleed the piping through the pressure gauge connector, then check the pressure value trough a suitable gauge.
  • Page 4 B LB 832 BLU 5000.1 - 6000.1 PR / MD LANDIS & STAEFA, Model LFL1.622 OPERATING CYCLE Ref. Description Duration Operating cycle in the event of Ciclo di funzionamento Duration Waiting time for confirmation Ciclo di funzionamento normale Normal operating cycle ignition failureNormal operating cycle in mancanza di fiamma all'accensione of air pressure...

  • Page 5: Air Adjustment

    LB 832 BLU 5000.1 - 6000.1 PR / MD B AIR ADJUSTMENT Part. 1 Part. 3 SELECTOR COMMUTATORE AUTO Part. 2 operating elements locked in an intermediate 0 = bloccaggio degli apparati per il position funzionamento in una posizione intermadia operation on maximum capacity = funzionamento alla massima potenza operation on minimum capacity...

  • Page 6: Combustion Adjustment

    The adjustments must be carried out by qualified and skilled techni- cians authorised by Ecoflam S.p.A. FIRING HEAD SETTING...
  • Page 7 LB 832 BLU 5000.1 - 6000.1 PR / MD B IONIZATION CURRENT The ionization current is checked by inserting a microam- meter with an end of scale of 50 µA (d.c.) in series with the min. 6 µA ionization probe. A faulty position of the electrode can lead to a reduction in the ionization current and cause a safety cut-out of the burner due to a flame detection failure.
  • Page 8 B LB 832 BLU 5000.1 - 6000.1 PR / MD RWF 40 MICROPROCESSOR REGULATOR Description of display and keys on the RWF 40 microprocessor regulator The figure shows the normal display indicating Display: the actual value and the programmed set analog input 1 point, and equally important, (actual value)

  • Page 9: Setting Parameters

    LB 832 BLU 5000.1 - 6000.1 PR / MD B SETTING PARAMETERS When the burner is ignited all displays of the regulator light up. The set point display will blink for about 10 seconds. The value in the upper field of the display (red) indicates the actual value. The value in the lower field of the display (green) indicates the set point currently programmed.
  • Page 10 B LB 832 BLU 5000.1 - 6000.1 PR / MD PARAMETERIZATION 12.5 -2.5 17.5 -7.5 -12.5 -17.5 External temperature (iC) PROBE CONNECTION DIAGRAMS Connection for probe Cod. S721 Cod. RWF 40 Cod. QAE2..(passive probe) S720/1 S731 Water probe S731/1 Configuration code S731/2 C111 = 9XXX 1 2 3 4...
  • Page 11 LB 832 BLU 5000.1 - 6000.1 PR / MD B C111 – C112 INPUT CONFIGURATION INDICATIONS Analog input 1 (actual value) Analog Input 3 (external temperature) Pt1000, 2-wire, Landis & Staefa IEC 751 No function (probe not active) FT-TP/… (passive probe) External probe Pt 1000, 2-wire, QAC22 (passive probe) Ni1000, 2-wire, Landis &...

  • Page 12: Annual Check

    B LB 832 BLU 5000.1 - 6000.1 PR / MD WHEN REPLACEMENT IS NECESSARY, PROCEED AS SHOWN IN FIGURES A-B-C BELOW Insert the RWF 40 regulator through the relative opening in the electrical panel (A). Insert the fixing anchors and screws into the slots, and secure the unit to the panel (B). To open the regulator, squeeze the cover from the ends as shown, and lift out (C).
  • Page 13 LB 832 BLU 5000.1 - 6000.1 PR / MD B PARAMETERS Parameter Display Ecoflam setting Ecoflam setting Ecoflam setting (passive probe) (passive probe) (active probe) QAE22 FT-TP/1000 QBE620-P... Limit value of limit comparator Switching differential for limit comparator HYSt Proportional band Pb.1...
  • Page 14 ABCD LB 832 BLU 5000.1 - 6000.1 PR / MD pag.50...

  • Page 15: Modulating Unit

    B LB 832 BLU 5000.1 - 6000.1 PR / MD Modulair P 5000.1 Modulair P 6000.1 N° DESCRIPTION BLU PR 5000.1 BLU PR 6000.1 code code 1 - AIR PRESSURE SWITCH DUNGS LGW10 A2P Q120 Q120 2 - AIR INTAKE SET GRPA100 GRPA100 3 - PLUG WIELAND...
  • Page 16 LB 832 BLU 5000.1 - 6000.1 PR / MD ABCD pag.55...
  • Page 17 ABCD LB 832 BLU 5000.1 - 6000.1 PR / MD pag.56...
  • Page 18 LB 832 BLU 5000.1 - 6000.1 PR / MD ABCD pag.57...
  • Page 19 ABCD LB 832 BLU 5000.1 - 6000.1 PR / MD pag.58...
  • Page 20 Ecoflam S.p.A. via Roma, 64 - 31023 RESANA (TV) - Italy - tel. 0423/715345 r.a. telefax 0423-715444 (Italy 480009 - Export 480873, 715538). http://www.ecoflam.it - e-mail: ecoflam@ecoflam.it...

This manual is also suitable for:

Blu 6000.1 prBlu 5000.1 mdBlu 6000.1 md
