Aruba 5000 and 6000 Series Fan Tray
Assembly Installation Notes

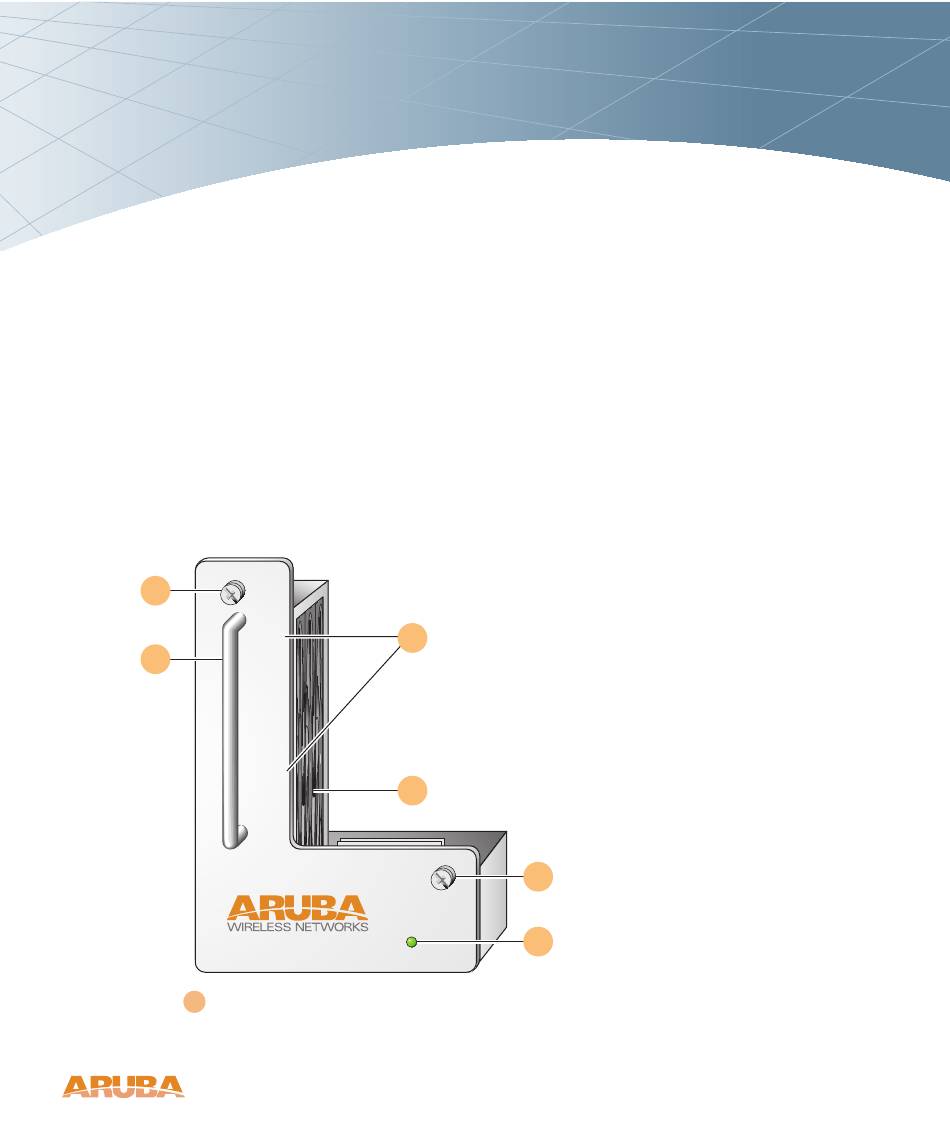

This guide describes the general features and physical
characteristics of the Aruba 5000 and 6000 series Mobility
Controller fan tray assemblies (HW- FT), and provides instructions
for replacing the module.
The fan tray slot is located on the left side of the Mobility
Controller chassis and extends from the front of the chassis to
the back.
1
SLOT
2
2
SLOT
0
1
Module Fastening Screws
Aruba 5000 and 6000 Series Fan Tray Assembly Installation Notes
4
5
1
3
FAN
STATUS
1

Advertisement

loading

Summary of Contents for Aruba 5000 Series

  • Page 1 The fan tray slot is located on the left side of the Mobility Controller chassis and extends from the front of the chassis to the back. SLOT SLOT STATUS Module Fastening Screws Aruba 5000 and 6000 Series Fan Tray Assembly Installation Notes...
  • Page 2 Fan Tray Assembly: Installation Notes These captive screws are used for securing the module into the switch fan tray slot. Module Handle This handle is used for removing or inserting the module into the switch chassis. —Do not use the fan tray handle to lift or move the Mobility AUTION Controller.
  • Page 3: Replacing A Fan Tray

    When the module is fully disengaged from the backplane, power to the working fans is lost and they will gradually stop spinning Aruba 5000 and 6000 Series Fan Tray Assembly Installation Notes...
  • Page 4 Fan Tray Assembly: Installation Notes 3. Disengage the fan tray. Grasp the module handle firmly and draw the fan tray forward from its slot. There may be moderate resistance as the module comes free from its connections with the chassis backplane, but do not use excessive force. When the module is fully disengaged from the backplane, power to the working fans is lost and they will gradually stop spinning —The fans will continue to spin for a short while, even though...
  • Page 5 Use the screwdriver to push in and tighten both of the fastening screws on the faceplate of the newly installed fan tray. Rotate the screws clockwise until moderate resistance is felt, but do not over-tighten. Aruba 5000 and 6000 Series Fan Tray Assembly Installation Notes...
  • Page 6 Fan Tray Assembly: Installation Notes Part 0500047-02 May 2005...
