The S3500's capabilities can be expanded with the addition of an uplink module. The S3500 uplink module
provides SFP and SFP+ uplink ports to connect to other devices.
Minimum Software Requirements
The uplink module requires ArubaOS 7.0.2 or later.
Device Overview
The S3500 plink modules may be hot swapped without damaging the module or S3500 chassis but requires a
reboot of the chassis to initialize the module. Similarly, removing an uplink on a live switch is service
affecting and all traffic processing will stop until the replacement uplink module is installed and operating.
The Uplink Module and optics are not shipped with the S3500 and must be purchased separately.

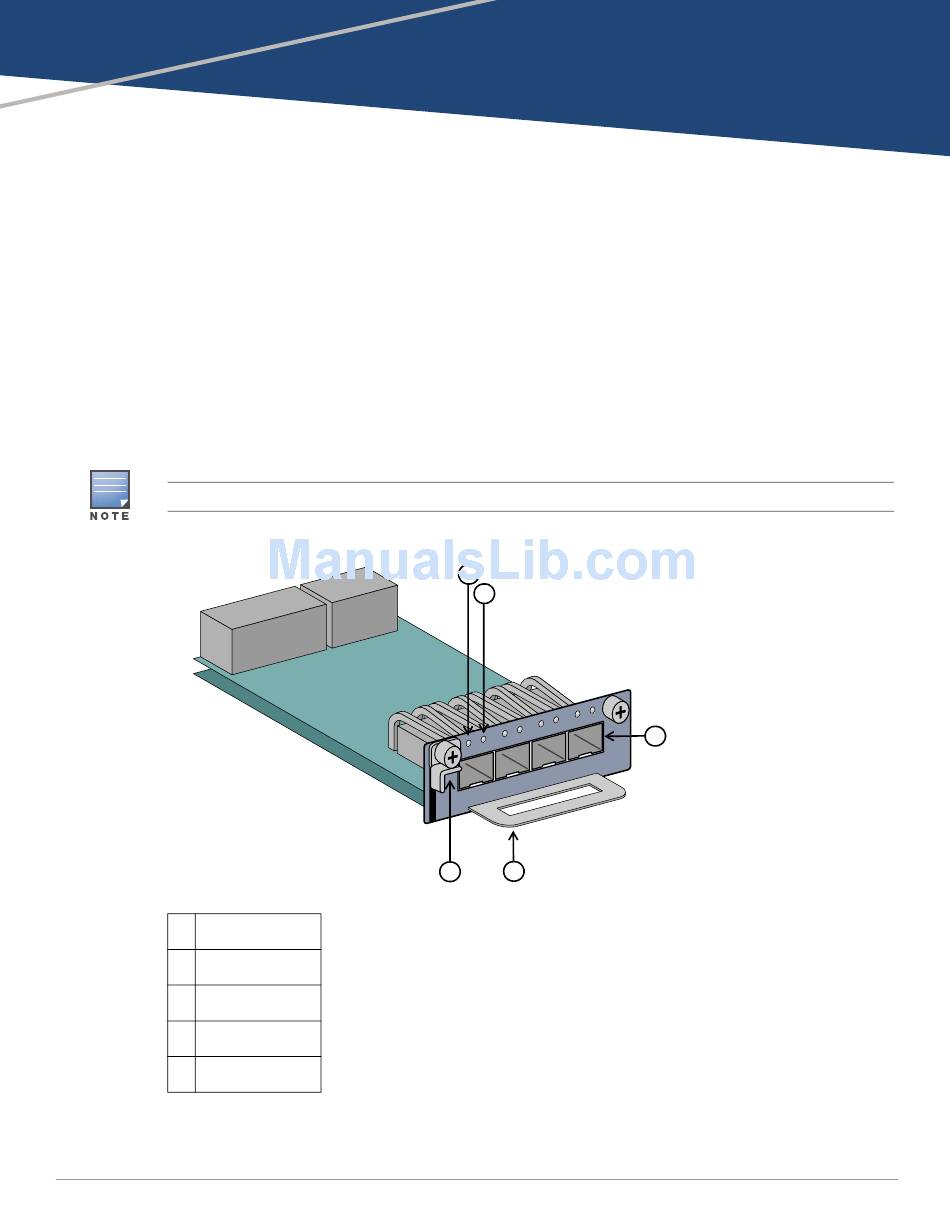

Figure 1 Uplink Module
1
LINK/ACT LED
2
Status LED
3
10GBASE-X Port
4
Latch
5
Handle
0510997-03
|
September 2014
Aruba S3500 Series Uplink Module
1
2
3
2
1
0
5
4
Installation Guide
3
1
Advertisement
Table of Contents
Related Manuals for Aruba S3500 Series Uplink Module
Summary of Contents for Aruba S3500 Series Uplink Module
-
Page 1: Device Overview
Aruba S3500 Series Uplink Module Installation Guide The S3500’s capabilities can be expanded with the addition of an uplink module. The S3500 uplink module provides SFP and SFP+ uplink ports to connect to other devices. Minimum Software Requirements The uplink module requires ArubaOS 7.0.2 or later. -
Page 2: 10Gbase-X Port
Aruba does not guarantee proper functionality of non- approved, third party optics when used in an Aruba Mobility Access Switch. For a complete list of Aruba approved optics, contact your Aruba sales representative. -
Page 3: Direct Attach Cables
3m Direct Attach Cable; 10G SFP+ for stacking SFP+, Direct Attach, 5M 5m Direct Attach Cable; 10G SFP+ for stacking SFP+, Direct Attach, 7M 7m Direct Attach Cable; 10G SFP+ for stacking Aruba S3500 Series Uplink Module | Installation Guide... -
Page 4: Installing An Uplink Module
4. Slide the uplink module into the mobility access switch. 5. Lift the left hinged captive screw and secure the uplink module by tightening both screws with a Phillips Head screwdriver. Figure 2 Uplink Module Installation Aruba S3500 Series Uplink Module | Installation Guide... -
Page 5: Removing Uplink Module
Figure 3 Installing an SFP Removing an SFP To remove an SFP module: 1. Open and release the latch on the SFP module. 2. Pull and remove the module from the port. Aruba S3500 Series Uplink Module | Installation Guide... -
Page 6: Connecting An Lc Fiber Optic Cable
1. Depress to release the latch on the cable and simultaneously pull the cable out of the port. Figure 4 Connecting an LC Fiber Optic Cable M E N U E N T E P O W S T A T S T A C Aruba S3500 Series Uplink Module | Installation Guide... -
Page 7: Contacting Support
Wireless Security Incident http://www.arubanetworks.com/support-services/security-bulletins/ Response Team (WSIRT) Support Email Addresses Americas, APAC, and EMEA support@arubanetworks.com WSIRT Email wsirt@arubanetworks.com Please email details of any security problem found in an Aruba product. Aruba S3500 Series Uplink Module | Installation Guide... - Page 8 VPN client devices constitutes complete acceptance of liability by that individual or corporation for this action and indemnifies, in full, Aruba Networks, Inc. from any and all legal actions that might be taken against it with respect to infringement of copyright on behalf of those vendors.
