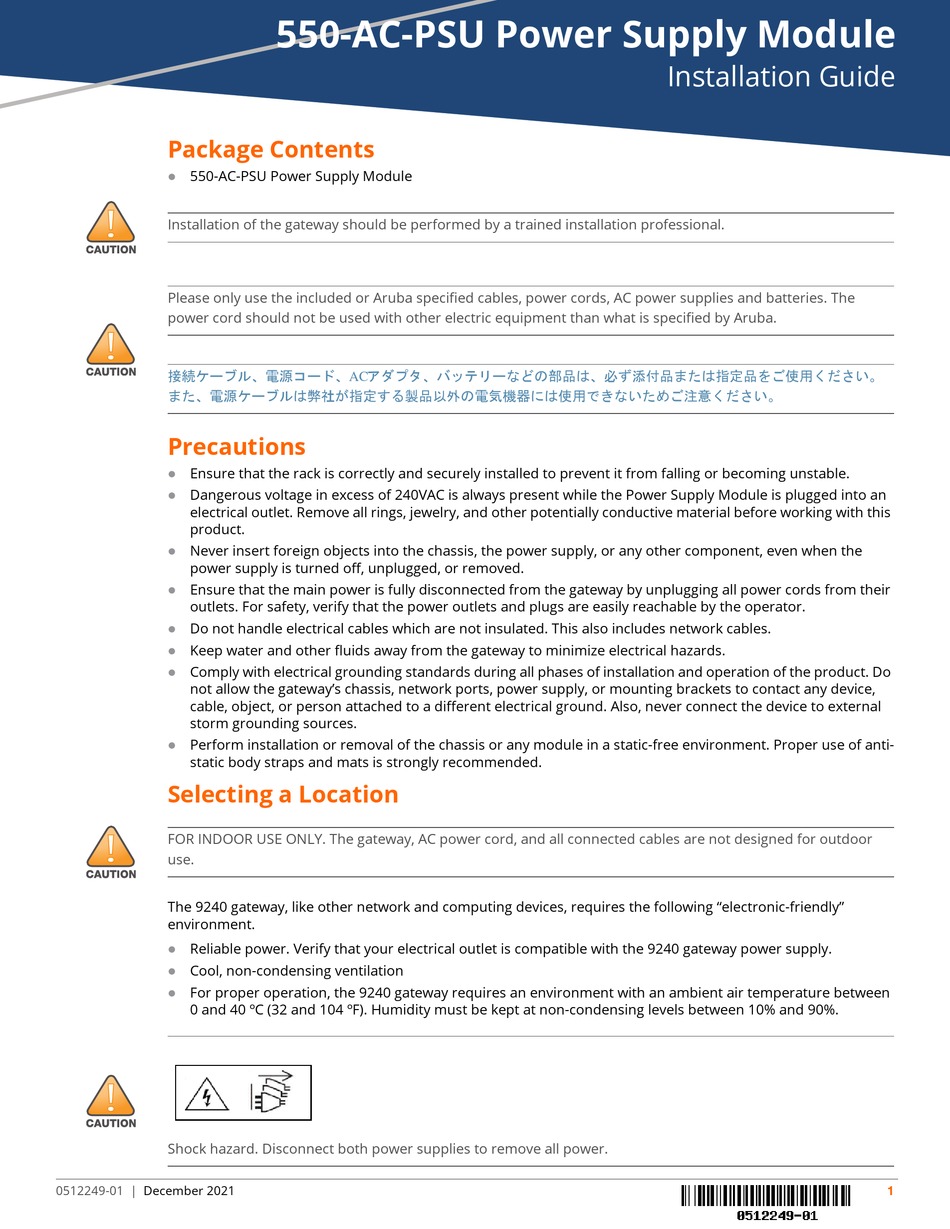

Aruba 550-AC-PSU Installation Manual

Package Contents

550-AC-PSU Power Supply Module

!
Installation of the gateway should be performed by a trained installation professional.
Please only use the included or Aruba specified cables, power cords, AC power supplies and batteries. The
power cord should not be used with other electric equipment than what is specified by Aruba.
!
接続ケーブル、電源コード、AC アダプタ、バッテリーなどの部品は、必ず添付品または指定品をご使用ください。
また、電源ケーブルは弊社が指定する製品以外の電気機器には使用できないためご注意ください。

Precautions

Ensure that the rack is correctly and securely installed to prevent it from falling or becoming unstable.

Dangerous voltage in excess of 240VAC is always present while the Power Supply Module is plugged into an

electrical outlet. Remove all rings, jewelry, and other potentially conductive material before working with this
product.
Never insert foreign objects into the chassis, the power supply, or any other component, even when the

power supply is turned off, unplugged, or removed.
Ensure that the main power is fully disconnected from the gateway by unplugging all power cords from their

outlets. For safety, verify that the power outlets and plugs are easily reachable by the operator.
Do not handle electrical cables which are not insulated. This also includes network cables.

Keep water and other fluids away from the gateway to minimize electrical hazards.

Comply with electrical grounding standards during all phases of installation and operation of the product. Do

not allow the gateway's chassis, network ports, power supply, or mounting brackets to contact any device,
cable, object, or person attached to a different electrical ground. Also, never connect the device to external
storm grounding sources.
Perform installation or removal of the chassis or any module in a static-free environment. Proper use of anti-

static body straps and mats is strongly recommended.

Selecting a Location

!
FOR INDOOR USE ONLY. The gateway, AC power cord, and all connected cables are not designed for outdoor
use.
The 9240 gateway, like other network and computing devices, requires the following "electronic-friendly"
environment.
Reliable power. Verify that your electrical outlet is compatible with the 9240 gateway power supply.

Cool, non-condensing ventilation

For proper operation, the 9240 gateway requires an environment with an ambient air temperature between

0 and 40 ºC (32 and 104 ºF). Humidity must be kept at non-condensing levels between 10% and 90%.
!
Shock hazard. Disconnect both power supplies to remove all power.
0512249-01 | December 2021
550-AC-PSU Power Supply Module
Installation Guide
1
