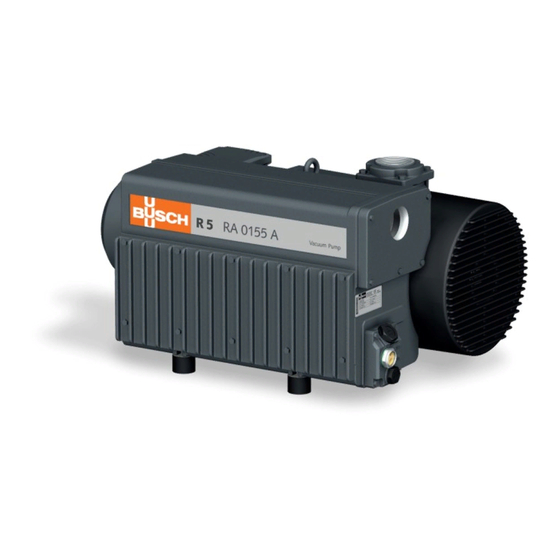

BUSCH R 5 Series Instruction Manual
Oil-lubricated rotary vane vacuum pumps
Hide thumbs
Also See for R 5 Series:
- Instruction manual (68 pages) ,
- Instructions manual (52 pages) ,
- Installation and operation manual (24 pages)
Related Manuals for BUSCH R 5 Series
Summary of Contents for BUSCH R 5 Series
- Page 1 Instruction Manual Oil-Lubricated Rotary Vane Vacuum Pumps RA 0155 A Ateliers Busch S.A. Zone industrielle, 2906 Chevenez Switzerland 0870562170/A0005_en / Original instructions / Modifications reserved 19/02/2019...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety........................... 3 2 Product Description ..................... 4 2.1 Operating Principle....................5 2.2 Application ......................5 2.3 Start Controls ....................... 5 2.4 Optional Accessories..................... 5 2.4.1 Gas Ballast Valve..................5 2.4.2 Inlet Filter ....................5 2.4.3 Level and Temperature Switch ..............6 3 Transport ........................ -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description Suction connection Motor terminal box Discharge connection Directional arrow Oil fill plug Exhaust filter Oil sight glass Nameplate Oil drain plug Oil filter Eye bolt Axial fan Gas ballast valve Oil separator NOTE Technical term. In this instruction manual, we consider that the term ‘machine’... -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. The machine is intended for the placement in a non-potentially explosive environment. The machine is designed for indoor installation, in case of outdoor installation, ask your Busch representative in order to take specific precautions. -
Page 6: Level And Temperature Switch
3 | Transport 2.4.3 Level and Temperature Switch The level switch with integrated temperature switch monitors the oil level and the oil temperature. It has one level switch point and two temperature switch points. The machine must be stopped when the oil level is too low or, depending on the oil type, when the oil reaches a certain temperature, see Oil [► 23]. -
Page 7: Storage
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 8: Connecting Lines / Pipes
Depending on the specific order, other connection dimensions may apply. If the machine is used as part of a vacuum system: • Busch recommends the installation of an isolation valve in order to prevent the oil from flowing back to the vacuum system. -
Page 9: Discharge Connection
Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. For oil type and oil capacity see Technical Data [► 23] and Oil [► 23]. 1x o-ring, part no.: 0486 000 590... -
Page 10: Fitting The Coupling
(see Technical Data [► 23]). Seek advice from your Busch representative. • Make sure that the power supply for the motor is compatible with the data on the nameplate of the motor. -
Page 11: Wiring Diagram Three-Phase Motor
• Busch recommends installing a D-curve circuit breaker. • Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. -
Page 12: Electrical Connection Of The Monitoring Devices
5.6 Electrical Connection of the Monitoring Devices NOTE In order to prevent potential nuisance alarms, Busch recommends that the control system is configured with a time delay of at least 20 seconds. 5.6.1 Wiring Diagram Level and Temperature Switch (Optional) Part no.: 0652 563 748... -
Page 13: Commissioning
Commissioning | 6 Commissioning NOTICE The machine can be shipped without oil. Operation without oil will ruin the machine in short time! • Prior to commissioning, the machine must be filled with oil, see Filling Oil [► 9]. CAUTION During operation the surface of the machine may reach temperatures of more than 70°C. -
Page 14: Conveying Condensable Vapours
• Do not use incompatible solvents to clean the machine. CAUTION Failing to properly maintain the machine. Risk of injuries! Risk of premature failure and loss of efficiency! • Respect the maintenance intervals or ask your Busch representative for service. 14 / 28 0870562170_RA0155A_A0005_IM_en... -
Page 15: Maintenance Schedule
In case of a gas ballast valve (GB) being in- stalled: • Clean the gas ballast valve. • Contact Busch for an inspection. Every 5 years If required, overhaul the machine. * Service interval for synthetic oil, shorten the interval when using mineral oil, contact Busch Service 7.2 Oil Level Inspection... -
Page 16: Oil And Oil Filter Change
NOTICE Use of an inappropriate oil. Risk of premature failure! Loss of efficiency! • Only use an oil type which has previously been approved and recommended by Busch. 1x o-ring, part no.: Drain pan 0486 000 505 16 / 28... - Page 17 Maintenance | 7 Busch genuine spare parts 1x oil filter (OF), part. no.: 0531 000 002 Oil filter wrench For oil type and oil capacity see Technical Data [► 23] and Oil [► 23]. 1x o-ring, part no.: 0486 000 590 Check oil level...
-
Page 18: Exhaust Filter Change
7 | Maintenance 7.4 Exhaust Filter Change 10 mm wrench 2x exhaust filters (EF) Busch genuine spare parts 2x exhaust filter (EF), art. no.: 0532 140 159 1x flat gasket part no.: 0480 560 234 10 mm wrench 18 / 28... -
Page 19: Overhaul
• Decontaminate the machine as much as possible and state the contamination status in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’. (Form downloadable from www.buschvacuum.com) Decommissioning •... -
Page 20: Spare Parts
Use of non-Busch genuine spare parts. Risk of premature failure! Loss of efficiency! • The exclusive use of Busch genuine spare parts and consumables is recommended for the correct functioning of the machine and to validate the warranty. Spare parts kit Description Part no. -
Page 21: Troubleshooting
• Clean the inlet screen (IS). suction connection. tially clogged. The inlet filter cartridge (op- • Replace the inlet filter tional) is partially clogged. cartridge. Internal parts are worn or • Repair the machine (con- damaged. tact Busch). 0870562170_RA0155A_A0005_IM_en 21 / 28... - Page 22 (EF) and the o-rings. The float valve (FV) does • Check float valve and the not work properly. oil return line, repair it if necessary (contact Busch). Abnormal oil consumption. Oil leaks. • Replace seals (contact Busch). The float valve (FV) does •...
-
Page 23: Technical Data
Switch point / Trip signal Oil temperature [°C] In case of unfavourable ambient temperature, other oil viscosities may be used. Please consult your Busch repre- sentative for more details. To know which oil has been filled in the machine, please refer to the nameplate (NP). -
Page 24: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-mark affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-mark. - Page 25 Note...
- Page 26 Note...
- Page 27 Note...
- Page 28 Colombia Korea South Africa www.buschvacuum.com/co www.buschvacuum.com/kr www.buschvacuum.com/za info@buschvacuum.co busch@busch.co.kr info@busch.co.za Czech Republic Malaysia Spain www.buschvacuum.com/cz www.busch.com.my www.buschvacuum.com/es info@buschvacuum.cz busch@busch.com.my contacto@buschiberica.es Denmark Mexico Sweden www.buschvacuum.com/dk www.buschvacuum.com/mx www.buschvacuum.com/se info@busch.dk info@busch.com.mx info@busch.se www.buschvacuum.com 0870562170/A0005_en / © Ateliers Busch S.A.
