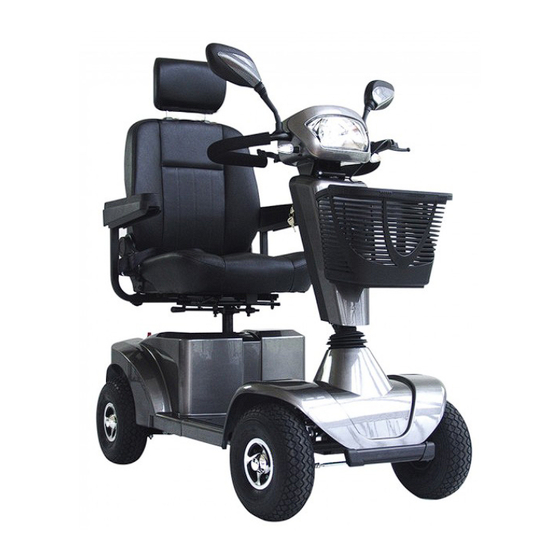

MOBILITY SCOOTER
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Admiral Mk3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Clearwell Mobility Admiral Mk3

  • Page 1 Admiral Mk3 MOBILITY SCOOTER USER MANUAL...
  • Page 2: Table Of Contents

    If in doubt we suggest you consult a healthcare professional for advice. Modifications Any modifications to the specifications will invalidate the warranty and may render the vehicle dangerous. Clearwell Mobility Technical Support Helpline 01444 253 300 www.clearwellmobility.co.uk...
  • Page 3: Dashboard Controls

    Dashboard Controls Before driving your vehicle it is important to familiarise yourself with the controls. Do not attempt to drive the vehicle until you have understood these instructions Battery Level 50% Speed Gauge Switch Profile Speed Control Charger Socket Lights Tiller Control Lever Adjuster...
  • Page 4 Freewheeling the Scooter Freewheeling the Scooter There may be occasions where you may wish to move the vehicle without power. To do this there is a freewheel lever. Push the red button down and push the lever forward into the free-wheel position. •...
  • Page 5: Adjustments

    Adjustments Armrest Angle/Depth Adjustment Angle Adjustment When getting seated on the scooter, lift the armrest up. When riding, always have the armrest in the down position. The scooter armrests are angle adjustable for user comfort. The adjustment bolt is found under the armrest body.
  • Page 6 Adjustments Seat Height Adjustment Remove the battery cover to access the seat height adjustment bolts and remove the seat stem fixing bolt. The seat can then be adjusted to a range of 100mm. When the desired height is reached, replace the bolt through the seat stem hole and tighten to a torque of 25 Nm.
  • Page 7 Adjustments Tiller Adjustment CAUTION: Do not adjust the tiller while the scooter is being driven as serious injury could happen if you lose control. The angle of the tiller can be adjusted for getting on and off the scooter and for achieving a comfortable driving position.
  • Page 8: Battery Charging

    The red light will illuminate to show that the power is on. If the red light flashes there is a fault - contact Clearwell Mobility. The yellow light will illuminate to show the batteries are charging.
  • Page 9: Simple Maintenance

    Simple Maintenance Simple Maintenance Maintenance should only be carried out by a qualified engineer. You should check the following before each journey: 1. Visually check the tyres for damage and their pressure. Caution: Not maintaining your tyre pressures will affect stability and range. 2.
  • Page 10: Hazards

    Hazards Getting on and off the Vehicle • When getting on, make sure that the vehicle is on level ground and not in freewheel mode. • Ensure that the armrests are secure. • When getting off, park on level ground, turn off the ignition and remove the key before leaving your seat.
  • Page 11 • Your vehicle is fitted with pneumatic tyres to give you a smoother ride over uneven ground. • Repair of tyres or wheels should be carried out by Clearwell Mobility. • If you are worried about punctures contact Clearwell for advice on puncture proofing your tyres.
  • Page 12: Troubleshooting

    Troubleshooting Troubleshooting Guide This table is a guide to fault finding. The battery gauge indicates the status of the control system as well as the charge remaining in your battery. If the battery gauge flashes one or more LED’s it indicates that there is a system fault. No.
  • Page 13 • Check that none of the plugs and sockets have become loose or disconnected. • Check the condition of the battery and charge it if necessary. WARNING: • If the safety circuits continue to operate, switch off and do not try to use the scooter. • Contact Clearwell Mobility. @clearwellmobility @clearwellmob...
  • Page 14: Warranty

    5. The model and serial number of your scooter (These can be found on the label Clearwell Mobility shall not be liable for stuck to the outside of your scooter pack). any indirect or consequential damages.
  • Page 15: Technical Specification

    Technical Specification ISO 7176-15 MIN. MAX. COMMENTS Overall length 1345mm 1345mm Standard configuration Overall width 655mm 655mm Standard configuration Total mass (with batteries) 117kg 117kg Standard configuration Mass of the heaviest part 35kg Seat Static stability downhill 8° 150kg user Static stability uphill 8°...
  • Page 16: Clearwell Mobility

    Clearwell Mobility 21 Albert Drive Burgess Hill West Sussex RH15 9TN www.clearwellmobility.co.uk Call Us: 01444 253 300...
