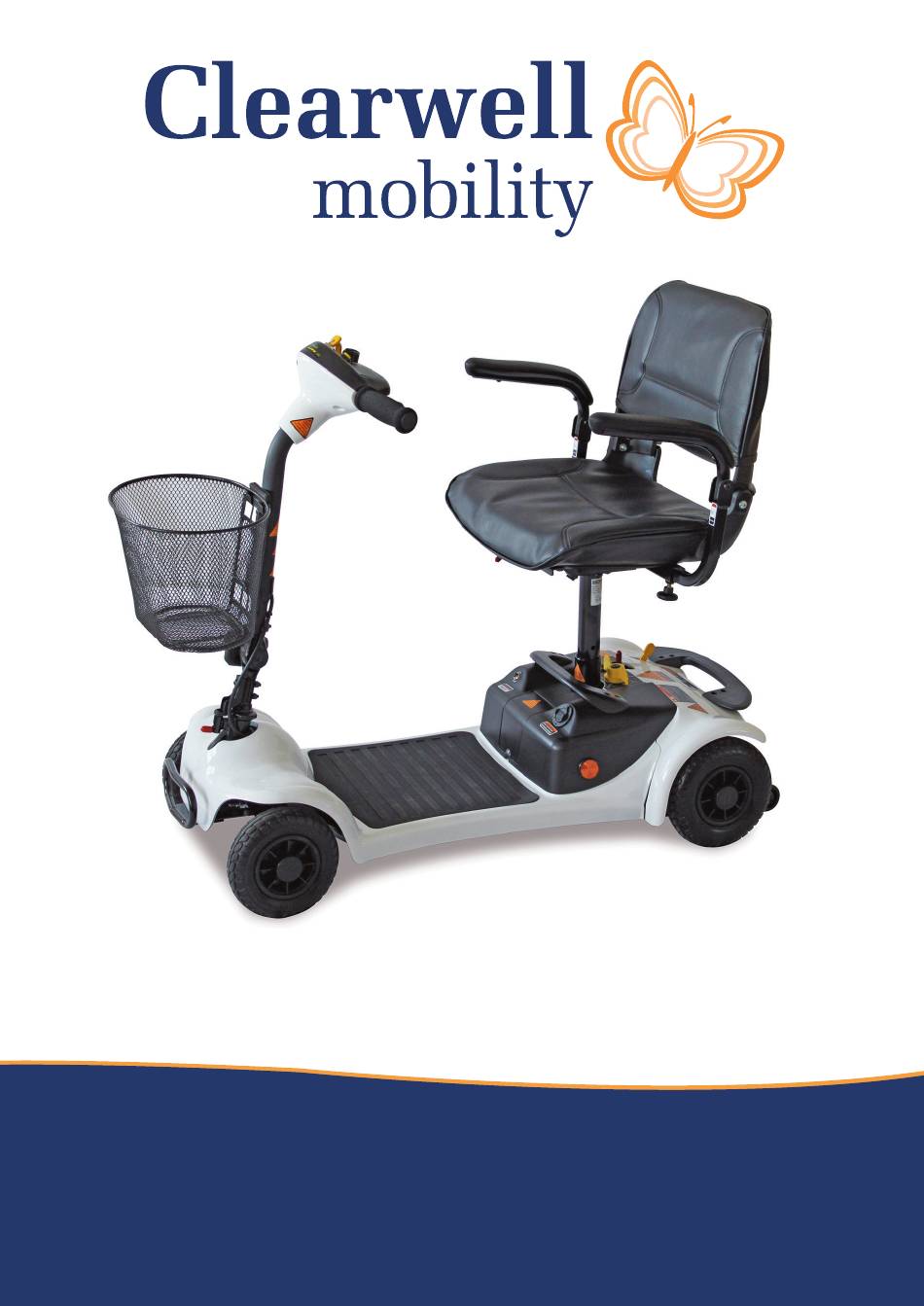

- Page 1 Skipper MOBILITY SCOOTER USER MANUAL...
-
Page 2: Table Of Contents
If in doubt we suggest you consult a healthcare professional for advice. Modifications Any modifications to the specifications will invalidate the warranty and may render the vehicle dangerous. Clearwell Mobility Technical Support Helpline 01444 253 300 www.clearwellmobility.co.uk... -
Page 3: Dashboard Controls
Do not pull both levers at once. NOTE: The controls can be changed for customers with a left-hand bias. Please contact Clearwell Mobility. Battery Indicator: When the scooter is powered up, this meter indicates the approximate battery strength. - Page 4 Freewheeling the Scooter Freewheeling the Scooter When the vehcile is switched off the brakes are automatically engaged. This is called failsafe braking. Also, if the batteries are flat, the brakes are applied. There may be occasions where you may wish to move the vehicle without power. To do this there is a freewheel device fitted.
-
Page 5: Tiller Adjustments
Tiller Adjustments Tiller Adjustment Knob The tiller can be folded down for transporting. Tiller Rotate the adjustment knob anticlockwise Adjustment sufficiently for the retaining serrations to Knob allow the tiller to move. Lower the tiller so that it is in the lowest position. Rotate the knob clockwise and ensure that it is tight and the retaining serrations are fully engaged. -
Page 6: Disassembly
Disassembly Disassembly You can disassemble the scooter into five main pieces: the basket, the front section, rear section, seat and battery box as shown: Disassembly Procedure 1. Remove the basket- Stand in front of the scooter and lift basket directly upwards off the basket bracket. -
Page 7: Assembly
Assembly Assembly NOTE: Ensure you have sufficient room when disassembling or assembling your scooter to move the parts around. No tools are required to disassemble or assemble your scooter. Connecting Front & Rear Sections • Carefully align the pins so that they are positioned over the rear cups and press down on the front chassis until it clicks into place. -
Page 8: Battery Charging
Battery Charging Charging Your Batteries • Turn off the scooter power and remove the key. • Slide away the cover of the charger outlet point positioned on the front of the battery box as shown. • Put the charger plug into the outlet point. -
Page 9: Simple Maintenance
Simple Maintenance Simple Maintenance Maintenance should only be carried out by a qualified engineer. You should check the following before each journey: 1. Visually check the tyres for damage. 2. Check the steering moves freely. 3. The tiller knob is tight. 4. -
Page 10: Hazards
Hazards Getting On and Off the Vehicle • When getting on, make sure that the vehicle is on level ground and not in freewheel mode. • Ensure that the armrests are secure. • When getting off, park on level ground, turn off the ignition and remove the key before leaving your seat. - Page 11 Hazards Stowed Transport •Follow the disassembly instructions to correctly dismantle your scooter for stowed transport. Transportation in Vehicles • This scooter is not suitable to use as a seat in a vehicle, it has not been crash tested. • For transportation by road, rail, sea or air, please contact the appropriate carrier. Turning •...
-
Page 12: Troubleshooting
Charger connected (maybe switched on or off). At Clearwell Mobility, we are here to help you but we can only do this if you give us as much information as possible. Call us on 01444 253 300 and explain exactly what the problem is, recounting as much detail as possible, including the indicated faults. - Page 13 • Steering is loose or wobbly when • Check for tyre damage or punctures. driving. • Damaged steering- Contact Clearwell Mobility. • Loose seat- contact Clearwell Mobility. •Vehicle behaves erratically when • Electronic Problems- Contact Clearwell Mobility.
-
Page 14: Warranty
5. The model and serial number of your scooter (These can be found on the label Clearwell Mobility shall not be liable for stuck to the outside of your scooter pack). any indirect or consequential damages. -
Page 15: Technical Specification
Technical Specification SPEC Wheelchair type and class Class A Department of transport class Class 2 Maximum weight of user 18st (113kg) Overall dimensions fully assembled 1020x510x850mm (40x20x33") Dimensions seat removed tiller folded 1020x510x480mm (40x20x19") Mass (weight) including batteries 41kg (90lbs) Battery voltage and capacity 12V Ah qty 2 Mass (weight) of battery pack... -
Page 16: Clearwell Mobility
Clearwell Mobility 21 Albert Drive Burgess Hill West Sussex RH15 9TN www.clearwellmobility.co.uk Call Us: 01444 253 300...
