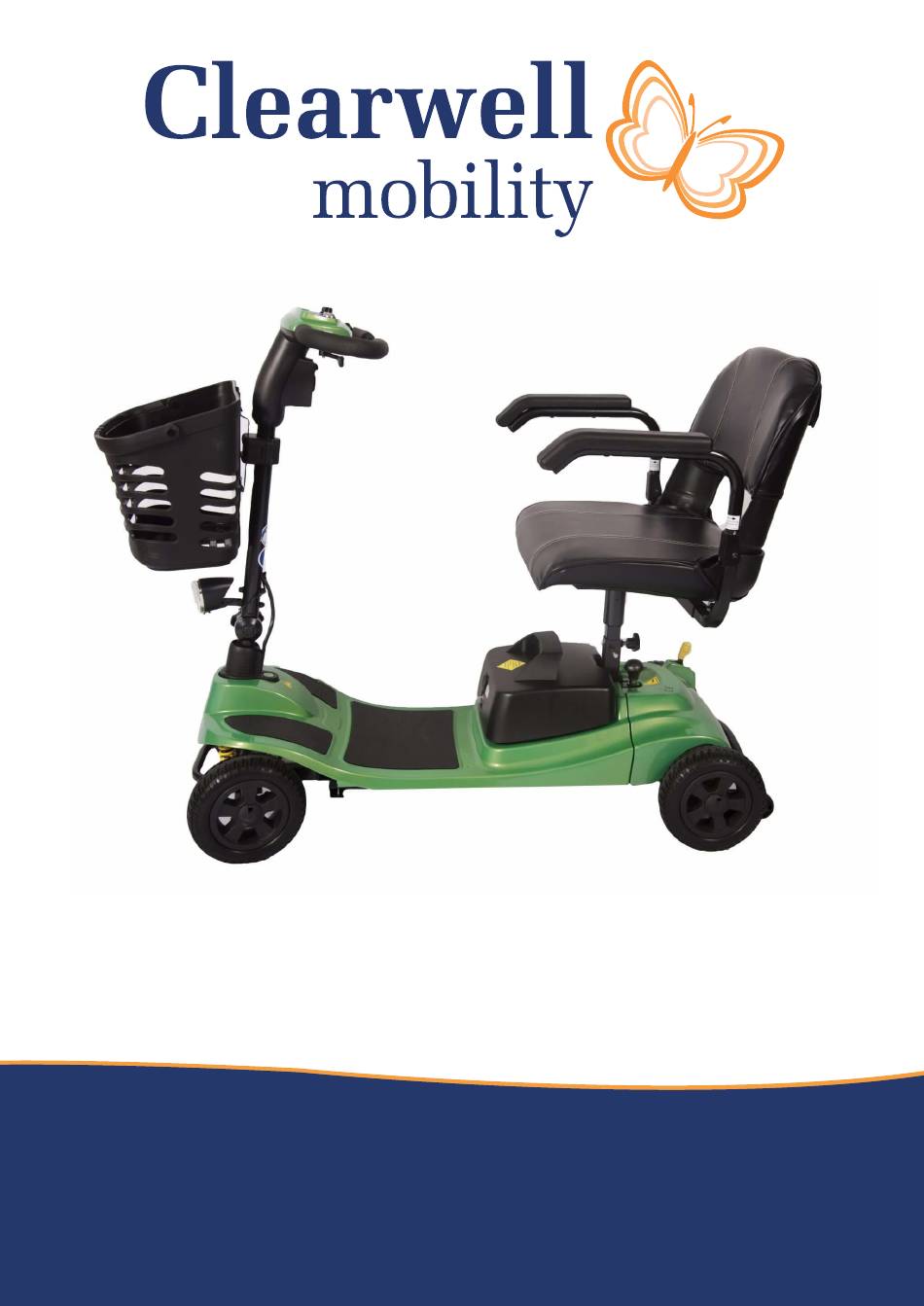

- Page 1 Aguna Comfort MOBILITY SCOOTER USER MANUAL...
-
Page 2: Table Of Contents
If in doubt we suggest you consult a healthcare professional for advice. Modifications Any modifications to the specifications will invalidate the warranty and may render the vehicle dangerous. Clearwell Mobility Technical Support Helpline 01444 253 300 www.clearwellmobility.co.uk... -
Page 3: Dashboard Controls
Dashboard Controls Before driving your vehicle it is important to familiarise yourself with the controls. Do not attempt to drive the vehicle until you have understood these instructions Light Switch Charging Port Fuse To Turn On: Insert the key and turn clockwise. To Turn Off: Turn key back anti-clockwise. -
Page 4: Freewheeling The Scooter
Freewheeling the Scooter Freewheeling the Scooter The freewheel lever is located on the rear section of the scooter. Before driving the scooter needs to be put into the drive position. The two positions are: 1. Drive Mode- is indicated by 'Closed'. Pull the lever backwards for this position. 2. -
Page 5: Tiller Adjustments
Tiller Adjustments Tiller Adjustment Tiller Adjustment Knob Knob • Loosen the tiller adjustment knob by turning anti-clockwise- see diagram. • Raise the tiller to the required position. • Fully tighten the adjustment knob by turning clockwise making sure the tiller is securely positioned with the teeth fully engaged together. -
Page 6: Disassembly
Disassembly Disassembly You can disassemble the scooter into five main pieces: the basket, the front section, rear section, seat and battery box as shown: Basket Front Section Rear Seat Battery Box Section Disassembly Procedure 1. Remove the seat- Stand behind the scooter and fold the seat back down, then with both hands lift seat directly upwards. -
Page 7: Assembly
Assembly Assembly NOTE: Ensure you have sufficient room when disassembling or assembling your scooter to move the parts around. No tools are required to disassemble or assemble your scooter. Connecting Front & Rear Sections • Connect the front and rear section by aligning them and gently lifting the front section onto the two hooks of the rear section. -
Page 8: Battery Charging
Battery Charging Charging Your Batteries • Turn off the scooter power and remove the • Slide away the cover of the charger outlet point positioned on the front of the battery box or tiller charging port as shown. • Put the charger plug into the outlet point. •... -
Page 9: Simple Maintenance
Simple Maintenance Simple Maintenance Maintenance should only be carried out by a qualified engineer. You should check the following before each journey: 1. Visually check the tyres for damage. 2. Check the steering moves freely. 3. The tiller knob is tight. 4. -
Page 10: Hazards
Hazards Getting On and Off the Vehicle • When getting on, make sure that the vehicle is on level ground and not in freewheel mode. • Ensure that the armrests are secure. • When getting off, park on level ground, turn off the ignition and remove the key before leaving your seat. - Page 11 Hazards Stowed Transport •Follow the disassembly instructions to correctly dismantle your scooter for stowed transport. Transportation in Vehicles • This scooter is not suitable to use as a seat in a vehicle, it has not been crash tested. • For transportation by road, rail, sea or air, please contact the appropriate carrier. Turning •...
-
Page 12: Troubleshooting
Speed pot error Contact Clearwell Mobility for assistance Motor voltage error Contact Clearwell Mobility for assistance Other internal errors Contact Clearwell Mobility for assistance... - Page 13 Troubleshooting Symptom Possible Solution Scooter does not move 1. Key switch is not 'ON' 1. Turn key switch 'ON' 2. Main circuit breaker tripped 2. Reset circuit breaker 3. Brake release lever in 'Freewheel 3. Place lever in 'Drive Mode' Mode' 4.
-
Page 14: Warranty
5. The model and serial number of your scooter (These can be found on the label Clearwell Mobility shall not be liable for stuck to the outside of your scooter pack). any indirect or consequential damages. -
Page 15: Technical Specification
Technical Specification SPEC Weight capacity 21st (135kg) Overall length 41" (103.5cm) Overall width 19" (49cm) Overall height 36" (92cm) Total mass (without batteries) 35.5kg Total mass (with batteries) 44kg Mass of the heaviest part 14.5kg Max angle capacity 10º Max. speed forward 4mph (6km/h) Suspension Full active front &... -
Page 16: Clearwell Mobility
Clearwell Mobility 21 Albert Drive Burgess Hill West Sussex RH15 9TN www.clearwellmobility.co.uk Call Us: 01444 253 300...
