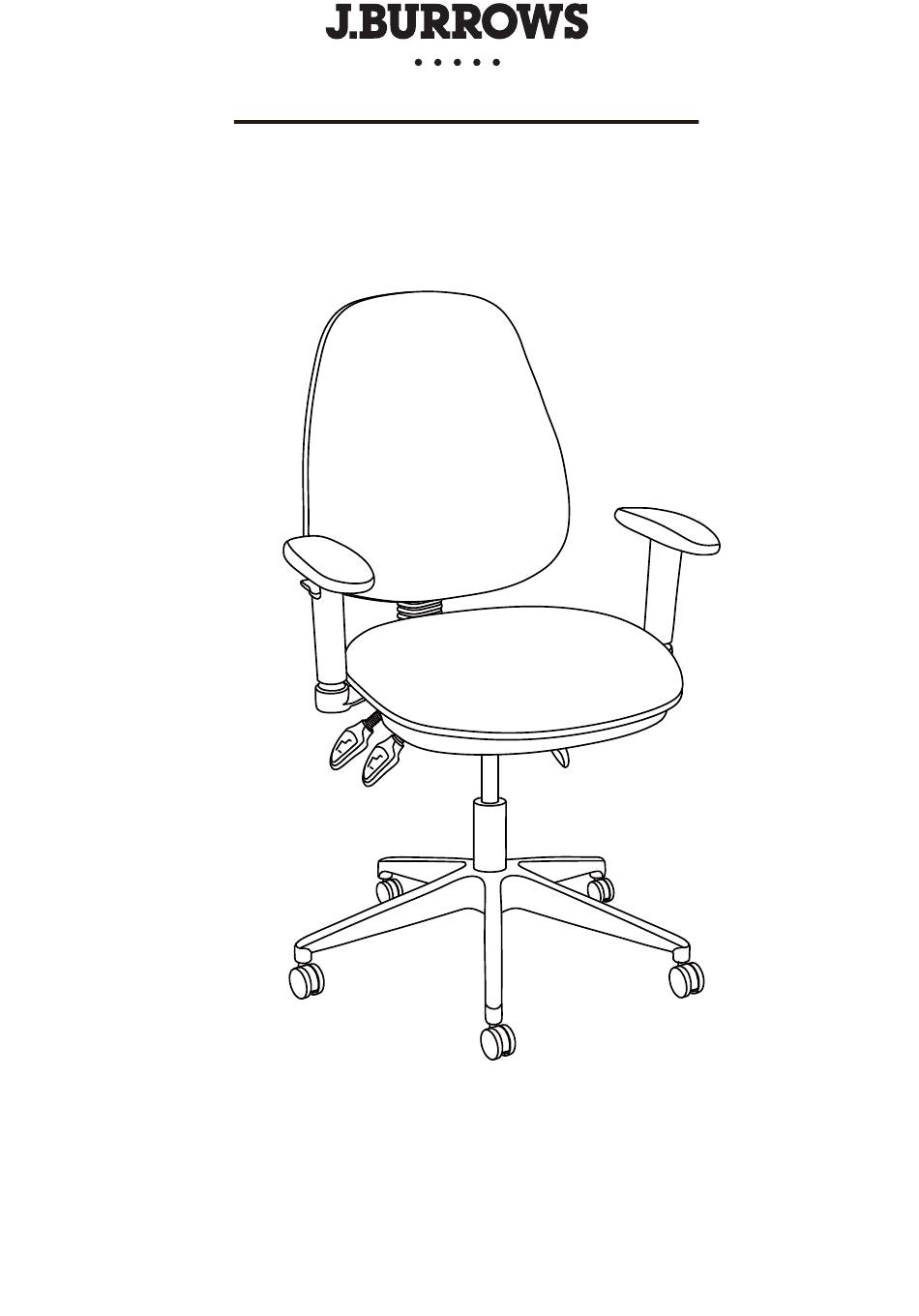

- Page 1 Assembly Instructions LEVO DELUXE CHAIR JBLEVDHBBK/JBLEVDHBGY This chair has a load rating of 135kg Page 1...
- Page 2 Assemble Item On A Clean Flat Surface C-L / C-R Please check you have all hardware components before assembling. If you are missing any hardware components please contact My Zone on Tel: (03) 9310 3011 or Email: hardware@myzone.net.au Please ensure you have the name of the item, store purchased from, hardware part required and quantity. Please retain your receipt to validate warranty .
- Page 3 Step 1 Note: Turn the Star Base (E) upside down. Press the Casters (F) into holes at the end of each leg. Turn the Star Base (E) upright and insert Gas Lift (D) into the center hole of Star Base (E). Step 2 Torque 5 Nm Note: Align the Armrests (C-L / C-R) on the bottom of the Seat Cushion (B).
- Page 4 Step 3 Note: Place assembled seat on the Gas Lift (D). Push down firmly until connection is secure. Step 4 Note: Check to make sure the knob on the rear left side of the Seat Plate is loose before proceeding with this step.Align Back Cushion (A) with Seat Cushion (B) by GENTLY inserting the back support plate into the rear hole of the Seat Plate as shown.
- Page 5 Step 5 Your Levo Deluxe Chair is now complete and ready for use. IMPORTANT NOTE: Periodically check and re-tighten screws. Officeworks Superstores Pty Ltd 236-262 East Boundary Road East Bentleigh 3165 Australia Page 5...
- Page 6 LEVO DELUXE CHAIR FEATURES * Back Tilt - Sitting in the chair pull lever up. Move your upper body fore and aft to a comfortable position. BACK When comfortable lock the TILT position by pushing the lever down. * Chair Height Adjustment - To increase chair height pull lever upward while lifting body weight slightly off...
